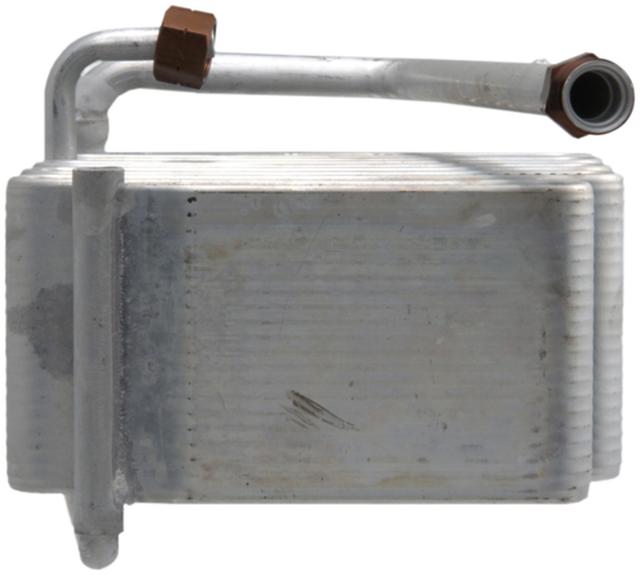

Serpentine Evaporator Core

Serpentine Evaporator Core
Four Seasons
Part # 54169

Serpentine Evaporator Core

Ships in 24 hours

12 In Stock

Serpentine Evaporator Core

Warranty

$71.86

Warranty

Warranty

12 month/24K Miles

QTY

Bryan specialist avatar

Have a Question? Ask a Specialist

Bryan specialist avatar

Have a Question? Ask a Specialist

USA flag heart shaped

All parts come with easy returns, full warranty and money back guarantee.

Built on trust. Stocked and shipped from our U.S. distributors.

Learn More
Learn More
USA flag heart shaped

All parts come with easy returns, full warranty and money back guarantee.

Built on trust. Stocked and shipped from our U.S. distributors.

Learn More
Learn More

Four Seasons 54169 A/C Evaporator Core Details:

Serpentine Evaporator Core

Our products are engineered and tested to provide years of trouble free operation. Backed by over 50 years of mobile a/c experience, fix it once and fix it right with Four Seasons.

Application specific design

Contains gaskets, o-rings, or seals to properly replace the product

Core design meets or exceeds OE performance and efficiency

Optimized refrigerant flow

Four Seasons 54169 A/C Evaporator Core Product Details:

Thickness2.85
Width9.250
Height10.25
Inlet Fitting GenderFemale
Outlet Fitting GenderMale
Inlet Fitting TypeFemale O-Ring
Outlet Fitting TypeMale Insert O-Ring
Depth2.85
Core Depth Fraction2-13/16
Core Depth MM72.39
Core Height Fraction10-1/4
Core Height MM260.35
Core Width Fraction9-1/4
Core Width MM235
DescriptionEvaporator Cores
MaterialAluminum
O-Ring A Number/Desc24608 / O-Ring
O-Ring A Quantity1
O-Ring B Number/Desc24610 / O-Ring
O-Ring B Quantity1
TypeSerpentine

Four Seasons 54169 A/C Evaporator Core Packaging:

Weight5.12 PG
Dimensional10.19 PG
Merchandising height8.5 IN
Merchandising width12.25 IN
Merchandising length16.25 IN
Shipping height8.5 IN
Shipping width12.25 IN
Shipping length16.25 IN

Four Seasons 54169 A/C Evaporator Core Vehicles:

1990 Mazda Miata
Sub Model:BaseEngine:Inline 4 1.6LBody Style:Convertible
1991 Mazda Miata
Sub Model:BaseEngine:Inline 4 1.6LBody Style:Convertible
1991 Mazda Miata
Sub Model:SEEngine:Inline 4 1.6LBody Style:Convertible
1992 Mazda Miata
Sub Model:BaseEngine:Inline 4 1.6LBody Style:Convertible
1993 Mazda Miata
Sub Model:BaseEngine:Inline 4 1.6LBody Style:Convertible
1993 Mazda Miata
Sub Model:LEEngine:Inline 4 1.6LBody Style:Convertible
1994 Mazda Miata
Sub Model:BaseEngine:Inline 4 1.8LBody Style:Convertible
1994 Mazda Miata
Sub Model:M EditionEngine:Inline 4 1.8LBody Style:Convertible
1995 Mazda Miata
Sub Model:BaseEngine:Inline 4 1.8LBody Style:Convertible
1995 Mazda Miata
Sub Model:M EditionEngine:Inline 4 1.8LBody Style:Convertible
1996 Mazda Miata
Sub Model:BaseEngine:Inline 4 1.8LBody Style:Convertible
1996 Mazda Miata
Sub Model:M EditionEngine:Inline 4 1.8LBody Style:Convertible
1997 Mazda Miata
Sub Model:BaseEngine:Inline 4 1.8LBody Style:Convertible
1997 Mazda Miata
Sub Model:M EditionEngine:Inline 4 1.8LBody Style:Convertible
1997 Mazda Miata
Sub Model:STOEngine:Inline 4 1.8LBody Style:Convertible
YearMakeModelSub ModelEngineBody StyleDrive TypeTransmission
1990MazdaMiataBaseInline 4 1.6LConvertibleAnyAny
1991MazdaMiataBaseInline 4 1.6LConvertibleAnyAny
1991MazdaMiataSEInline 4 1.6LConvertibleAnyAny
1992MazdaMiataBaseInline 4 1.6LConvertibleAnyAny
1993MazdaMiataBaseInline 4 1.6LConvertibleAnyAny
1993MazdaMiataLEInline 4 1.6LConvertibleAnyAny
1994MazdaMiataBaseInline 4 1.8LConvertibleAnyAny
1994MazdaMiataM EditionInline 4 1.8LConvertibleAnyAny
1995MazdaMiataBaseInline 4 1.8LConvertibleAnyAny
1995MazdaMiataM EditionInline 4 1.8LConvertibleAnyAny
1996MazdaMiataBaseInline 4 1.8LConvertibleAnyAny
1996MazdaMiataM EditionInline 4 1.8LConvertibleAnyAny
1997MazdaMiataBaseInline 4 1.8LConvertibleAnyAny
1997MazdaMiataM EditionInline 4 1.8LConvertibleAnyAny
1997MazdaMiataSTOInline 4 1.8LConvertibleAnyAny
