🔧 Tucson - Timing Drive Inspection

Your Tucson does not use a timing belt. The 2.4L gasoline engine uses an internal timing chain, which is designed to last much longer and is not a normal scheduled replacement item like a belt.

If you are hearing chain rattle, have cam/crank correlation codes, or suspect timing wear, this becomes a major engine repair involving valve timing, front cover removal, and engine support.

Difficulty Level: Advanced | Estimated Time: 8-12 hours

---

⚠️ Safety & Precautions

• ⚠️ Do not attempt to “replace a timing belt” on your Tucson because there is no belt to replace.
• ⚠️ Timing chain service requires precise camshaft and crankshaft alignment. Incorrect timing can cause engine damage.
• ⚠️ The engine must be supported before removing the right-side engine mount.
• ⚠️ Disconnect the negative battery cable before working near the starter, alternator, or engine wiring.
• ⚠️ Allow the engine to cool fully before removing covers, coolant hoses, or front engine components.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• 17mm socket
• 19mm socket
• 22mm socket
• 3/8-inch ratchet
• 1/2-inch breaker bar
• 3/8-inch torque wrench
• 1/2-inch torque wrench
• Serpentine belt tool
• Harmonic balancer puller (specialty)
• Engine support bar (specialty)
• Floor jack rated 3-ton minimum
• Jack stands rated 3-ton minimum
• Plastic trim clip remover
• Gasket scraper plastic
• Drain pan 10-quart minimum
• Shop towels
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Timing chain kit - Qty: 1
• Timing chain tensioner - Qty: 1
• Timing chain guides - Qty: 1 set
• Front timing cover sealant - Qty: 1
• Crankshaft front oil seal - Qty: 1
• Valve cover gasket - Qty: 1
• Engine oil 5W-20 synthetic - Qty: 5 quarts
• Oil filter - Qty: 1
• Engine coolant - Qty: As needed
• Serpentine belt - Qty: 1

---

📋 Before You Begin

• Park your Tucson on level ground, shift to Park, and set the parking brake.
• Let the engine cool completely. Hot coolant and oil can burn you badly.
• Disconnect the negative battery cable using a 10mm socket.
• Use a floor jack rated 3-ton minimum and jack stands rated 3-ton minimum if raising the vehicle.
• An engine support bar is a tool that holds the engine from above when an engine mount is removed.
• A harmonic balancer puller is a specialty puller used to remove the crankshaft pulley without damaging it.
• If your goal was normal maintenance, stop here: your Tucson does not have a serviceable timing belt interval.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm the timing chain repair is needed

• Use a scan tool to check for camshaft/crankshaft timing codes such as P0016, P0017, P0018, or P0019.
• Listen for a sharp rattle from the front of the engine during cold start.
• If there are no symptoms or codes, do not replace the timing chain as maintenance.
• Timing chains are not routine service parts.

Step 2: Disconnect the battery

• Use a 10mm socket to loosen the negative battery terminal nut.
• Move the negative cable away from the battery post so it cannot spring back.

Step 3: Raise and support the front of the vehicle

• Use a floor jack rated 3-ton minimum at the front center jacking point.
• Place jack stands rated 3-ton minimum under the proper front support points.
• Gently lower your Tucson onto the stands and shake the vehicle lightly to confirm it is stable.

Step 4: Remove lower shields and right splash shield

• Use a 10mm socket and plastic trim clip remover to remove the lower engine shield fasteners and clips.
• Remove the right front inner splash shield for access to the crankshaft pulley.

Step 5: Drain engine oil and coolant as needed

• Place a drain pan 10-quart minimum under the engine.
• Use a 17mm socket to remove the engine oil drain plug.
• Use a 3/8-inch torque wrench when reinstalling the oil drain plug and Torque to 35-45 Nm (26-33 ft-lbs).
• Drain coolant only if front cover components or hoses require removal.

Step 6: Remove the serpentine belt

• Use a serpentine belt tool to rotate the belt tensioner and relieve belt tension.
• Slide the belt off the pulleys and note the routing before removal.
• Take a photo before removing the belt.

Step 7: Support the engine

• Install the engine support bar across the upper body structure.
• Attach the support hook to a safe engine lifting point.
• Apply light tension only. Do not lift the engine hard.

Step 8: Remove the right engine mount

• Use a 14mm socket and 17mm socket to remove the right engine mount fasteners.
• Keep the bolts organized by location because lengths may differ.
• On reassembly, use a 1/2-inch torque wrench and tighten engine mount fasteners to the factory specification for your exact bolt location.

Step 9: Remove the crankshaft pulley

• Use a 22mm socket with a 1/2-inch breaker bar to loosen the crankshaft pulley bolt.
• Use a harmonic balancer puller (specialty) to remove the pulley from the crankshaft.
• Do not pry against the timing cover. It can crack or bend.

Step 10: Remove the valve cover

• Use a 10mm socket to remove ignition coil fasteners and valve cover bolts.
• Lift the valve cover carefully so the sealing surface is not scratched.
• Use a gasket scraper plastic to remove old gasket material.

Step 11: Remove the front timing cover

• Use a 10mm socket, 12mm socket, and 14mm socket to remove front cover bolts.
• Note bolt locations carefully because timing cover bolts can be different lengths.
• Separate the cover gently. Do not gouge the aluminum mating surfaces.

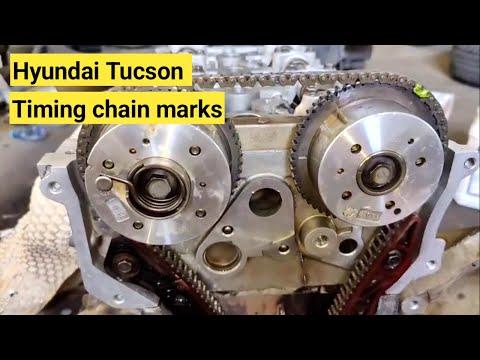

Step 12: Set the engine to Top Dead Center

• Top Dead Center means cylinder 1 is at the top of its compression stroke and the timing marks line up.
• Use a 22mm socket on the crankshaft bolt area to rotate the engine clockwise only.
• Align the crankshaft and camshaft timing marks before removing the chain.
• Do not rotate the crankshaft or camshafts independently once the chain is removed.

Step 13: Remove the timing chain tensioner, guides, and chain

• Use a 10mm socket and 12mm socket to remove the timing chain guide and tensioner bolts.
• Remove the timing chain only after confirming all timing marks are aligned.
• Compare the old chain and new chain before installation.

Step 14: Install the new timing chain kit

• Install the new guides using a 10mm socket or 12mm socket as required.
• Install the chain with colored links aligned to the camshaft and crankshaft timing marks.
• Install the new tensioner and release it only after all guides and chain marks are correctly positioned.
• Use a 3/8-inch torque wrench and tighten timing guide and tensioner bolts to the factory specification for the exact bolt size.

Step 15: Rotate the engine by hand

• Use a 22mm socket and 1/2-inch breaker bar to rotate the crankshaft clockwise two full turns.
• Stop immediately if you feel hard resistance.
• Recheck that the timing marks return to their correct positions.

Step 16: Reinstall the timing cover

• Use a gasket scraper plastic and shop towels to clean the sealing surfaces.
• Apply front timing cover sealant in the correct bead pattern.
• Install the cover within the sealant working time.
• Use a 10mm socket, 12mm socket, and 14mm socket to install bolts by hand first.
• Use a 3/8-inch torque wrench and tighten cover bolts in stages to the factory specification for each bolt size.

Step 17: Reinstall crankshaft pulley and engine mount

• Install the crankshaft pulley by hand, then install the center bolt using a 22mm socket.
• Use a 1/2-inch torque wrench and tighten the crankshaft pulley bolt to the factory specification.
• Reinstall the right engine mount using a 14mm socket and 17mm socket.
• Use a 1/2-inch torque wrench and tighten engine mount fasteners to the factory specification for each fastener location.

Step 18: Reinstall valve cover and serpentine belt

• Install the new valve cover gasket.
• Use a 10mm socket to reinstall the valve cover bolts.
• Use a 3/8-inch torque wrench and tighten valve cover bolts evenly to the factory specification.
• Use a serpentine belt tool to route the new belt over the pulleys.

Step 19: Refill fluids and reconnect battery

• Install the oil drain plug using a 17mm socket.
• Refill the engine with 5W-20 synthetic engine oil.
• Refill coolant if it was drained.
• Use a 10mm socket to reconnect the negative battery cable.

Step 20: Start and inspect

• Start the engine and let it idle.
• Watch for oil leaks, coolant leaks, warning lights, or abnormal rattling.
• Shut the engine off immediately if the engine runs rough or makes loud mechanical noise.

---

✅ After Repair

• Check engine oil level after the first warm-up and top off if needed.
• Check coolant level after the engine cools completely.
• Use a scan tool to clear any timing-related codes only after confirming proper operation.
• Road test gently, then inspect again for leaks.
• If timing codes return, do not keep driving. Recheck cam/crank timing alignment.

---
