🔧 Civic - Power Steering Pump Replacement

Your Civic does not use a belt-driven hydraulic power steering pump. It uses Electric Power Steering, often called EPS, which means steering assist is provided by an electric motor and control system instead of power steering fluid and a pump.

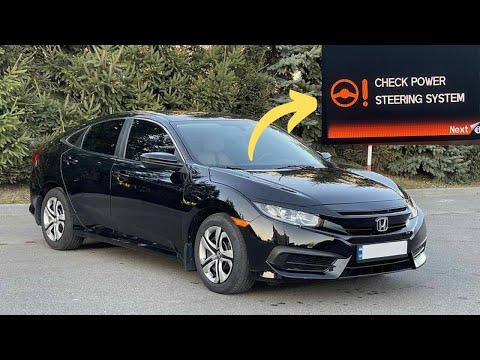

So there is no power steering pump to replace on your Civic. If the steering is heavy, noisy, or a warning light is on, the repair path is diagnosis of the EPS system, battery/charging system, steering rack, wiring, fuses, and steering angle/calibration data.

Difficulty Level: Advanced | Estimated Time: 0.5-2.0 hours for diagnosis

---

⚠️ Safety & Precautions

• ⚠️ Do not disconnect steering, column, or EPS connectors with the ignition ON.
• ⚠️ The EPS system can set fault codes if the battery is weak or disconnected incorrectly.
• ⚠️ If steering assist is lost while driving, park safely and avoid operating the vehicle until diagnosed.
• ⚠️ Battery disconnect may be required before inspecting EPS wiring. Always wait at least 3 minutes after disconnecting the negative terminal before unplugging steering-related connectors.
• ⚠️ Do not rotate the steering wheel with steering components disconnected. This can damage the cable reel/clock spring.

---

🔧 Required Tools

You'll need the following tools for this repair:

• OBD2 scan tool with Honda EPS capability (specialty)
• Digital multimeter
• 10mm socket
• 3/8-inch ratchet
• Battery terminal brush
• Trim clip removal tool
• Flashlight
• Insulated gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Power steering pump - Qty: 0; your Civic does not use one
• Battery terminal protectant - Qty: 1
• Replacement EPS fuse - Qty: As needed after testing
• Electric power steering rack assembly - Qty: 1 if diagnosed faulty
• 12V battery - Qty: 1 if battery fails load testing

---

📋 Before You Begin

• Park your Civic on level ground with the front wheels pointing straight ahead.
• Set the parking brake and turn the ignition OFF.
• A scan tool is a device that plugs into the diagnostic port under the dash and reads fault codes from vehicle computers.
• A multimeter is a handheld electrical tester used to check voltage, ground, and circuit continuity.
• If disconnecting the battery, use a 10mm socket to remove the negative battery terminal first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm the System Type

• Open the hood and use a flashlight to look around the engine accessory belt area.
• You will not find a hydraulic power steering pump, reservoir, or power steering fluid hoses on your Civic.
• The steering assist is controlled electronically through the EPS system.
• No fluid is used here.

Step 2: Check the Battery Condition

• Use a digital multimeter at the battery posts.
• With the engine OFF, a healthy battery should usually read about 12.4-12.7 volts.
• Start the engine and check voltage again with the digital multimeter.
• With the engine running, charging voltage should usually be about 13.5-14.8 volts.
• A weak battery or charging issue can cause EPS warning lights and heavy steering.

Step 3: Inspect Battery Terminals

• Put on safety glasses and insulated gloves.
• Use a 10mm socket and 3/8-inch ratchet to loosen the negative battery terminal if cleaning is needed.
• Use a battery terminal brush to clean corrosion from the battery posts and cable terminals.
• Reconnect the positive terminal first if removed, then the negative terminal.
• Tighten the battery terminal nuts snugly with the 10mm socket. Do not over-tighten.

Step 4: Scan the EPS System

• Plug the OBD2 scan tool with Honda EPS capability into the diagnostic port under the driver-side dash.
• Turn the ignition ON without starting the engine.
• Enter the EPS or Electric Power Steering menu on the scan tool.
• Read and save all EPS fault codes before clearing anything.
• If the scan tool offers freeze-frame data, save it. This shows what the vehicle was doing when the fault happened.

Step 5: Check EPS Fuses

• Turn the ignition OFF.
• Use a trim clip removal tool if needed to access fuse cover panels.
• Use a flashlight to inspect the under-hood and interior fuse boxes.
• Use a digital multimeter to test EPS-related fuses for power and continuity.
• Continuity means the fuse can pass electricity through it.
• Replace a fuse only with the same amperage rating if it tests blown.

Step 6: Inspect EPS Wiring and Connectors

• Disconnect the negative battery terminal with a 10mm socket before unplugging EPS connectors.
• Wait at least 3 minutes after disconnecting the battery.
• Use a flashlight to inspect visible steering rack and harness connectors from the engine bay and underbody area.
• Look for loose connectors, water intrusion, damaged wires, rodent damage, or corrosion.
• Use a digital multimeter only if you have the correct wiring diagram and know which terminals to test.
• Do not force connectors apart.

Step 7: Perform EPS Calibration if Required

• Reconnect the battery using a 10mm socket.
• Use the OBD2 scan tool with Honda EPS capability to check for calibration or neutral position learn functions.
• Follow the scan tool prompts exactly with the steering wheel centered.
• Do not move the steering wheel unless the scan tool tells you to.
• If calibration fails, the system needs deeper diagnosis before replacing parts.

Step 8: Decide the Correct Repair

• If battery voltage is low, replace or charge the battery before condemning the EPS system.
• If an EPS fuse blows again after replacement, do not keep installing fuses. There is a short circuit.
• If the scan tool shows internal motor, torque sensor, or steering rack faults, the likely repair may be the EPS steering rack assembly.
• If communication codes are present, diagnose power, ground, CAN wiring, and module communication before replacing parts.

---

✅ After Repair

• Clear EPS fault codes with the OBD2 scan tool with Honda EPS capability only after recording them.
• Start your Civic and confirm the EPS warning light turns off.
• With the vehicle parked, turn the steering wheel gently left and right to confirm assist feels normal.
• Road test at low speed first in a safe area.
• If the steering wheel is off-center, pulling, or warning lights return, stop and re-scan the EPS system.
• If the steering rack is replaced, a wheel alignment and EPS/steering angle calibration are required.

---

💰 DIY vs Shop Cost

Shop Cost: $150-$350 for EPS diagnosis; $1,500-$2,800 if EPS rack replacement is needed

DIY Cost: $0-$150 for basic checks; $900-$1,800 if replacing the EPS rack yourself

You Save: $150-$1,000 by doing diagnosis or repair yourself!

Shop labor rates vary but typically run $100-$150/hour. EPS diagnosis takes a shop approximately 1-2 hours, while steering rack replacement can take approximately 4-6 hours plus alignment.

---
