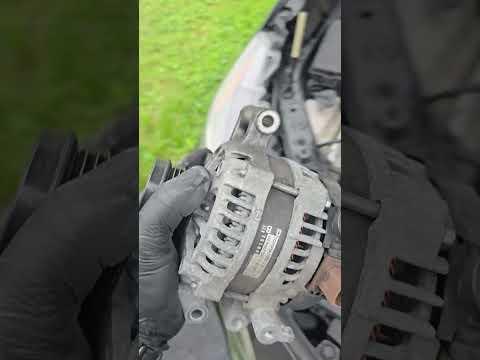

🔧 RAV4 - Engine Water Pump Replacement

The engine water pump circulates coolant through your RAV4’s 2.5L engine and radiator. Replacement is needed if the pump is leaking, noisy, or causing overheating. This job requires draining coolant, removing the drive belt, replacing the pump, then refilling and bleeding the cooling system.

Difficulty Level: Intermediate | Estimated Time: 2.5-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Only work on the cooling system when the engine is completely cold. Hot coolant can cause serious burns.
• ⚠️ Disconnect the negative battery cable before working near the belt and pulleys.
• ⚠️ Support your RAV4 securely with jack stands if you raise it. Never rely on a jack alone.
• ⚠️ Keep coolant away from pets and children. Used coolant is toxic and must be disposed of properly.
• ⚠️ The serpentine belt drives several accessories. Note the belt routing before removal.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• 19mm socket
• 3/8-inch ratchet
• 1/2-inch breaker bar
• 3/8-inch torque wrench
• 1/2-inch torque wrench
• 6-inch socket extension
• Trim clip removal tool
• Flat-blade screwdriver
• Serpentine belt tool (specialty)
• Drain pan 2-gallon minimum
• Coolant funnel spill-free kit (specialty)
• Plastic gasket scraper
• Shop towels
• Floor jack rated 3-ton minimum
• Jack stands rated 3-ton minimum
• Wheel chocks
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine water pump - Qty: 1
• Water pump gasket or O-ring - Qty: 1
• Toyota Super Long Life Coolant or equivalent pink premixed coolant - Qty: 2 gallons
• Serpentine belt - Qty: 1 if worn, cracked, glazed, or coolant-soaked
• Drain plug gasket - Qty: 1 if removed and equipped

---

📋 Before You Begin

• Park your RAV4 on level ground and let the engine cool fully.
• Set the parking brake and place wheel chocks behind the rear wheels.
• Open the hood and remove the engine cover if it blocks access.
• Use a phone to take a picture of the serpentine belt routing before removal.
• A serpentine belt is the single long belt that runs the alternator, water pump pulley area, A/C compressor, and other accessories.
• A torque wrench is a tool that tightens bolts to an exact tightness so parts are not damaged.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the Battery

• Use a 10mm socket to loosen the negative battery terminal clamp.
• Move the negative cable away from the battery post so it cannot spring back.
• Black cable comes off first.

Step 2: Raise and Secure the Front

• Place wheel chocks behind the rear wheels.
• Use a floor jack rated 3-ton minimum at the front center jacking point.
• Place jack stands rated 3-ton minimum under the proper front support points.
• Lower your RAV4 gently onto the stands and lightly shake the vehicle to confirm it is stable.

Step 3: Remove the Lower Engine Shield

• Put on safety glasses and nitrile gloves.
• Use a 10mm socket to remove the lower splash shield bolts.
• Use a trim clip removal tool to release plastic push clips without breaking them.
• Set the shield and fasteners aside in order.

Step 4: Drain the Coolant

• Place a drain pan 2-gallon minimum under the radiator drain area.
• Slowly remove the coolant reservoir cap by hand only after the engine is cold.
• Use a flat-blade screwdriver by hand if needed to open the radiator drain cock.
• Drain the coolant until flow slows to a drip.
• Close the radiator drain cock by hand. Do not overtighten it.

Step 5: Remove the Right Front Wheel Area Access if Needed

• If access is tight, use a 19mm socket and 1/2-inch breaker bar to loosen the right front wheel lug nuts before lifting more.
• Remove the wheel with the 19mm socket.
• Use a 10mm socket and trim clip removal tool to remove the right-side inner splash shield fasteners as needed.
• When reinstalling the wheel later, Torque to 103 Nm (76 ft-lbs).

Step 6: Release the Serpentine Belt Tension

• Locate the belt tensioner. The tensioner is a spring-loaded pulley arm that keeps the belt tight.
• Use a serpentine belt tool or 14mm socket with a 1/2-inch breaker bar on the tensioner bolt.
• Rotate the tensioner slowly to relieve belt tension.
• Slide the belt off the water pump pulley or easiest upper pulley.
• Slowly release the tensioner back to its resting position.
• Remove the belt if replacing it, or move it aside if reusing it.
• Take a belt photo first.

Step 7: Remove the Water Pump Pulley if Equipped Separately

• If the pulley blocks water pump bolts, use a 10mm socket or 12mm socket to loosen the pulley bolts.
• Hold the pulley carefully by hand while loosening the bolts.
• Remove the pulley and set it aside.
• On reassembly, tighten small pulley bolts evenly. Typical Toyota small pulley bolt torque is about Torque to 21 Nm (15 ft-lbs).

Step 8: Remove the Water Pump

• Place shop towels below the pump area to catch remaining coolant.
• Use a 10mm socket and 6-inch socket extension to remove the water pump mounting bolts.
• Use a 12mm socket if any larger bracket or pump fastener is fitted.
• Gently pull the water pump away from the engine.
• If it is stuck, tap lightly by hand or carefully work it loose. Do not pry hard against aluminum sealing surfaces.

Step 9: Clean the Sealing Surface

• Use a plastic gasket scraper to remove old gasket material from the engine side.
• Wipe the surface clean with shop towels.
• Do not use a metal scraper, power sanding disc, or anything that can gouge aluminum.
• Clean surfaces stop leaks.

Step 10: Install the New Water Pump

• Install the new water pump gasket or O-ring onto the new pump.
• Position the new engine water pump squarely against the engine.
• Start all bolts by hand first to avoid cross-threading.
• Use a 10mm socket and 3/8-inch ratchet to snug the bolts in a crisscross pattern.
• Use a 3/8-inch torque wrench to tighten the water pump bolts evenly. Typical Toyota small water pump bolt torque is about Torque to 10 Nm (89 in-lbs).
• If your replacement pump includes different instructions, follow the pump manufacturer’s supplied torque value.

Step 11: Reinstall the Pulley and Serpentine Belt

• If removed, place the pulley back onto the pump hub.
• Use a 10mm socket or 12mm socket to install the pulley bolts by hand first.
• Use a 3/8-inch torque wrench to tighten the pulley bolts evenly to Torque to 21 Nm (15 ft-lbs).
• Route the serpentine belt using your photo.
• Use the serpentine belt tool or 14mm socket with 1/2-inch breaker bar to rotate the tensioner.
• Slip the belt fully onto the last pulley, then slowly release the tensioner.
• Check every pulley groove by hand and sight. The belt must sit straight in each groove.

Step 12: Reinstall Shields and Wheel

• Use a trim clip removal tool by hand to line up plastic clips.
• Use a 10mm socket to reinstall splash shield bolts.
• If the wheel was removed, install it with a 19mm socket and snug the lug nuts in a star pattern.
• Lower your RAV4 using the floor jack rated 3-ton minimum.
• Use a 1/2-inch torque wrench and 19mm socket to tighten lug nuts to Torque to 103 Nm (76 ft-lbs).

Step 13: Refill the Cooling System

• Install a coolant funnel spill-free kit at the coolant reservoir or radiator fill point as applicable.
• Pour in Toyota Super Long Life Coolant or equivalent pink premixed coolant slowly.
• Fill to the proper level mark.
• Squeeze the upper radiator hose by hand several times to help move trapped air.
• Do not mix green universal coolant with Toyota pink coolant.

Step 14: Reconnect the Battery and Bleed Air

• Use a 10mm socket to reconnect the negative battery cable.
• Start the engine and set the heater to full hot with the blower on low.
• Let the engine idle while watching the coolant level in the coolant funnel spill-free kit.
• Add coolant as the level drops.
• Watch for steady cabin heat and stable temperature gauge behavior.
• Install the cap once bubbles stop and coolant level stabilizes.

Step 15: Check for Leaks

• Use safety glasses and inspect around the new water pump with a light.
• Look for coolant dripping or wetness around the gasket edge.
• Use shop towels to wipe any old coolant residue so new leaks are easier to spot.
• Shut the engine off and let it cool completely.
• Recheck the coolant level and top off if needed.

---

✅ After Repair

• ✅ Road test your RAV4 for 10-15 minutes while watching the temperature gauge.
• ✅ After the engine cools fully, recheck coolant level and add coolant to the proper mark if needed.
• ✅ Recheck the water pump area for leaks after the first drive and again after a few days.
• ✅ Confirm the serpentine belt runs straight and does not squeal.
• ✅ Dispose of old coolant at an approved recycling or hazardous waste facility.

---

💰 DIY vs Shop Cost

Shop Cost: $550-$900 (parts + labor)

DIY Cost: $120-$280 (parts only)

You Save: $430-$620 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4 hours.

---
