🔧 Civic - Water Pump Replacement

The water pump circulates coolant through your Civic’s 2.0L engine and radiator. If it leaks, makes noise, or causes overheating, it should be replaced before engine damage occurs.

Difficulty Level: Intermediate | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the cooling system when hot. Hot coolant can spray out and cause serious burns.
• ⚠️ Let the engine cool completely before draining coolant.
• ⚠️ Coolant is toxic. Keep it away from children, pets, and open containers.
• ⚠️ Support your Civic securely with jack stands if raising the front of the vehicle.
• ⚠️ Battery disconnect is recommended because your hands will be near the belt drive area.
• ⚠️ Do not run the engine with the serpentine belt removed.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• 19mm wrench
• 3/8-inch drive ratchet
• 3/8-inch drive extension 6-inch
• Torque wrench 5-80 ft-lb
• Flat-blade screwdriver 1/4-inch
• Trim clip removal tool
• Drain pan 2-gallon minimum
• Coolant funnel spill-free kit
• Plastic scraper
• Clean shop towels
• Floor jack 2-ton minimum
• Jack stands 2-ton minimum
• Wheel chocks
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine water pump - Qty: 1
• Water pump gasket or O-ring - Qty: 1
• Honda-compatible blue coolant premix - Qty: 2 gallons
• Serpentine belt - Qty: 1

---

📋 Before You Begin

• Park your Civic on level ground and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Let the engine cool completely.
• Open the hood and remove the key from the vehicle.
• Disconnect the negative battery cable using a 10mm socket.
• A serpentine belt is the long belt that drives engine accessories such as the alternator and water pump.
• A spill-free funnel is a funnel that locks onto the radiator or reservoir neck to help remove trapped air from the cooling system.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and Support the Front

• Use the floor jack to lift the front of your Civic at the front center jacking point.
• Place jack stands under the correct front support points.
• Lower the vehicle gently onto the jack stands.
• Keep the floor jack lightly touching the jacking point as backup support.

Step 2: Remove the Lower Splash Shield

• Use the trim clip removal tool to remove the plastic push clips from the lower engine splash shield.
• Use the 10mm socket to remove any 10mm bolts holding the shield.
• Lower the splash shield and set it aside.
• Keep clips in a small tray.

Step 3: Drain the Coolant

• Place the 2-gallon drain pan under the radiator drain area.
• Remove the coolant reservoir cap by hand.
• Use your hand or a 1/4-inch flat-blade screwdriver to open the radiator drain plug carefully.
• Let the coolant drain fully into the pan.
• Close the drain plug by hand after draining. Do not overtighten it.

Step 4: Remove the Serpentine Belt

• Use the 19mm wrench on the belt tensioner hex to rotate the tensioner and release belt tension.
• Slide the belt off one pulley while holding the tensioner released.
• Slowly let the tensioner return to its resting position.
• Remove the belt from the remaining pulleys by hand.
• Take a photo before removal.

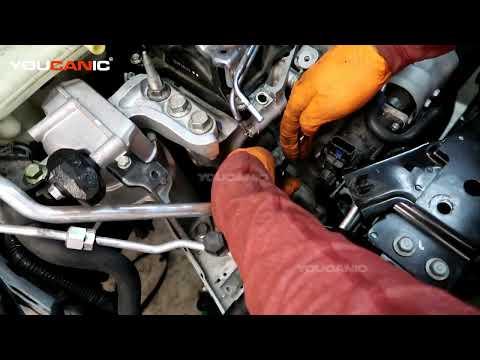

Step 5: Access the Water Pump

• Use the flashlight to locate the water pump on the belt side of the engine.
• Use the 10mm socket or 12mm socket to move any small brackets that block access, if equipped.
• Do not disconnect wiring unless it directly blocks pump removal.

Step 6: Remove the Water Pump Pulley Bolts

• Use the 10mm socket to loosen the water pump pulley bolts.
• If the pulley turns, press the old serpentine belt against the pulley by hand for grip while loosening.
• Remove the pulley bolts and set the pulley aside.

Step 7: Remove the Water Pump

• Place the drain pan under the water pump area.
• Use the 10mm socket and 12mm socket to remove the water pump mounting bolts.
• Gently pull the water pump away from the engine.
• If it sticks, tap the pump body lightly by hand. Do not pry into the sealing surface.
• Expect extra coolant to drain when the pump comes loose.

Step 8: Clean the Sealing Surface

• Use the plastic scraper to remove old gasket material from the engine-side sealing surface.
• Use clean shop towels to wipe the surface dry.
• Do not use a metal scraper, sandpaper, or power tool on the aluminum surface.
• The sealing surface must be clean and smooth before the new pump is installed.

Step 9: Install the New Water Pump

• Place the new gasket or O-ring onto the new water pump.
• Hold the water pump squarely against the engine.
• Start all mounting bolts by hand to avoid cross-threading.
• Use the torque wrench with the correct socket to tighten the water pump bolts evenly in a crisscross pattern.
• Torque to 12 Nm (9 ft-lbs)

Step 10: Reinstall the Water Pump Pulley

• Set the pulley onto the new water pump by hand.
• Start the pulley bolts by hand.
• Use the 10mm socket to snug the bolts evenly.
• Use the torque wrench with the 10mm socket to tighten the pulley bolts.
• Torque to 12 Nm (9 ft-lbs)

Step 11: Install the Serpentine Belt

• Route the new serpentine belt around the pulleys using your photo as a guide.
• Use the 19mm wrench to rotate the belt tensioner and release tension.
• Slide the belt over the final pulley.
• Slowly release the tensioner.
• Use the flashlight to confirm the belt ribs sit correctly in every pulley groove.

Step 12: Refill the Cooling System

• Install the spill-free coolant funnel onto the coolant fill point.
• Pour Honda-compatible blue coolant premix slowly into the funnel.
• Fill until the coolant level stays steady.
• Fill the coolant reservoir to the MAX mark.

Step 13: Bleed Air from the Cooling System

• Reconnect the negative battery cable using the 10mm socket.
• Torque to 5 Nm (44 in-lbs)
• Start the engine and set the cabin heater to full hot with the fan on low.
• Let the engine idle while watching the coolant level in the spill-free funnel.
• Add coolant as the level drops.
• Wait for warm air from the vents and for the radiator fan to cycle on.
• Shut the engine OFF and let it cool.
• Remove the spill-free funnel and install the cap securely by hand.

Step 14: Reinstall the Lower Splash Shield

• Raise the splash shield into position by hand.
• Use your hands to reinstall the plastic push clips.
• Use the 10mm socket to reinstall any 10mm bolts.
• Torque to 9 Nm (80 in-lbs)

Step 15: Lower the Vehicle

• Use the floor jack to raise your Civic slightly off the jack stands.
• Remove the jack stands by hand.
• Lower the vehicle slowly to the ground.
• Remove the wheel chocks.

---

✅ After Repair

• ✅ Check under your Civic for coolant leaks while the engine is idling.
• ✅ Watch the temperature gauge during the first test drive. Stop if it rises above normal.
• ✅ After the engine cools completely, recheck the coolant reservoir level and top off if needed.
• ✅ Recheck the belt path and make sure the belt is centered on every pulley.
• ✅ Dispose of old coolant at a recycling center or parts store that accepts used coolant.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$750 (parts + labor)

DIY Cost: $120-$260 (parts only)

You Save: $330-$490 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.0 hours.

---
