🔧 Mustang - Water Pump Replacement

Replacing the water pump on your Mustang means draining the coolant, removing the drive belt and pulley, replacing the pump and seal, then refilling and bleeding the cooling system. A failing water pump can leak coolant, make bearing noise, or cause overheating.

Difficulty Level: Intermediate | Estimated Time: 2.5-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Work only on a fully cold engine. Hot coolant is pressurized and can burn you badly.
• ⚠️ Disconnect the negative battery cable before working near the belt and cooling fan area.
• ⚠️ Support your Mustang with jack stands if you raise it. Never rely on a floor jack alone.
• ⚠️ Coolant is poisonous. Keep it away from pets, children, and storm drains.
• ⚠️ Do not run the engine with the coolant low. The 2.3L turbo engine can overheat quickly if air is trapped in the system.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 7mm socket
• 8mm socket
• 10mm socket
• 15mm socket
• 3/8-inch drive ratchet
• 3/8-inch drive extension set
• Torque wrench 5-50 Nm
• Serpentine belt tool 15mm
• Flat-blade screwdriver
• Hose clamp pliers
• Plastic trim clip removal tool
• Plastic gasket scraper
• Drain pan 2-gallon minimum
• Coolant funnel kit with adapters
• Floor jack rated 2-ton minimum
• Jack stands rated 2-ton minimum
• Wheel chocks
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine water pump - Qty: 1
• Water pump seal or gasket - Qty: 1
• Motorcraft Orange-compatible coolant premix - Qty: 2 gallons
• Serpentine belt - Qty: 1 if cracked, glazed, worn, or coolant-soaked
• Lower splash shield clips - Qty: As needed

---

📋 Before You Begin

• 🅿️ Park your Mustang on level ground and set the parking brake.
• 🧊 Let the engine cool completely, preferably for several hours.
• 🔋 Use a 10mm socket to disconnect the negative battery cable.
• ⬆️ Place wheel chocks behind the rear wheels, raise the front with a floor jack, and support it with jack stands.
• 📌 A serpentine belt is the long ribbed belt that runs engine accessories.
• 📌 A torque wrench tightens bolts to the correct tightness so you do not damage parts.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the Lower Splash Shield

• Put on safety glasses and nitrile gloves.
• Use the plastic trim clip removal tool to remove the plastic push clips from the lower splash shield.
• Use a 7mm socket or 8mm socket to remove any small splash shield screws.
• Lower the shield and set it aside.
• Save every clip.

Step 2: Drain the Coolant

• Place the 2-gallon drain pan under the radiator drain area.
• Slowly loosen the coolant reservoir cap by hand.
• Use a flat-blade screwdriver to open the radiator drain valve if accessible.
• If the drain valve is hard to access, use hose clamp pliers to loosen the lower radiator hose clamp, then carefully slide the hose back enough to drain coolant.
• After draining, close the drain valve or reinstall the lower radiator hose and clamp.

Step 3: Remove the Engine Cover and Intake Duct

• Pull the engine appearance cover upward by hand if equipped.
• Use an 8mm socket to loosen the air intake tube clamps.
• Disconnect any attached breather hose by hand.
• Move the intake duct out of the way for better access.

Step 4: Remove the Serpentine Belt

• Take a clear photo of the belt routing before removal.
• Place the serpentine belt tool with 15mm socket on the belt tensioner.
• The belt tensioner is the spring-loaded arm that keeps the belt tight.
• Rotate the tensioner to release belt tension.
• Slide the belt off the water pump pulley by hand.
• Slowly release the tensioner.
• Do not let it snap back.

Step 5: Remove the Water Pump Pulley

• Use a 10mm socket to loosen the water pump pulley bolts.
• If the pulley turns, hold it with a shop towel by hand while loosening the bolts.
• Remove the bolts and lift the pulley off the pump.

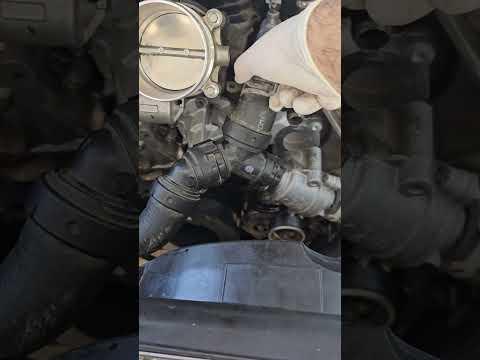

Step 6: Disconnect the Water Pump Hose

• Use hose clamp pliers to squeeze the spring clamp on the coolant hose at the water pump.
• Slide the clamp back onto the hose.
• Twist the hose gently by hand to break it loose.
• Pull the hose off the pump neck.
• Use a flat-blade screwdriver only gently if the hose is stuck. Do not cut or gouge the hose.

Step 7: Remove the Old Water Pump

• Place shop towels under the pump area to catch leftover coolant.
• Use an 8mm socket or 10mm socket to remove the water pump mounting bolts.
• Keep the bolts organized by location.
• Pull the pump straight away from the engine.
• If it sticks, gently rock it by hand. Avoid prying on the aluminum sealing surface.

Step 8: Clean the Mounting Surface

• Use a plastic gasket scraper to clean old seal material from the engine surface.
• Wipe the surface with shop towels until clean and dry.
• Do not use a metal scraper. It can scratch the aluminum and cause leaks.
• Clean surface, no leaks.

Step 9: Install the New Water Pump

• Place the new water pump seal or gasket on the new pump.
• Position the pump squarely against the engine by hand.
• Start all bolts by hand first to avoid cross-threading.
• Use an 8mm socket or 10mm socket to snug the bolts evenly.
• Use the torque wrench to tighten the water pump bolts to Torque to 10 Nm (89 in-lbs).

Step 10: Reconnect the Hose

• Push the coolant hose fully onto the water pump neck by hand.
• Use hose clamp pliers to move the clamp back to its original position.
• Make sure the clamp sits behind the raised lip on the pump neck.

Step 11: Reinstall the Water Pump Pulley

• Set the pulley onto the water pump hub.
• Start the pulley bolts by hand.
• Use a 10mm socket to snug the bolts evenly.
• Use the torque wrench to tighten the pulley bolts to Torque to 25 Nm (18 ft-lbs).

Step 12: Reinstall the Serpentine Belt

• Route the belt using your photo as a guide.
• Use the serpentine belt tool with 15mm socket to rotate the tensioner.
• Slide the belt over the final pulley by hand.
• Slowly release the tensioner.
• Check that the belt ribs sit fully inside every pulley groove.

Step 13: Reinstall the Intake Duct

• Set the intake duct back in place by hand.
• Reconnect any breather hose by hand.
• Use an 8mm socket to tighten the intake tube clamps until snug.

Step 14: Refill the Cooling System

• Install the coolant funnel kit on the coolant reservoir.
• Pour Motorcraft Orange-compatible premix coolant slowly into the reservoir.
• Fill to the MAX mark.
• If using concentrate instead of premix, mix it 50/50 with distilled water before filling.

Step 15: Reconnect the Battery

• Use a 10mm socket to reconnect the negative battery cable.
• Tighten the terminal until snug.

Step 16: Bleed the Cooling System

• Leave the coolant funnel kit installed with coolant in the funnel.
• Start the engine and let it idle.
• Set the climate controls to full hot and low fan speed.
• Watch for air bubbles rising through the funnel.
• Add coolant as the level drops.
• Let the engine reach normal temperature while watching the temperature gauge.
• When bubbles stop and the heater blows warm air, shut the engine off.
• Let the engine cool, then install the coolant reservoir cap by hand.

Step 17: Reinstall the Lower Splash Shield

• Use the plastic trim clip removal tool by hand to reinstall the splash shield clips.
• Use a 7mm socket or 8mm socket to reinstall the splash shield screws.
• Use the floor jack to raise the vehicle slightly, remove the jack stands, then lower your Mustang.

---

✅ After Repair

• ✅ Check the water pump area, hose connection, and radiator drain area for leaks.
• ✅ Drive gently for 10-15 minutes while watching the temperature gauge.
• ✅ Let the engine cool completely, then recheck coolant level and top off if needed.
• ✅ Recheck for leaks the next day.
• ✅ Dispose of old coolant through a proper recycling or hazardous waste facility.

---

💰 DIY vs Shop Cost

Shop Cost: $550-$900 (parts + labor)

DIY Cost: $140-$300 (parts only)

You Save: $410-$600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
