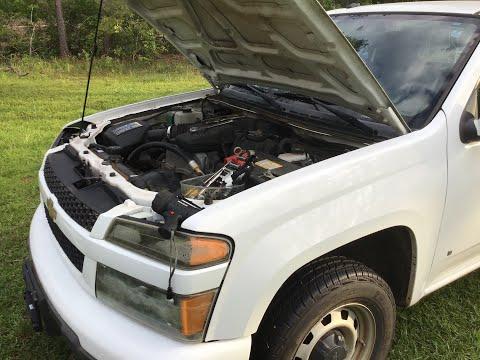

🔧 Colorado - Water Pump Replacement

This repair replaces the engine water pump, which circulates coolant through your Colorado’s 2.5L engine and radiator. A leaking, noisy, or weak water pump can cause coolant loss and overheating, so replace it promptly and refill the cooling system correctly.

Difficulty Level: Intermediate | Estimated Time: 2.5-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Work only on a completely cool engine. Hot coolant can cause severe burns.
• ⚠️ Disconnect the negative battery cable before working near the accessory belt and alternator area.
• ⚠️ Never open the coolant reservoir cap when the engine is hot.
• ⚠️ Keep coolant away from pets and children. It is poisonous and tastes sweet.
• ⚠️ Use only the correct Dex-Cool compatible coolant for your Colorado.
• ⚠️ Support the vehicle securely if you raise it. Never rely on a jack alone.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 13mm socket
• 15mm socket
• 3/8-inch drive ratchet
• 3/8-inch drive extension set
• Serpentine belt tool (specialty)
• Torque wrench rated 5-80 ft-lbs
• Flat-blade screwdriver
• Hose clamp pliers
• Plastic gasket scraper
• Drain pan 2-gallon minimum
• Funnel with narrow spout
• Cooling system pressure tester (specialty)
• Floor jack rated 2-ton minimum
• Jack stands rated 2-ton minimum
• Wheel chocks
• Nitrile gloves
• Safety glasses
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine water pump - Qty: 1
• Water pump gasket or seal - Qty: 1
• Dex-Cool compatible coolant 50/50 premix - Qty: 2 gallons
• Serpentine belt - Qty: 1
• Lower radiator drain plug seal - Qty: 1

---

📋 Before You Begin

• 🅿️ Park your Colorado on level ground and let the engine cool fully.
• 🛞 Set the parking brake and place wheel chocks behind the rear wheels.
• 🔋 Use a 10mm socket to disconnect the negative battery cable. This prevents accidental starts.
• 🧊 Make sure you have enough coolant ready before removing the old pump.
• 🧰 A serpentine belt tool is a long-handled tool that moves the belt tensioner so you can remove the belt safely.
• 🧰 A torque wrench tightens bolts to an exact tightness so parts seal correctly without cracking.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the Front of the Truck

• Use a floor jack rated 2-ton minimum to lift the front of your Colorado at the front frame lift point.
• Place jack stands rated 2-ton minimum under the frame rails.
• Lower the truck gently onto the jack stands.
• Keep the wheel chocks in place at the rear wheels.
• Give the truck a gentle shake.

Step 2: Remove the Front Lower Splash Shield

• Put on safety glasses and nitrile gloves.
• Use a 10mm socket and 3/8-inch drive ratchet to remove the lower splash shield fasteners.
• Lower the shield and set it aside.
• Keep the bolts together so they do not get lost.

Step 3: Drain the Coolant

• Place a drain pan 2-gallon minimum under the radiator drain area.
• Slowly remove the coolant reservoir cap by hand to release any leftover pressure.
• Use a flat-blade screwdriver if needed to open the radiator drain plug.
• Let the coolant drain until the flow slows to a drip.
• Close the radiator drain plug by hand, then snug it lightly with the flat-blade screwdriver if applicable.
• Do not overtighten the plastic drain plug.

Step 4: Note the Serpentine Belt Routing

• Use your phone to take a clear picture of the belt path before removal.
• The serpentine belt is the long rubber belt that drives the alternator, water pump, and other accessories.
• Look for a belt routing decal under the hood and compare it to your photo.

Step 5: Remove the Serpentine Belt

• Place the serpentine belt tool on the belt tensioner.
• Rotate the tensioner to release belt tension.
• Slide the belt off the nearest smooth pulley by hand.
• Slowly release the tensioner back to its resting position.
• Remove the belt from the engine bay.
• Never let the tensioner snap back.

Step 6: Remove Parts Blocking the Water Pump

• Use a 10mm socket and 3/8-inch drive ratchet to remove any small bracket or shield blocking water pump access.
• Use hose clamp pliers to move any hose clamps that block the pump area.
• Twist hoses gently by hand before pulling them off.
• If a hose is stuck, use a flat-blade screwdriver carefully at the hose edge. Do not gouge the metal sealing surface.

Step 7: Remove the Old Water Pump

• Place shop towels under the pump area to catch coolant.
• Use a 10mm socket or 13mm socket with a 3/8-inch drive ratchet to remove the water pump mounting bolts.
• Remove the bolts in a crisscross pattern so the pump comes off evenly.
• Pull the water pump straight away from the engine.
• More coolant may spill, so keep the drain pan in position.

Step 8: Clean the Sealing Surface

• Use a plastic gasket scraper to remove old gasket material from the engine surface.
• Wipe the area with shop towels until it is clean and dry.
• Do not use a metal scraper because it can scratch the aluminum sealing surface.
• Make sure no old gasket pieces fall into the coolant passage.
• Clean metal seals best.

Step 9: Install the New Water Pump

• Install the new water pump gasket or seal onto the new water pump.
• Hold the water pump squarely against the engine by hand.
• Start all mounting bolts by hand first to avoid cross-threading.
• Use a 10mm socket or 13mm socket to snug the bolts evenly in a crisscross pattern.
• Use a torque wrench rated 5-80 ft-lbs to tighten the water pump bolts to Torque to 25 Nm (18 ft-lbs).
• If your replacement pump includes separate pulley bolts, use a 10mm socket and torque wrench to tighten pulley bolts to Torque to 25 Nm (18 ft-lbs).

Step 10: Reinstall Hoses and Brackets

• Slide coolant hoses fully onto their fittings by hand.
• Use hose clamp pliers to move the clamps back to their original positions.
• Use a 10mm socket to reinstall any removed brackets or shields.
• Tighten small bracket bolts snugly with the 3/8-inch drive ratchet.
• Do not overtighten small bolts into aluminum parts.

Step 11: Install the Serpentine Belt

• Route the new serpentine belt around the pulleys using your photo or the under-hood diagram.
• Leave the easiest smooth pulley for last.
• Use the serpentine belt tool to rotate the belt tensioner.
• Slip the belt over the last pulley by hand.
• Slowly release the tensioner.
• Check every pulley groove with a flashlight and make sure the belt sits straight.

Step 12: Reinstall the Lower Splash Shield

• Lift the splash shield back into position.
• Use a 10mm socket and 3/8-inch drive ratchet to install the fasteners.
• Tighten the fasteners snugly.

Step 13: Lower the Truck

• Use the floor jack rated 2-ton minimum to lift the front slightly off the jack stands.
• Remove the jack stands.
• Lower your Colorado slowly to the ground.

Step 14: Refill the Cooling System

• Use a funnel with narrow spout to fill the coolant reservoir with Dex-Cool compatible 50/50 premix coolant.
• Fill to the cold fill mark on the reservoir.
• Reconnect the negative battery cable with a 10mm socket.
• Start the engine and set the heater to full hot with the fan on low.
• Let the engine idle while watching the coolant level.
• Add coolant as the level drops.
• Install the coolant reservoir cap once the level stabilizes.

Step 15: Bleed Air and Check Operation

• Let the engine reach normal operating temperature while parked.
• Watch the temperature gauge. Shut the engine off if it rises above normal.
• Check for heat from the vents. Good cabin heat usually means coolant is circulating.
• Use safety glasses and look around the water pump area for leaks.
• Use a cooling system pressure tester to pressure test the system to the pressure listed on the coolant cap.
• If pressure drops or coolant appears, shut down and repair the leak before driving.

---

✅ After Repair

• ✅ After the first full warm-up, shut the engine off and let it cool completely.
• ✅ Recheck the coolant level at the reservoir and top off to the cold fill mark if needed.
• ✅ Drive gently for 10-15 minutes while watching the temperature gauge.
• ✅ Recheck for leaks around the water pump, hoses, radiator drain plug, and coolant reservoir.
• ✅ Recheck the serpentine belt position after the test drive.
• ✅ Dispose of old coolant properly at a recycling center or repair facility.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$750 (parts + labor)

DIY Cost: $120-$260 (parts only)

You Save: $330-$490 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
