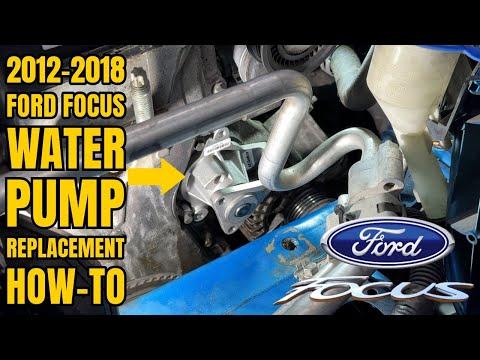

🔧 Focus - Water Pump Replacement

Replacing the water pump on your Focus means draining the cooling system, removing the accessory drive belt, unbolting the pump, and sealing in a new pump with fresh coolant. The water pump moves coolant through the engine; if it leaks, gets noisy, or stops circulating coolant, the engine can overheat quickly.

Difficulty Level: Intermediate | Estimated Time: 2.5-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Work only on a completely cool engine. Hot coolant can cause severe burns.
• ⚠️ Disconnect the negative battery cable before working near the accessory belt area.
• ⚠️ Support the vehicle with jack stands if you raise it. Never rely on a floor jack alone.
• ⚠️ Keep coolant away from children and pets. It is toxic and can taste sweet.
• ⚠️ Do not run the engine without coolant except for a moment during final checks if instructed by a service procedure.
• ⚠️ Dispose of old coolant according to local hazardous-waste rules.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 8mm socket
• 10mm socket
• 13mm socket
• 15mm wrench
• 3/8-inch drive ratchet
• 3/8-inch drive extension set
• Torque wrench 5-60 Nm
• Flat-blade screwdriver
• Trim clip removal tool
• Drain pan 2-gallon minimum
• Coolant funnel kit
• Plastic gasket scraper
• Shop towels
• Floor jack rated 2-ton minimum
• Jack stands rated 2-ton minimum
• Wheel chocks
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine water pump - Qty: 1
• Water pump gasket or O-ring - Qty: 1
• Motorcraft-compatible orange coolant concentrate - Qty: 1 gallon
• Distilled water - Qty: 1 gallon
• Accessory drive belt - Qty: 1

---

📋 Before You Begin

• 🚗 Park your Focus on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• 🧊 Let the engine cool fully before opening the coolant reservoir cap.
• 🔋 Use a 10mm socket to disconnect the negative battery cable and move it aside so it cannot spring back.
• 🧰 A torque wrench tightens bolts to an exact amount so parts seal correctly without cracking.
• 🧰 A coolant funnel kit helps remove trapped air from the cooling system while refilling.
• 🧰 A plastic gasket scraper removes old gasket material without scratching the aluminum sealing surface.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and Secure the Front

• Use a floor jack rated 2-ton minimum to lift the front of your Focus at the front jacking point.
• Place jack stands rated 2-ton minimum under the proper front support points.
• Gently lower the vehicle onto the jack stands and leave the floor jack lightly touching as backup.
• Put on safety glasses and nitrile gloves.

Step 2: Remove the Lower Splash Shield

• Use a trim clip removal tool to remove plastic retainers from the lower engine splash shield.
• Use an 8mm socket to remove any splash shield screws.
• Set the shield and fasteners aside in order. Use a cup for bolts.

Step 3: Drain the Coolant

• Place a drain pan 2-gallon minimum under the radiator drain area.
• Slowly remove the coolant reservoir cap by hand to release any leftover pressure.
• Use a flat-blade screwdriver to open the radiator drain if equipped.
• If there is no accessible drain, use pliers only if needed to release the lower hose clamp, then carefully pull the lower hose enough to drain coolant.
• Allow coolant to drain completely into the pan.

Step 4: Remove the Accessory Drive Belt

• Look at the belt routing before removal. Take a photo with your phone.
• Use a 15mm wrench on the belt tensioner to rotate the tensioner and release belt tension.
• A belt tensioner is the spring-loaded pulley that keeps the belt tight.
• Slide the belt off the water pump pulley, then slowly release the tensioner.
• Remove the belt from the engine bay.

Step 5: Remove Access for the Water Pump

• Use an 8mm socket or 10mm socket to remove any small brackets or shields blocking the water pump area.
• Use a trim clip removal tool for any wiring harness retainers attached near the pump.
• Move hoses and wiring gently aside. Do not pull hard on connectors.

Step 6: Remove the Water Pump Pulley if Needed

• If the pulley blocks the pump bolts, use a 10mm socket to loosen the pulley bolts before fully removing the pulley.
• Hold the pulley by hand while loosening the bolts, or use light belt tension if the belt is still positioned enough to help hold it.
• Remove the pulley bolts with the 10mm socket and lift the pulley away.
• Set the pulley on a clean surface.

Step 7: Remove the Old Water Pump

• Place shop towels under the water pump area to catch coolant drips.
• Use an 8mm socket or 10mm socket to remove the water pump mounting bolts.
• Pull the water pump straight away from the engine.
• If it sticks, gently tap the pump housing by hand. Do not pry hard against the aluminum engine cover.

Step 8: Clean the Sealing Surface

• Use a plastic gasket scraper to remove old gasket material or residue from the engine sealing surface.
• Wipe the area with shop towels until clean and dry.
• Do not use a metal scraper. It can scratch the surface and cause leaks.

Step 9: Install the New Water Pump

• Install the new water pump gasket or O-ring onto the new water pump.
• If the gasket is an O-ring, lightly wet it with fresh coolant so it seats smoothly.
• Position the new water pump squarely against the engine.
• Start all mounting bolts by hand first to avoid cross-threading.
• Use an 8mm socket or 10mm socket to snug the bolts evenly in a crisscross pattern.
• Use a torque wrench 5-60 Nm to tighten the water pump bolts to Torque to 10 Nm (89 in-lbs).

Step 10: Reinstall the Water Pump Pulley

• Place the pulley back onto the water pump hub.
• Start the pulley bolts by hand.
• Use a 10mm socket to snug the pulley bolts evenly.
• Use a torque wrench 5-60 Nm to tighten the pulley bolts to Torque to 25 Nm (18 ft-lbs).

Step 11: Reinstall the Accessory Drive Belt

• Route the new accessory drive belt using the photo you took earlier.
• Use a 15mm wrench to rotate the belt tensioner.
• Slide the belt over the final pulley and slowly release the tensioner.
• Check that the belt ribs sit fully inside every grooved pulley.

Step 12: Reinstall Brackets and Splash Shield

• Use an 8mm socket or 10mm socket to reinstall any brackets or shields removed near the pump.
• Use a trim clip removal tool by hand to reinstall wiring retainers and splash shield clips.
• Use an 8mm socket to reinstall lower splash shield screws.
• Tighten small splash shield screws snug only; do not overtighten plastic parts.

Step 13: Refill the Cooling System

• Close the radiator drain by hand or reconnect the lower radiator hose if removed.
• Use a coolant funnel kit at the coolant reservoir.
• Mix Motorcraft-compatible orange coolant concentrate with distilled water at a 50/50 ratio unless using premixed coolant.
• Slowly fill the coolant reservoir to the MAX line.

Step 14: Bleed Air from the Cooling System

• Reconnect the negative battery cable using a 10mm socket.
• Start the engine and set the cabin heater to full hot with the blower on low.
• Let the engine idle while watching the coolant funnel level.
• Add coolant as the level drops.
• Watch for bubbles. Bubbles mean trapped air is leaving the system.
• When the radiator fan cycles on and warm air comes from the vents, install the coolant reservoir cap by hand.

Step 15: Final Leak Check

• Use a flashlight to inspect around the new water pump, pulley, hoses, and drain area.
• Look for drips, seepage, or coolant smell.
• Use shop towels to dry any spilled coolant so new leaks are easier to spot.
• Lower your Focus carefully with the floor jack after removing the jack stands.

---

✅ After Repair

• ✅ Drive gently for 10-15 minutes while watching the temperature gauge.
• ✅ Let the engine cool fully, then check the coolant level again and top off to the MAX line if needed.
• ✅ Recheck for leaks the next day after the engine has cooled overnight.
• ✅ If the temperature gauge rises above normal, shut the engine off immediately and let it cool.
• ✅ If the belt squeals or walks off a pulley, stop driving and recheck belt routing.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$750 (parts + labor)

DIY Cost: $90-$220 (parts only)

You Save: $300-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
