🔧 Impala - Water Pump Replacement

The water pump on your Impala is mounted on the passenger side of the 3.6L V6 and is driven by the accessory belt. Replacement requires draining the engine coolant, removing the belt and pump pulley, installing a new pump and seal, then carefully refilling the cooling system.

Difficulty Level: Intermediate | Estimated Time: 3-5 hours

Assumption: This procedure applies to the stock U.S.-market 3.6L V6 configuration.

---

⚠️ Safety & Precautions

• ⚠️ Let the engine become completely cold before opening the coolant reservoir. Hot coolant can cause severe burns.
• 🧤 Wear safety glasses and gloves because coolant is poisonous and irritating.
• 🚫 Keep drained coolant away from children and animals. Its sweet taste makes it especially dangerous.
• 🏗️ Support your Impala with jack stands. Never work beneath a vehicle supported only by a floor jack.
• 🔋 Battery disconnection is not normally required for this repair.
• 🧼 Clean spilled coolant immediately and dispose of used coolant through an approved recycling facility.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 3-ton floor jack
• 3-ton jack stands
• Wheel chocks
• 19mm lug-nut socket
• 10mm socket
• 13mm socket
• 15mm six-point socket
• 3/8-inch-drive ratchet
• 3/8-inch-drive 3-inch extension
• 3/8-inch-drive breaker bar
• 3/8-inch-drive torque wrench rated 5-80 Nm
• 1/2-inch-drive torque wrench rated 40-150 Nm
• Flat-tip screwdriver
• Plastic trim-clip removal tool
• Plastic gasket scraper
• Small nylon cleaning brush
• Coolant drain pan rated 15 liters minimum
• Spill-free coolant funnel kit
• Belt-routing diagram marker
• Mechanic’s gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine water pump - Qty: 1
• Water pump molded seal - Qty: 1
• DEX-COOL-compatible 50/50 premixed coolant - Qty: 8 liters
• Accessory drive belt - Qty: 1 if cracked, glazed or coolant-contaminated
• Passenger-side splash-shield clips - Qty: As needed

---

📋 Before You Begin

• 🅿️ Park your Impala on firm, level ground. Select Park, engage the parking brake and chock both rear wheels.
• ❄️ Allow the engine to cool for several hours. The upper radiator hose should feel cool and soft before the reservoir cap is opened.
• 📝 Photograph or draw the accessory-belt routing before removing the belt.
• ♻️ Position a clean drain pan beneath the passenger side of the radiator. Clean coolant can be reused only if it remains uncontaminated, but fresh coolant is recommended.
• 📵 No infotainment setting, scan-tool command, coding or electronic service mode is required.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve Cooling-System Pressure

• Put on the safety glasses and mechanic’s gloves.
• Cover the coolant reservoir cap with a thick cloth and turn it slowly by hand.
• Stop if you hear pressure escaping. Wait until it stops before completely removing the cap.

Step 2: Raise and Support the Passenger Side

• Use the 19mm lug-nut socket and 1/2-inch-drive torque wrench to loosen the passenger-front wheel nuts about one-half turn.
• Use the 3-ton floor jack at the approved front lifting point, then place a 3-ton jack stand under the reinforced passenger-side support point.
• Lower your Impala securely onto the stand. Keep the floor jack lightly touching the lifting point as a backup.
• Use the 19mm lug-nut socket to remove the wheel.

Step 3: Remove the Passenger-Side Splash Shield

• Use the plastic trim-clip removal tool to release the plastic retainers.
• Use the 10mm socket and 3/8-inch-drive ratchet to remove any shield screws.
• Move the shield aside to expose the accessory belt and water-pump area.
• A splash shield is the plastic panel that keeps water and dirt out of the engine compartment.

Step 4: Drain the Coolant

• Place the 15-liter coolant drain pan beneath the radiator drain outlet.
• Use the flat-tip screwdriver only if needed to carefully open the radiator drain fitting. Do not force the plastic fitting or remove it completely.
• Allow the coolant to drain until the flow stops, then close the fitting by hand and gently snug it with the flat-tip screwdriver.
• Do not apply excessive force to the plastic drain fitting.

Step 5: Loosen the Water-Pump Pulley Bolts

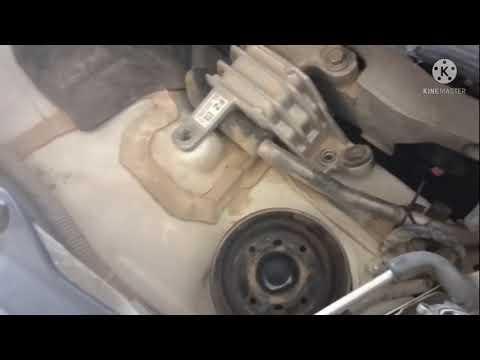

• Locate the water-pump pulley on the passenger side of the engine.
• With the accessory belt still installed, use the correctly fitting 10mm or 13mm socket and 3/8-inch-drive breaker bar to loosen the three pulley bolts about one-quarter turn.
• Do not remove the bolts yet. The installed belt helps keep the pulley from rotating.

Step 6: Remove the Accessory Belt

• Confirm that your belt-routing photograph or drawing is clear.
• Place the 15mm six-point socket and 3/8-inch-drive breaker bar on the belt tensioner.
• Rotate the spring-loaded tensioner far enough to create belt slack, then slide the belt off the water-pump pulley.
• Slowly release the tensioner. Do not allow it to snap back.
• A belt tensioner is the spring-loaded arm that keeps the accessory belt tight.
• Inspect the belt. Replace it if it has cracks, missing ribs, shiny glazing or coolant saturation.

Step 7: Remove the Water-Pump Pulley

• Use the previously selected 10mm or 13mm socket and 3/8-inch-drive ratchet to remove the three loosened pulley bolts.
• Remove the pulley and place it on a clean surface.
• Do not bend or pry against the pulley grooves.

Step 8: Remove the Old Water Pump

• Place the coolant drain pan directly beneath the pump because additional coolant will escape.
• Use the 10mm socket, 3-inch extension and 3/8-inch-drive ratchet to remove the water-pump mounting bolts.
• Note each bolt’s position during removal and reinstall every bolt in its original location.
• Pull the water pump straight away from the engine. Gently rock it by hand if the molded seal is stuck.
• Do not drive a screwdriver between the aluminum sealing surfaces.

Step 9: Clean and Inspect the Mounting Surface

• Use the plastic gasket scraper and small nylon cleaning brush to remove seal residue from the engine’s mating surface.
• Keep debris out of the open coolant passage.
• Wipe the surface clean and inspect it for deep scratches, corrosion or cracks.
• Do not use powered abrasive discs or metal scrapers on the aluminum surface.
• A clean sealing surface prevents repeat leaks.

Step 10: Install the New Water Pump

• Fit the new molded seal into the groove on the new pump. Do not apply RTV silicone unless the replacement-pump manufacturer specifically requires it.
• Hold the pump squarely against the engine and start every mounting bolt by hand.
• Use the 10mm socket and 3/8-inch-drive ratchet to seat the bolts gradually in a crossing pattern.
• Use the 3/8-inch-drive torque wrench and 10mm socket to tighten the water-pump bolts evenly to 10 Nm (89 in-lbs).
• Do not overtighten the bolts. The pump housing and engine cover are aluminum.

Step 11: Reinstall the Pulley and Belt

• Position the pulley on the new pump and start all three bolts by hand.
• Use the 10mm or 13mm socket and 3/8-inch-drive ratchet to snug the bolts evenly.
• Use the 15mm six-point socket and 3/8-inch-drive breaker bar to rotate the tensioner.
• Route the accessory belt according to your photograph, then slowly release the tensioner.
• Verify that every belt rib is fully seated in every grooved pulley.
• Use the 3/8-inch-drive torque wrench and correct pulley socket to tighten the pulley bolts evenly to 12 Nm (106 in-lbs).

Step 12: Refill the Cooling System

• Confirm that the radiator drain fitting is closed.
• Install the spill-free coolant funnel kit on the coolant reservoir.
• Slowly add DEX-COOL-compatible 50/50 premixed coolant until the level stabilizes at the cold-fill mark.
• Pause several times so trapped air can escape. Do not mix DEX-COOL with conventional green coolant.

Step 13: Bleed Air from the Cooling System

• Leave the spill-free coolant funnel kit installed and start the engine.
• Set the cabin temperature to maximum heat and the blower to low.
• Allow the engine to idle while watching the coolant level and temperature gauge.
• Add 50/50 coolant as the level falls. Gently squeeze the upper radiator hose by hand only while it remains safe to touch.
• When the upper radiator hose becomes hot and cabin heat remains steady, allow any remaining bubbles to escape.
• Switch off the engine if the temperature gauge climbs toward the hot zone or coolant begins forcefully surging from the funnel.
• Turn off the engine, allow it to cool completely and adjust the reservoir to the cold-fill mark.

Step 14: Reinstall the Splash Shield and Wheel

• Use the plastic trim-clip removal tool and 10mm socket to reinstall the splash shield and its retainers.
• Install the wheel and start all five lug nuts by hand.
• Use the 3-ton floor jack to lift your Impala slightly, remove the jack stand and lower the vehicle.
• Use the 19mm lug-nut socket and 1/2-inch-drive torque wrench to tighten the lug nuts in a star pattern to 140 Nm (103 ft-lbs).

---

✅ After Repair

• 🔍 Run the engine and inspect the pump, drain fitting and nearby hose connections for coolant leaks.
• 🌡️ Confirm that the temperature gauge remains stable and the heater supplies steady warm air.
• 🛞 Watch the accessory belt from a safe distance. It should run centrally without wobbling or squealing.
• ❄️ After the engine becomes completely cold, recheck the coolant reservoir and adjust it to the cold-fill mark.
• 🧪 Recheck the coolant level and inspect for leaks again after the first two or three drives.
• 🧹 Rinse coolant residue from painted or metal surfaces with water and dispose of the drained coolant responsibly.

---

💰 DIY vs Shop Cost

Shop Cost: ₹28,000-₹52,000 (parts + labor)

DIY Cost: ₹9,000-₹22,000 (parts only)

You Save: ₹19,000-₹30,000 by doing it yourself!

Local labor and imported-part prices vary. This repair takes a shop approximately 2.5-4 hours.

---
