🔧 Outback - Water Pump Replacement

Replacing the water pump on your Outback requires draining the cooling system, removing the timing belt covers, removing the timing belt from the water pump area, and installing a new pump with a fresh gasket. On this 2.5L flat-4 engine, the water pump is driven by the timing belt, so this job must be done carefully to avoid engine timing problems.

Difficulty Level: Advanced | Estimated Time: 4-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool completely before opening the cooling system. Hot coolant can cause serious burns.
• ⚠️ Disconnect the negative battery cable before working near the radiator fans and timing belt area.
• ⚠️ Support the vehicle securely with jack stands. Never rely on a floor jack alone.
• ⚠️ The timing belt controls valve timing. If it is installed incorrectly, the engine may run poorly or be damaged.
• ⚠️ Keep coolant away from pets and children. It is toxic and tastes sweet.
• ⚠️ Do not rotate the crankshaft or camshaft independently after the timing belt is removed.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• 22mm socket
• 3/8-inch ratchet
• 1/2-inch breaker bar
• Torque wrench 10-150 ft-lbs
• Phillips screwdriver #2
• Flat-blade screwdriver 1/4-inch
• Trim clip removal tool
• Pliers 8-inch
• Drain pan 2-gallon minimum
• Floor jack 2-ton minimum
• Jack stands 2-ton minimum
• Funnel spill-free coolant fill kit
• Crankshaft pulley holder (specialty)
• Cooling system pressure tester (specialty)
• Gasket scraper plastic
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump - Qty: 1
• Water pump gasket - Qty: 1
• Timing belt - Qty: 1
• Timing belt tensioner - Qty: 1
• Timing belt idler pulleys - Qty: 1 kit
• Thermostat - Qty: 1
• Thermostat gasket - Qty: 1
• Subaru-compatible blue long-life coolant - Qty: 2 gallons
• Distilled water - Qty: 2 gallons if using concentrate coolant
• Radiator drain plug gasket - Qty: 1
• Accessory drive belts - Qty: 2

---

📋 Before You Begin

• 🚗 Park your Outback on level ground and let the engine cool fully.
• 🔋 Use a 10mm socket to disconnect the negative battery cable.
• 🧊 Set the cabin heater temperature to full hot before draining coolant. This helps coolant flow through the heater core during refill.
• 🛞 Use a floor jack 2-ton minimum to raise the front of the vehicle, then place it securely on jack stands 2-ton minimum.
• 🧼 Have shop towels ready. Coolant will spill when the pump is removed.
• 📌 A crankshaft pulley holder is a tool that holds the crank pulley still while you loosen or tighten the center bolt.
• 📌 A torque wrench tightens bolts to an exact tightness so parts do not leak, loosen, or crack.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Drain the Coolant

• Put on safety glasses and nitrile gloves.
• Place a drain pan 2-gallon minimum under the radiator drain area.
• Remove the radiator cap by hand only after the engine is completely cool.
• Use a Phillips screwdriver #2 or pliers 8-inch to open the radiator drain plug, depending on plug style.
• Let the coolant drain fully into the pan.
• Open slowly to control flow.

Step 2: Remove the Under Cover and Accessory Belts

• Use a trim clip removal tool and 10mm socket to remove the lower engine under cover fasteners.
• Use a 12mm socket to loosen the accessory belt adjuster lock bolts.
• Use a 12mm socket to turn the belt adjusters and release belt tension.
• Remove the accessory drive belts by hand.
• Inspect the belts for cracks or glazing. Replace them if worn.

Step 3: Remove the Radiator Fans

• Use a 10mm socket to remove the radiator fan mounting bolts.
• Disconnect the fan electrical connectors by pressing the locking tabs by hand.
• Lift the fan assemblies straight up and out.
• This gives more room to remove the crankshaft pulley and timing covers.

Step 4: Remove the Crankshaft Pulley

• Install the crankshaft pulley holder onto the crank pulley.
• Use a 22mm socket and 1/2-inch breaker bar to loosen the crankshaft pulley bolt.
• Remove the crankshaft pulley bolt and washer by hand.
• Pull the crankshaft pulley straight off the crankshaft nose.
• Do not pry against the timing cover with a screwdriver.

Step 5: Remove the Timing Belt Covers

• Use a 10mm socket to remove the front timing belt cover bolts.
• Remove the left, right, and center timing belt covers by hand.
• Keep the bolts grouped by cover location so they go back in the same places.
• Take photos before disassembly.

Step 6: Align the Timing Marks

• Use a 22mm socket on the crankshaft bolt temporarily threaded into the crankshaft.
• Turn the engine clockwise only until the crankshaft and camshaft timing marks line up with their reference marks.
• Do not use the arrows on the cam sprockets as timing marks. Use the small line marks.
• Use a paint marker if available to mark the belt-to-sprocket positions before removing the belt.

Step 7: Remove the Timing Belt

• Use a 12mm socket to loosen and remove the timing belt tensioner bolts.
• Remove the timing belt tensioner.
• Slide the timing belt off the cam sprockets, idler pulleys, crank sprocket, and water pump.
• Do not rotate any sprockets after the belt is removed.
• If reusing reference marks, keep the old belt oriented so you can compare it with the new belt.

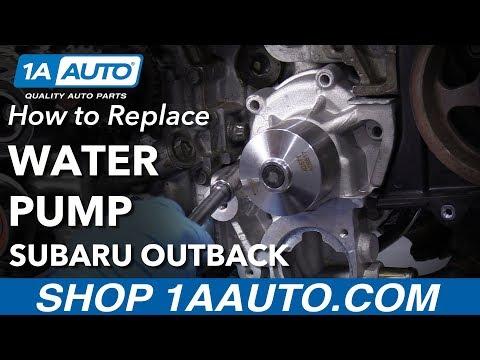

Step 8: Remove the Water Pump

• Place the drain pan 2-gallon minimum under the water pump area.
• Use pliers 8-inch to move the lower radiator hose clamp back from the water pump outlet.
• Twist and remove the lower radiator hose by hand.
• Use a 10mm socket to remove the water pump mounting bolts.
• Pull the water pump straight off the engine.
• More coolant will drain out. Keep your face and hands clear.

Step 9: Clean the Mounting Surface

• Use a plastic gasket scraper to clean old gasket material from the engine block surface.
• Use shop towels to wipe the area clean and dry.
• Do not use a metal scraper. It can gouge the aluminum sealing surface.
• Make sure no old gasket pieces fall into the coolant passages.

Step 10: Install the New Water Pump

• Place the new water pump gasket onto the new water pump.
• Position the water pump against the engine by hand.
• Start all water pump bolts by hand to avoid cross-threading.
• Use a 10mm socket to snug the bolts evenly in a crisscross pattern.
• Use a torque wrench 10-150 ft-lbs with a 10mm socket to tighten the water pump bolts to Torque to 10 Nm (7 ft-lbs).
• Reconnect the lower radiator hose and use pliers 8-inch to move the clamp back into position.

Step 11: Replace the Thermostat

• Use a 10mm socket to remove the thermostat housing bolts at the lower water pump area.
• Remove the thermostat and gasket by hand.
• Install the new thermostat with the jiggle valve positioned upward.
• A jiggle valve is the small loose pin in the thermostat that helps trapped air escape.
• Install the new thermostat gasket.
• Use a torque wrench 10-150 ft-lbs with a 10mm socket to tighten the thermostat housing bolts to Torque to 10 Nm (7 ft-lbs).

Step 12: Install New Timing Belt Components

• Use a 14mm socket to remove the timing belt idler pulley bolts one at a time.
• Install the new idler pulleys in the same locations.
• Use a torque wrench 10-150 ft-lbs with a 14mm socket to tighten smooth idler pulley bolts to Torque to 39 Nm (29 ft-lbs).
• Use a torque wrench 10-150 ft-lbs with a 14mm socket to tighten toothed idler pulley bolts to Torque to 39 Nm (29 ft-lbs).
• Install the new timing belt tensioner with a 12mm socket but do not pull the retaining pin yet.
• Use a torque wrench 10-150 ft-lbs with a 12mm socket to tighten the tensioner bolts to Torque to 25 Nm (18 ft-lbs).

Step 13: Install the New Timing Belt

• Confirm the crankshaft and camshaft timing marks are still aligned.
• Install the timing belt around the crank sprocket, idlers, cam sprockets, and water pump in the correct routing.
• Keep the belt tight on the non-tensioner side while routing it.
• Use your fingers to keep belt teeth seated fully on each sprocket.
• Pull the tensioner retaining pin by hand once the belt is correctly routed.
• Wait about 5 minutes for the hydraulic tensioner to fully apply tension.

Step 14: Verify Timing Before Reassembly

• Use a 22mm socket and 1/2-inch breaker bar on the crankshaft bolt.
• Rotate the engine clockwise by hand two full crankshaft turns.
• Stop at the timing mark position and confirm all timing marks line up again.
• If marks do not align, remove the belt and correct the timing before starting the engine.
• Do not use the starter motor for this check.

Step 15: Reinstall Timing Covers and Crank Pulley

• Use a 10mm socket to reinstall the timing belt covers.
• Use a torque wrench 10-150 ft-lbs with a 10mm socket to tighten timing cover bolts snugly to Torque to 5 Nm (44 in-lbs).
• Slide the crankshaft pulley onto the crankshaft nose by hand.
• Install the crankshaft pulley bolt and washer by hand.
• Use the crankshaft pulley holder, 22mm socket, and torque wrench 10-150 ft-lbs to tighten the crankshaft pulley bolt to Torque to 130 Nm (96 ft-lbs).

Step 16: Reinstall Radiator Fans and Accessory Belts

• Lower the radiator fan assemblies into place by hand.
• Reconnect the fan electrical connectors by hand until they click.
• Use a 10mm socket to install the fan mounting bolts.
• Use a torque wrench 10-150 ft-lbs with a 10mm socket to tighten fan bolts to Torque to 7 Nm (62 in-lbs).
• Install the accessory drive belts by hand.
• Use a 12mm socket to adjust belt tension.
• Use a 12mm socket to tighten the adjuster lock bolts.
• Use a torque wrench 10-150 ft-lbs with a 12mm socket to tighten accessory belt lock bolts to Torque to 25 Nm (18 ft-lbs).

Step 17: Refill and Bleed the Cooling System

• Close the radiator drain plug using a Phillips screwdriver #2 or pliers 8-inch, depending on plug style.
• Use a funnel spill-free coolant fill kit at the radiator neck.
• Fill with Subaru-compatible blue long-life coolant until the radiator stays full.
• Fill the coolant overflow tank to the full mark.
• Reconnect the negative battery cable using a 10mm socket.
• Start the engine and let it idle with the heater set to full hot.
• Watch for air bubbles in the funnel and keep adding coolant as the level drops.
• Once the radiator fans cycle on and off, install the radiator cap by hand.

Step 18: Reinstall the Under Cover

• Use a trim clip removal tool to align the under cover clips.
• Use a 10mm socket to reinstall the lower under cover fasteners.
• Lower the vehicle safely using the floor jack 2-ton minimum after removing the jack stands 2-ton minimum.

---

✅ After Repair

• ✅ Let the engine reach full operating temperature and confirm the cabin heater blows hot air.
• ✅ Use a cooling system pressure tester to check for leaks after the engine cools.
• ✅ Check around the water pump, thermostat housing, lower hose, and radiator drain plug for coolant seepage.
• ✅ After the first full heat cycle, let the engine cool completely and recheck the radiator and overflow tank levels.
• ✅ Test drive gently for 10-15 minutes while watching the temperature gauge.
• ✅ Recheck coolant level the next morning when the engine is cold.
• ✅ Dispose of old coolant at a proper recycling or hazardous-waste facility.

---

💰 DIY vs Shop Cost

Shop Cost: $850-$1,300 (parts + labor)

DIY Cost: $250-$500 (parts only)

You Save: $600-$800 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 4-6 hours.

---
