🔧 1500 - Timing Drive Inspection

Your 1500 with the 5.7L HEMI does not use a timing belt. It uses an internal timing chain, which is designed to last much longer and is not a normal maintenance replacement item like a belt.

If you are hearing rattling, have cam/crank correlation codes, misfires, or oil-pressure-related valve timing issues, the correct repair is timing chain/tensioner/guide diagnosis and possible timing chain replacement.

Difficulty Level: Advanced | Estimated Time: 8-12 hours

---

⚠️ Safety & Precautions

• ⚠️ This is an advanced engine repair. Incorrect cam/crank timing can cause severe engine damage.
• ⚠️ Disconnect the negative battery cable before working near the starter, cooling fan, or front engine accessories.
• ⚠️ Let the engine cool completely before draining coolant or removing front engine components.
• ⚠️ Support the truck securely if raised. Never work under a vehicle supported only by a jack.
• ⚠️ Keep dirt and old gasket material out of the engine. Small debris can damage bearings and oil passages.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 3/8-inch drive ratchet
• 1/2-inch drive breaker bar
• 1/2-inch drive torque wrench
• 3/8-inch drive torque wrench
• 8mm socket
• 10mm socket
• 13mm socket
• 15mm socket
• 16mm socket
• 18mm socket
• 21mm socket
• 24mm socket
• 5/8-inch spark plug socket
• 6-inch extension
• 12-inch extension
• Serpentine belt tool
• Harmonic balancer puller (specialty)
• Harmonic balancer installer (specialty)
• Crankshaft holding tool (specialty)
• Fan clutch wrench set (specialty)
• Trim clip removal tool
• Plastic gasket scraper
• Drain pan
• Funnel
• Cooling system vacuum fill tool (specialty)
• OBD-II scan tool
• Floor jack rated 3-ton minimum
• Jack stands rated 3-ton minimum
• Wheel chocks
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Timing chain kit - Qty: 1
• Timing chain tensioner - Qty: 1
• Timing chain guides - Qty: 1 set
• Camshaft sprocket - Qty: 1
• Crankshaft sprocket - Qty: 1
• Timing cover gasket set - Qty: 1
• Front crankshaft seal - Qty: 1
• Water pump gasket - Qty: 1
• Valve cover gaskets - Qty: 2
• Engine oil filter - Qty: 1
• Engine oil 5W-20 synthetic - Qty: 7 quarts
• OAT coolant premix - Qty: 2-3 gallons
• RTV engine sealant - Qty: 1 tube
• Serpentine belt - Qty: 1

---

📋 Before You Begin

• Park your 1500 on level ground, shift to Park, set the parking brake, and place wheel chocks behind the rear tires.
• Open the hood and let the engine cool fully. Coolant can cause burns when hot.
• Use a 10mm socket to disconnect the negative battery cable.
• Take pictures before removing hoses, wiring connectors, and brackets. This helps during reassembly.
• A harmonic balancer is the heavy pulley on the front of the crankshaft. It must be pulled off with the correct puller, not pried off.
• A torque wrench tightens bolts to an exact force. This is important on engine parts.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Scan for Codes and Confirm the Repair

• Use an OBD-II scan tool to check for trouble codes before taking anything apart.
• Look especially for camshaft/crankshaft correlation codes, misfire codes, or oil control solenoid codes.
• Clear codes only after writing them down.
• Pro tip: Diagnose first, replace second.

Step 2: Disconnect the Battery

• Use a 10mm socket to loosen the negative battery terminal.
• Move the cable aside so it cannot spring back onto the battery post.

Step 3: Raise and Secure the Front if Needed

• Use a floor jack rated 3-ton minimum at the approved front lift point.
• Set the truck onto jack stands rated 3-ton minimum.
• Keep wheel chocks behind the rear tires.

Step 4: Drain Coolant

• Place a drain pan under the radiator drain area.
• Open the drain carefully by hand or with pliers if needed.
• Remove the coolant reservoir cap slowly after pressure is gone.
• Store old coolant safely. It is toxic to people and animals.

Step 5: Remove Intake Ducting and Engine Covers

• Use an 8mm socket to loosen the intake tube clamps.
• Use a trim clip removal tool to remove any plastic retainers.
• Lift the engine cover straight up by hand.

Step 6: Remove the Cooling Fan and Shroud

• Use a fan clutch wrench set to loosen the mechanical fan clutch.
• Use a 10mm socket to remove fan shroud fasteners.
• Lift the fan and shroud upward together if access allows.
• Pro tip: Protect the radiator fins.

Step 7: Remove the Serpentine Belt

• Use a serpentine belt tool on the belt tensioner.
• Rotate the tensioner to release belt tension.
• Slide the belt off the pulleys and remove it.
• Take a photo of the belt routing before removal.

Step 8: Remove Front Accessories and Brackets

• Use 10mm, 13mm, and 15mm sockets to remove front accessory brackets blocking the timing cover.
• Move wiring harnesses aside carefully by hand.
• Do not pull on wires. Release connectors by pressing their lock tabs.

Step 9: Remove the Water Pump

• Use a 10mm socket and 13mm socket to remove the water pump bolts.
• Pull the water pump straight forward.
• Use a plastic gasket scraper to clean the gasket surface.
• Do not gouge the aluminum surface.

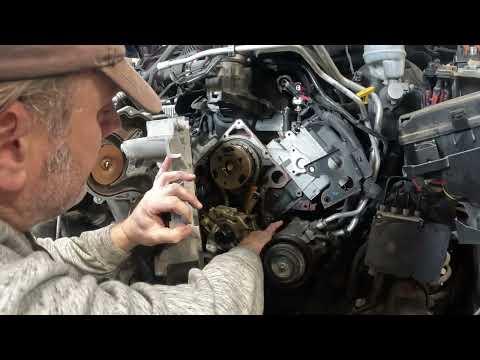

Step 10: Remove the Harmonic Balancer

• Use a crankshaft holding tool to keep the crankshaft from turning.
• Use a 24mm socket and 1/2-inch drive breaker bar to loosen the crankshaft bolt.
• Use a harmonic balancer puller to pull the balancer straight off the crankshaft.
• Do not pry behind the balancer. Prying can damage the timing cover.

Step 11: Remove Valve Covers for Timing Verification

• Use a 5/8-inch spark plug socket if spark plugs need to be removed for easier engine turning.
• Use 8mm and 10mm sockets to remove ignition coil and valve cover fasteners.
• Lift the valve covers off carefully.
• Keep dirt out of the cylinder head openings.

Step 12: Remove the Timing Cover

• Use 8mm, 10mm, 13mm, and 15mm sockets to remove all timing cover bolts.
• Note bolt locations because lengths can vary.
• Gently break the seal with a plastic gasket scraper.
• Remove the timing cover from the engine.

Step 13: Set Engine to Top Dead Center

• Use a 24mm socket on the crankshaft bolt area to rotate the engine clockwise by hand.
• Top dead center means cylinder #1 is at the top of its compression stroke.
• Align the factory timing marks on the crankshaft sprocket and camshaft sprocket.
• Do not rotate the engine backward.

Step 14: Remove the Old Timing Chain Components

• Use a 10mm socket to remove timing guide and tensioner fasteners.
• Use a 15mm socket or specified socket size to remove cam sprocket fastener if required by the kit.
• Remove the timing chain, tensioner, guides, and sprockets as a matched set.
• Keep the crankshaft and camshaft from moving once the chain is removed.

Step 15: Install the New Timing Chain Kit

• Use your hands to place the new crankshaft sprocket and camshaft sprocket in position.
• Install the timing chain with the colored chain links aligned to the factory timing marks.
• Use a 10mm socket to install the new guides and tensioner.
• Torque guide and tensioner bolts to the specification included with the timing kit or current service data.
• Do not guess torque on timing components.

Step 16: Verify Timing Alignment

• Use a 24mm socket to rotate the crankshaft clockwise two full turns by hand.
• Stop if you feel hard resistance. Do not force it.
• Recheck that the timing marks return to the correct alignment.
• If marks are off, remove the chain and correct the alignment before continuing.

Step 17: Reinstall the Timing Cover

• Use a plastic gasket scraper to clean all sealing surfaces.
• Install a new front crankshaft seal into the timing cover.
• Apply RTV engine sealant only at the factory joint areas where the oil pan, block, and timing cover meet.
• Use 8mm, 10mm, 13mm, and 15mm sockets to install timing cover bolts by hand first.
• Tighten evenly with a 3/8-inch drive torque wrench to current service-data specification.

Step 18: Reinstall the Harmonic Balancer

• Use a harmonic balancer installer to press the balancer onto the crankshaft.
• Do not hammer it on. Hammering can damage crankshaft thrust bearings.
• Use a crankshaft holding tool, 24mm socket, and 1/2-inch drive torque wrench to tighten the crankshaft bolt to current service-data specification.

Step 19: Reinstall the Water Pump and Covers

• Install the new water pump gasket.
• Use a 10mm socket and 13mm socket to install the water pump bolts.
• Use a 3/8-inch drive torque wrench to tighten bolts evenly to current service-data specification.
• Reinstall valve covers with new gaskets using 8mm and 10mm sockets.

Step 20: Reinstall Belt, Fan, and Intake

• Use a serpentine belt tool to rotate the tensioner and install the new serpentine belt.
• Check that every belt rib sits correctly in each pulley groove.
• Use a fan clutch wrench set to reinstall the fan clutch.
• Use an 8mm socket to tighten the intake tube clamps.

Step 21: Refill Coolant and Change Oil

• Use a cooling system vacuum fill tool if available to refill the cooling system and reduce air pockets.
• Use a funnel to add the correct OAT coolant premix.
• Replace the engine oil and filter because debris or coolant may have entered during the repair.
• Use the correct oil amount: 7 quarts of 5W-20 synthetic engine oil.

Step 22: Reconnect Battery and First Start

• Use a 10mm socket to reconnect the negative battery cable.
• Start the engine and listen carefully.
• Shut it off immediately if you hear knocking, scraping, or loud chain noise.
• Check for coolant, oil, and vacuum leaks.

---

✅ After Repair

• ✅ Let the engine reach operating temperature while watching the temperature gauge.
• ✅ Use an OBD-II scan tool to check for new trouble codes.
• ✅ Recheck coolant level after the thermostat opens and the engine cools back down.
• ✅ Recheck oil level after the first warm-up cycle.
• ✅ Road test gently for 10-15 minutes, then inspect again for leaks.
• ✅ If cam/crank correlation codes return, stop driving and recheck mechanical timing.

---

💰 DIY vs Shop Cost

Shop Cost: $1,800-$3,200 (parts + labor)

DIY Cost: $350-$850 (parts only)

You Save: $1,000-$2,350 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 8-12 hours.

---
