🔧 Rogue - Thermostat Replacement

You’ll be removing the thermostat housing on the front of the engine, swapping the thermostat and seal, then refilling and bleeding the coolant. This restores correct engine temperature and can fix overheating or poor heater performance.

Difficulty Level: Intermediate | Estimated Time: 2–3 hours

---

⚠️ Safety & Precautions

• 🔥 Only work on the cooling system when the engine is completely cool to avoid burns from hot coolant.
• 🧪 Coolant is poisonous; avoid skin contact and keep away from children and animals.
• 🧯 Disconnect the negative battery terminal if you are nervous about working near electrical connectors.
• 🚗 If you raise the front of your Rogue, always support it with jack stands; never rely only on a floor jack.
• ♻️ Collect and dispose of old coolant properly according to local rules.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🧰 Metric socket set (8mm–14mm)
• 🧰 3/8" drive ratchet
• 🧰 3/8" drive torque wrench (5–80 ft-lbs range)
• 🧰 6" socket extension
• 🧰 10mm combination wrench
• 🧰 Flathead screwdriver (medium)
• 🧰 Phillips screwdriver
• 🧰 Hose clamp pliers
• 🧰 Long-nose pliers
• 🧰 Plastic trim clip remover
• 🧰 Drain pan (8+ liter capacity)
• 🧰 Coolant funnel or spill-free funnel (specialty)
• 🧰 Shop towels or rags
• 🧰 Plastic scraper
• 🧰 Floor jack (rated 2-ton or higher)
• 🧰 Jack stands (rated 2-ton or higher)
• 🧰 Safety glasses
• 🧰 Mechanic gloves
• 🧰 Flashlight or work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Engine thermostat (correct temperature for 2.5L) - Qty: 1
• 🔩 Thermostat rubber seal/O-ring - Qty: 1
• 🔩 Thermostat housing gasket or seal (if separate) - Qty: 1
• 🔩 Nissan-compatible long life coolant (blue, premixed 50/50) - Qty: 2–3 gallons
• 🔩 Hose clamps for lower radiator hose (optional new) - Qty: 2
• 🔩 Anti-seize compound - Qty: small tube
• 🔩 Brake cleaner or degreaser spray - Qty: 1
• 🔩 Shop towels - Qty: 1 pack

---

📋 Before You Begin

• Park your Rogue on a flat surface, set the parking brake, and let the engine cool for at least 1 hour.
• Turn the ignition off and remove the key; make sure the blower fan and all accessories are off.
• If desired, disconnect the negative battery terminal using a 10mm wrench to avoid accidental shorts.
• Make sure you have enough new coolant on hand before draining the old coolant.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and secure the front (optional but helpful)

• Use a floor jack to lift the front of your Rogue at the front jacking point.
• Place jack stands securely under the front pinch welds or frame points, then gently lower the vehicle onto them.
• Shake the car slightly to confirm it’s stable.

Step 2: Remove the lower engine splash shield

• Use a plastic trim clip remover to remove the plastic clips holding the front lower splash shield.
• Use a 10mm socket and ratchet to remove any small bolts along the edge.
• Lower the shield and set it aside.

Step 3: Drain the coolant to below thermostat level

• Place the drain pan under the radiator drain plug (bottom of radiator, driver side).
• Use a Phillips screwdriver or your fingers (depending on plug style) to open the radiator drain plug slowly.
• Remove the coolant reservoir cap by hand to let air in so coolant drains faster.
• Let coolant drain until it slows to a drip, then close the drain plug. Use a Phillips screwdriver and tighten snugly to about 9–10 Nm (80–90 in-lbs) if using a torque wrench.
• Do not overtighten the plastic drain plug.

Step 4: Remove air intake ducting for access

• Open the hood.
• Use a 10mm socket to remove any bolts holding the plastic air intake snorkel near the radiator support.
• Use a flathead screwdriver to loosen any hose clamps and remove the ducting as needed to see the front of the engine and lower radiator hose area.
• Take a quick photo so reassembly is easy.

Step 5: Locate the thermostat housing and prepare the area

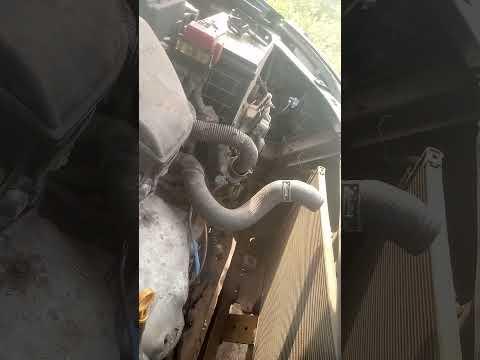

• The thermostat housing is where the lower radiator hose meets the engine block at the front of the engine.
• Use a flashlight to clearly see the housing and bolts.
• Lay shop towels under the area to catch any remaining coolant spill when the hose is removed.

Step 6: Remove the lower radiator hose from the thermostat housing

• Use hose clamp pliers to squeeze and slide the spring clamp (or flathead screwdriver if it is a screw-type clamp) away from the thermostat housing.
• Gently twist the hose by hand or with long-nose pliers to break it free, then pull it off the thermostat housing.
• Allow any remaining coolant to drain into the drain pan.
• If the hose is stuck, twist not pry.

Step 7: Disconnect any sensor and remove thermostat housing

• If there is a coolant temperature sensor connector on or near the housing, press the tab and unplug it by hand. Use long-nose pliers if needed to gently help the tab.
• Use a 10mm socket, extension, and ratchet to remove the housing bolts (typically 2 or 3 bolts).
• Carefully pull the thermostat housing away from the engine. Some coolant will spill; keep the drain pan under it.

Step 8: Remove the old thermostat

• Note how the thermostat is oriented (which side faces out and the position of the small jiggle pin/air bleed hole).
• Pull the old thermostat and seal out by hand.
• Use a plastic scraper to gently clean the sealing surface on the engine side. Do not gouge the metal.
• Wipe the area clean with shop towels and a bit of brake cleaner if needed.

Step 9: Install the new thermostat and seal

• Fit the new rubber seal/O-ring onto the new thermostat as designed (some seals fit around the edge; others sit in a groove).
• Install the thermostat into the engine with the correct side facing out. The jiggle pin or small bleed hole should usually be at the top (12 o’clock position) unless instructions with the part say otherwise.
• Match the orientation of the old thermostat.

Step 10: Reinstall the thermostat housing

• Make sure the housing sealing surface is clean and dry.
• If your housing uses a separate gasket, position the new gasket carefully on the housing.
• Slide the housing onto the thermostat and start all bolts by hand to avoid cross-threading.
• Use a 10mm socket and ratchet to snug the bolts evenly in a crisscross pattern.
• Use a torque wrench with 10mm socket to tighten the housing bolts to 10 Nm (89 in-lbs).
• Even torque helps prevent leaks.

Step 11: Reattach the lower radiator hose

• Push the lower radiator hose fully onto the thermostat housing by hand until it seats against the stop.
• Use hose clamp pliers or a flathead screwdriver (depending on clamp type) to move the clamp back over the hose and onto the fitting bead.
• Make sure the clamp is centered over the raised bead for a proper seal.

Step 12: Reconnect the sensor and air intake ducting

• Reconnect any coolant temperature sensor connector by hand until it clicks.
• Reinstall the air intake ducting the way it came off.
• Use a 10mm socket to reinstall any bolts and a flathead screwdriver to tighten any hose clamps.

Step 13: Reinstall the lower engine splash shield

• Position the splash shield back under the front of your Rogue.
• Use a 10mm socket to install the bolts.
• Press the plastic clips back in by hand, using a plastic trim clip remover only if needed to help guide them.

Step 14: Lower the vehicle

• Use the floor jack to lift the front slightly and remove the jack stands.
• Carefully lower the Rogue back onto the ground.

Step 15: Refill the coolant

• Make sure the radiator drain plug is closed.
• Install a coolant funnel on the coolant reservoir (this Rogue uses a pressurized reservoir).
• Slowly pour Nissan-compatible premixed coolant into the reservoir until it reaches the MAX line and the funnel stays partially filled.
• Pour slowly to reduce trapped air.

Step 16: Bleed air from the system

• Set the cabin heater to full HOT and the fan to low speed (ignition ON, engine running later).
• Start the engine and let it idle with the reservoir cap/funnel in place.
• Watch the coolant level in the funnel; as the engine warms, you’ll see air bubbles coming up.
• Occasionally squeeze the upper and lower radiator hoses by hand to help burp trapped air.
• When the engine reaches normal operating temperature, the lower radiator hose should start to feel warm, showing the thermostat has opened.
• Keep adding coolant as needed to maintain the level near the MAX line.

Step 17: Final coolant level set and cap installation

• Once bubbles mostly stop and the heater blows steadily warm air inside, turn the engine off and let it cool completely (at least 30–60 minutes).
• After it cools, check the reservoir level. Top off with coolant to the MAX line if needed using the coolant funnel.
• Remove the funnel and install the reservoir cap firmly by hand.

Step 18: Reconnect battery (if disconnected) and clean up

• Reconnect the negative battery cable using a 10mm wrench and tighten snugly.
• Wipe any spilled coolant from hoses and components with shop towels.
• Pour used coolant from the drain pan into sealed containers for proper disposal.

---

✅ After Repair

• Start the engine, let it reach normal temperature, and confirm the temperature gauge stays in the normal range.
• Check for leaks around the thermostat housing, lower radiator hose, and radiator drain plug while the engine is running.
• Verify the cabin heater blows hot air with the temperature set to HOT.
• After your first drive (10–20 km), let the engine cool and recheck coolant level; top off if needed.
• Inspect again in a few days for any small leaks or level changes.

---

💰 DIY vs Shop Cost

Shop Cost: $350–$550 (parts + labor)

DIY Cost: $60–$120 (parts only)

You Save: $230–$490 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 1.5–2.0 hours.

---
