🔧 Optima - Thermostat Replacement

The thermostat controls coolant flow between the engine and radiator. Replacement is needed if your Optima overheats, warms up too slowly, has weak cabin heat, or stores a thermostat-related fault such as P0128.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

Assumption: This procedure is for the stock 2.4L naturally aspirated engine.

---

⚠️ Safety & Precautions

• Allow the engine to become completely cold before opening the cooling system. Hot coolant can cause severe burns.
• Support your Optima with jack stands. Never work underneath a vehicle supported only by a floor jack.
• Coolant is poisonous. Keep it away from children and animals, and clean spills immediately.
• Do not allow coolant to contact the accessory drive belt or electrical connectors.
• Battery disconnection is not normally required for this repair.
• Do not mix conventional green coolant with Kia-compatible phosphate-based coolant.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 3/8-inch drive ratchet
• 3/8-inch drive extension set
• 10mm socket
• 12mm socket
• 3/8-inch drive torque wrench rated 10-80 Nm
• Phillips No. 2 screwdriver
• 6mm flat-blade screwdriver
• Hose-clamp pliers
• Plastic gasket scraper
• 10-liter coolant drain pan
• Cooling-system spill-free funnel kit (specialty)
• Floor jack rated 2-ton minimum
• Jack stands rated 2-ton minimum
• Wheel chocks
• Nitrile gloves
• Safety glasses
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine coolant thermostat - Qty: 1
• Thermostat seal or O-ring - Qty: 1
• Kia-compatible phosphate-based Asian vehicle coolant, 50/50 premixed - Qty: 8 liters

---

📋 Before You Begin

• Park your Optima on level ground, select Park, apply the parking brake, and let the engine cool completely.
• Place wheel chocks securely behind both rear tires.
• Record the coolant temperature or warning symptoms before starting so you can compare them after the repair.
• No infotainment service mode or scan-tool command is required.
• Use a replacement thermostat supplied with its correct molded seal. Do not apply RTV silicone unless the replacement-part instructions specifically require it.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and Support the Front

• Use the floor jack at the front-center lifting point and raise your Optima enough to reach the lower engine cover.
• Place the jack stands beneath the reinforced front side support points, then lower the vehicle carefully onto them.
• Wear safety glasses whenever you are underneath the vehicle.

Step 2: Remove the Lower Engine Cover

• Use the 10mm socket, ratchet, and Phillips No. 2 screwdriver to remove the bolts and retainers holding the lower engine cover.
• Support the cover with one hand while removing the final fastener, then lower it out of the way.
• Keep the fasteners arranged by location because their lengths may differ.

Step 3: Drain the Coolant

• Confirm the engine is cold, then slowly remove the radiator cap by hand.
• Position the 10-liter drain pan below the radiator drain fitting.
• Open the plastic radiator drain fitting carefully by hand. If needed, use the 6mm flat-blade screwdriver with very light pressure.
• Allow the coolant to drain until the flow stops, then close the fitting by hand until snug. Do not overtighten the plastic fitting.
• Save reusable coolant only in a clean container.

Step 4: Disconnect the Lower Radiator Hose

• Locate the thermostat coolant inlet where the lower radiator hose attaches to the engine.
• Use hose-clamp pliers to compress the spring clamp and slide it several centimeters back along the hose.
• Use your gloved hands to twist the hose gently and pull it from the inlet. Catch the remaining coolant in the drain pan.
• If the hose is stuck, use the 6mm flat-blade screwdriver only to lift the hose edge slightly. Do not gouge the aluminum fitting.

Step 5: Remove the Thermostat Inlet

• Use the 12mm socket, extension, and ratchet to remove the coolant-inlet mounting bolts.
• Pull the inlet away from the engine carefully. Note the thermostat’s direction and the position of its air-bleed pin before removal.
• Remove the thermostat and its seal by hand.
• Some coolant will remain behind the inlet, so keep the 10-liter drain pan underneath the work area.

Step 6: Clean and Inspect the Sealing Surfaces

• Use the plastic gasket scraper and shop towels to remove old seal residue from the inlet and engine mating surfaces.
• Inspect the inlet for cracks, corrosion, and distortion. Replace it if damaged.
• Do not use a metal scraper or abrasive disc. Scratches can create a coolant leak.

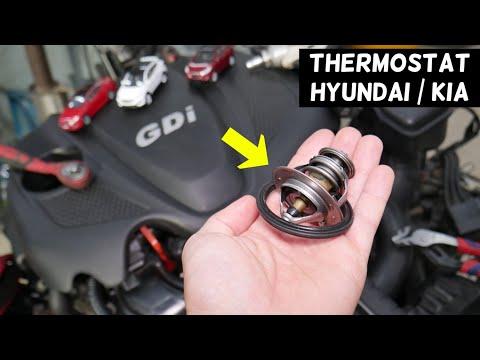

Step 7: Install the New Thermostat

• Fit the new seal or O-ring onto the replacement thermostat by hand.
• Install the thermostat with the temperature-sensing wax element facing the engine.
• Position the air-bleed pin, also called the jiggle valve, at the top. This small valve lets trapped air escape during filling.
• Seat the thermostat and seal evenly. Do not pinch or twist the seal.

Step 8: Reinstall the Coolant Inlet

• Position the coolant inlet without disturbing the thermostat.
• Start all mounting bolts by hand to prevent crossed threads.
• Use the 12mm socket and torque wrench to tighten the inlet bolts evenly to 19.6 Nm (14 ft-lbs).
• Do not apply sealant to a molded rubber thermostat seal.

Step 9: Reconnect the Radiator Hose

• Push the lower radiator hose fully onto the inlet by hand until it reaches its original seated position.
• Use hose-clamp pliers to return the spring clamp to its original location behind the raised bead on the inlet.
• Check that the hose is not twisted and the clamp sits squarely around it.

Step 10: Refill the Cooling System

• Install the cooling-system spill-free funnel on the radiator filler neck. A spill-free funnel holds coolant above the radiator while trapped air escapes.
• Pour Kia-compatible 50/50 premixed coolant slowly into the funnel until the radiator remains full.
• Fill the coolant reservoir by hand to the “F” or “MAX” line.
• Do not exceed approximately 8 liters total. The actual refill amount will be lower if the engine block was not fully drained.

Step 11: Bleed Trapped Air

• With the spill-free funnel installed, start the engine and set the climate controls to maximum heat with the blower on low.
• Wear gloves and squeeze the upper radiator hose gently by hand several times as the engine warms.
• Add coolant through the funnel whenever the level drops. Keep hands, clothing, and tools away from the cooling fans and drive belt.
• Wait until the upper radiator hose becomes hot and cabin heat is steady, indicating the thermostat has opened.
• Watch for air bubbles and continue until bubbling stops. Do not allow the temperature gauge to enter the hot range.

Step 12: Close the System and Check for Leaks

• Turn the engine off and allow it to cool enough for safe handling.
• Use the spill-free funnel’s stopper, remove the funnel, and install the radiator cap securely by hand.
• Use a flashlight from the spill-free funnel kit area only if supplied; otherwise visually inspect the thermostat inlet, lower hose, and radiator drain fitting for leaks.
• Top the reservoir to the “F” or “MAX” line with 50/50 premixed coolant.

Step 13: Reinstall the Lower Engine Cover

• Lift the lower engine cover into position and start all retainers by hand.
• Use the 10mm socket, ratchet, and Phillips No. 2 screwdriver to secure the cover. Tighten the small cover fasteners only until snug.
• Use the floor jack to raise your Optima slightly, remove the jack stands, and lower the vehicle to the ground.

---

✅ After Repair

• Run the engine until fully warm and verify the temperature gauge remains stable near its normal position.
• Confirm that the cabin heater produces steady hot air. Intermittent heat can indicate trapped air or low coolant.
• Inspect the thermostat inlet, hose connection, radiator drain fitting, and ground beneath the vehicle for leaks.
• After the engine becomes completely cold, recheck the reservoir and adjust it to the “F” or “MAX” line.
• Recheck the coolant level for the next two or three cold-start cycles.
• If the engine overheats, shut it off immediately. Do not continue driving with an air pocket, leak, or inoperative cooling fan.
• Dispose of old coolant through an authorized recycling or hazardous-waste facility. Never pour it onto the ground or into a drain.

---

💰 DIY vs Shop Cost

Shop Cost: ₹9,000-₹18,000 (parts + labor)

DIY Cost: ₹3,500-₹8,000 (parts only)

You Save: ₹5,500-₹10,000 by doing it yourself!

Local labor rates vary. This repair takes a shop approximately 1.5-2.5 hours.

---
