🔧 Suburban - Thermostat Replacement

The thermostat on your Suburban is installed in the coolant inlet housing at the lower front of the engine, where the lower radiator hose connects to the water pump. Replacement requires draining some coolant, removing the hose and housing, then carefully refilling the cooling system without trapping air.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the engine become completely cold before opening the coolant reservoir. Hot coolant can cause severe burns.
• 🛑 Support your Suburban with jack stands. Never work underneath a vehicle supported only by a floor jack.
• 🧤 Wear gloves and safety glasses because DEX-COOL coolant is toxic.
• 🐾 Collect every spill immediately. Coolant is poisonous to people and animals.
• 🔋 Battery disconnection is not required for this repair.
• 🚫 Do not run the engine with the coolant reservoir empty.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 15mm socket
• 3/8-inch drive ratchet
• 3/8-inch drive 6-inch extension
• 3/8-inch drive torque wrench rated 5-80 ft-lbs
• Hose-clamp pliers (specialty)
• Plastic gasket scraper
• Flat-blade screwdriver
• Coolant drain pan rated 4-gallon minimum
• Spill-free coolant funnel (specialty)
• Floor jack rated 3-ton minimum
• Jack stands rated 3-ton minimum
• Wheel chocks
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine coolant thermostat and housing assembly - Qty: 1
• Thermostat housing seal - Qty: 1
• DEX-COOL 50/50 premixed coolant - Qty: 2 gallons

Use only a thermostat calibrated for the original factory opening temperature. The replacement assembly may include the seal; verify this before purchasing a separate one.

---

📋 Before You Begin

• 🅿️ Park your Suburban on firm, level ground. Shift into Park and apply the parking brake.
• 🧱 Place wheel chocks securely behind both rear wheels.
• ❄️ Allow the engine to cool for several hours. The upper radiator hose should feel cool and soft before opening the system.
• 🚙 Lift the front with the 3-ton floor jack at the front frame crossmember, then place 3-ton jack stands beneath the approved frame lifting points.
• 🧪 Use orange DEX-COOL coolant mixed 50/50 with clean water. Do not mix it with conventional green coolant.
• 📦 Keep the thermostat housing sealed until installation so its sealing surfaces remain clean.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Release Residual Cooling-System Pressure

• Put on nitrile gloves and safety glasses.
• Cover the coolant reservoir cap with a shop towel.
• Turn the cap slowly counterclockwise by hand. Stop if pressure escapes, then wait until it stops before removing the cap.
• Never open a warm cooling system.

Step 2: Remove the Lower Splash Shield

• Position the 4-gallon drain pan under the front of the engine.
• Use a 15mm socket, 3/8-inch ratchet and 6-inch extension to remove the lower splash-shield fasteners.
• Support the shield by hand while removing its final fastener, then lower it out of the way.
• Keep the fasteners organized for reassembly.

Step 3: Drain Enough Coolant

• Place the drain pan beneath the radiator drain outlet.
• Use a flat-blade screwdriver to open the radiator drain valve slowly, if equipped and accessible.
• If the valve is not accessible, place the pan below the lower radiator hose and use hose-clamp pliers to move its clamp back. Carefully loosen the hose enough to drain the coolant.
• Drain until coolant stops flowing from the thermostat-housing level, then close the drain valve or reinstall the hose.
• Do not force a plastic drain valve. A damaged valve can create a persistent leak.

Step 4: Locate the Thermostat Housing

• Follow the lower radiator hose toward the engine. It connects to the thermostat housing at the lower front of the water pump.
• Use shop towels to clean dirt from around the housing before opening it.
• Confirm that the drain pan remains directly below the housing.

Step 5: Disconnect the Lower Radiator Hose

• Use hose-clamp pliers to compress the spring clamp and slide it several inches back along the hose.
• Twist the hose gently by hand to break its seal, then pull it straight off the thermostat housing.
• Use a flat-blade screwdriver only to lift the hose edge gently. Do not gouge the plastic or aluminum connection.
• Allow the remaining coolant to drain completely into the pan.
• Twist first; pulling alone can damage the hose.

Step 6: Remove the Thermostat Housing

• Use a 10mm socket, 3/8-inch ratchet and 6-inch extension to loosen the thermostat-housing bolts evenly.
• Support the housing by hand while removing the final bolt.
• Remove the housing and thermostat assembly. Note its installed direction before moving it away.
• Remove the old housing seal and discard it.

Step 7: Clean and Inspect the Mounting Surface

• Use a plastic gasket scraper to remove seal residue from the water-pump mating surface.
• Wipe the surface with a clean shop towel. Keep debris out of the open coolant passage.
• Inspect the lower radiator hose for cracks, swelling or oil-softened rubber. Replace it if damaged.
• Do not use a metal scraper or abrasive power tool on the aluminum surface.

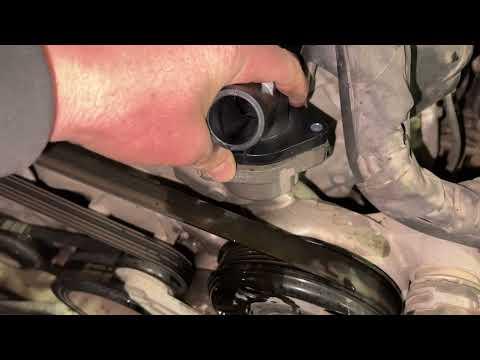

Step 8: Install the New Thermostat Assembly

• Fit the new seal into the thermostat housing groove. Install it dry unless the part manufacturer specifically directs otherwise.
• Position the new thermostat assembly in the same direction as the original.
• Hold the housing squarely against the water pump and start every bolt by hand.
• Use a 10mm socket and torque wrench to tighten the housing bolts evenly to 10 Nm (89 in-lbs).
• Do not overtighten the housing. Excessive torque can distort the seal or damage the threads.

Step 9: Reconnect the Lower Radiator Hose

• Push the hose fully over the thermostat-housing neck by hand.
• Use hose-clamp pliers to move the original spring clamp back to its previous position behind the raised bead.
• Check that the hose is not twisted and the clamp sits squarely around it.

Step 10: Reinstall the Splash Shield

• Lift the splash shield into position by hand.
• Start all fasteners by hand to prevent cross-threading.
• Use a 15mm socket and 3/8-inch ratchet to tighten the fasteners securely to their original seated position.
• Do not overtighten fasteners installed through plastic panels.

Step 11: Lower the Vehicle

• Use the 3-ton floor jack to raise your Suburban slightly off the jack stands.
• Remove both 3-ton jack stands, then lower the vehicle slowly to level ground.
• Leave the wheel chocks installed during coolant filling.

Step 12: Refill the Cooling System

• Install the spill-free coolant funnel on the coolant reservoir.
• Slowly add 50/50 premixed DEX-COOL until the coolant reaches the reservoir's cold-fill mark.
• Pause periodically so trapped air can escape through the funnel.
• Squeeze the upper radiator hose gently by hand several times to help move air toward the reservoir.
• Do not fill above the cold-fill mark after the system settles.

Step 13: Purge Air and Check Operation

• Set the cabin temperature controls to full heat and the blower to low.
• Start the engine with the spill-free funnel installed. Let it idle while watching the coolant level.
• Add 50/50 premixed DEX-COOL as the level falls, keeping coolant visible in the funnel.
• Watch the temperature gauge continuously. Shut the engine off if it rises rapidly toward the hot zone.
• When the upper radiator hose becomes hot and cabin heat remains steady, briefly raise engine speed to approximately 2,000 rpm several times.
• Turn the engine off once air bubbles stop. Let it cool completely before removing the funnel and installing the reservoir cap.

---

✅ After Repair

• 🔍 Inspect the thermostat housing, hose connection and radiator drain point for leaks while the engine is running.
• 🌡️ Verify that the temperature gauge stabilizes normally and does not move toward the hot zone.
• 🔥 Confirm that the heater produces steady warm air. Heat that alternates between warm and cold can indicate trapped air.
• ❄️ Let the engine cool completely, then check the reservoir and adjust it to the cold-fill mark with 50/50 premixed DEX-COOL.
• 🛣️ Take a short test drive while monitoring the temperature gauge, then inspect again for leaks.
• 📅 Recheck the cold coolant level the next morning. A small final adjustment may be necessary.
• ♻️ Transfer used coolant into a sealed container and take it to an automotive-fluid recycling facility.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$600 (parts + labor)

DIY Cost: $75-$160 (parts only)

You Save: $275-$440 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.8 hours.

---
