🔧 Corolla - Thermostat Replacement

Replacing the thermostat on your Corolla means draining some engine coolant, removing the thermostat housing, installing a new thermostat and seal, then refilling and bleeding the cooling system. The thermostat controls coolant flow so the engine warms up properly and does not overheat.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Only work on a fully cool engine. Hot coolant can spray out and cause serious burns.
• ⚠️ Wear safety glasses and gloves when draining coolant.
• ⚠️ Keep coolant away from pets and children. It is toxic and often smells sweet.
• ⚠️ Do not remove the radiator cap or reservoir cap while the engine is hot.
• ⚠️ Battery disconnect is not required for this repair.
• ⚠️ Catch and recycle old coolant properly. Do not pour it on the ground or into drains.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• Ratchet wrench 3/8-inch drive
• 3/8-inch drive extension 6-inch
• Torque wrench 3/8-inch drive inch-pound
• Flathead screwdriver 1/4-inch tip
• Hose clamp pliers
• Drain pan 2-gallon minimum
• Funnel spill-free coolant fill kit
• Plastic trim clip remover
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine coolant thermostat - Qty: 1
• Thermostat seal or O-ring - Qty: 1
• Toyota-compatible pink Super Long Life coolant 50/50 premix - Qty: 1-2 gallons

---

📋 Before You Begin

• Park your Corolla on level ground and let the engine cool completely.
• Set the parking brake and open the hood.
• Make sure the ignition is OFF and the key is away from the vehicle.
• Place a drain pan under the radiator drain area before opening the cooling system.
• A thermostat is a spring-loaded valve that opens when the engine reaches operating temperature.
• A spill-free coolant fill kit is a funnel that locks onto the radiator or reservoir neck to help remove air bubbles.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the Lower Engine Cover

• Use a 10mm socket and ratchet wrench 3/8-inch drive to remove the lower engine cover fasteners if equipped.
• Use a plastic trim clip remover to release any plastic clips without breaking them.
• Set the cover and fasteners aside in order.
• Tip: Take a photo first.

Step 2: Remove the Coolant Reservoir Cap

• Make sure the engine is fully cool.
• Put on safety glasses and nitrile gloves.
• Slowly loosen the coolant reservoir cap by hand to release any leftover pressure.
• Remove the cap and set it somewhere clean.

Step 3: Drain Some Coolant

• Place the drain pan 2-gallon minimum under the radiator drain area.
• Use a flathead screwdriver 1/4-inch tip or your fingers to carefully open the radiator drain cock if accessible.
• Drain about 1 gallon of coolant, or enough so the thermostat housing area will not spill heavily when opened.
• Close the radiator drain cock snugly by hand or with the flathead screwdriver 1/4-inch tip. Do not overtighten it.
• Tip: Keep coolant clean if reusing.

Step 4: Locate the Thermostat Housing

• Follow the lower radiator hose to the engine. The hose connects to the thermostat housing.
• The thermostat housing is the metal or plastic outlet held to the engine with bolts.
• Use shop towels around the area to catch small coolant drips.

Step 5: Remove the Lower Radiator Hose from the Housing

• Use hose clamp pliers to squeeze the spring clamp on the lower radiator hose.
• Slide the clamp back on the hose.
• Twist the hose gently by hand to break it loose, then pull it off the thermostat housing.
• If the hose is stuck, use a flathead screwdriver 1/4-inch tip carefully at the hose edge only. Do not gouge the housing.
• Tip: Twist first, then pull.

Step 6: Remove the Thermostat Housing

• Use a 10mm socket, 3/8-inch drive extension 6-inch, and ratchet wrench 3/8-inch drive to remove the thermostat housing bolts.
• Some fasteners or nearby brackets may require a 12mm socket for access.
• Pull the thermostat housing straight away from the engine.
• Expect some coolant to spill into the drain pan 2-gallon minimum.

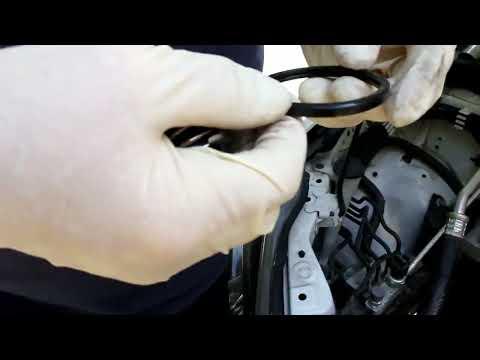

Step 7: Remove the Old Thermostat and Seal

• Pull the old thermostat out by hand.
• Remove the old thermostat seal or O-ring by hand.
• Use shop towels to wipe the sealing surfaces clean.
• Do not scrape aggressively with metal tools. Scratches can cause leaks.

Step 8: Install the New Thermostat

• Install the new thermostat seal or O-ring onto the new engine coolant thermostat.
• Insert the thermostat into the engine in the same direction as the old one.
• If the thermostat has a small jiggle valve or air bleed, position it at the top.
• A jiggle valve is a tiny loose pin that lets trapped air pass through the thermostat.
• Tip: Match the old thermostat orientation.

Step 9: Reinstall the Thermostat Housing

• Place the thermostat housing squarely against the engine by hand.
• Start all bolts by hand first to avoid cross-threading.
• Use a 10mm socket, 3/8-inch drive extension 6-inch, and ratchet wrench 3/8-inch drive to snug the bolts evenly.
• Use a torque wrench 3/8-inch drive inch-pound to tighten the thermostat housing bolts to Torque to 9 Nm (80 in-lbs).
• If any removed bracket fasteners used the 12mm socket, reinstall them and tighten snugly unless a specific bracket torque is provided with the part.

Step 10: Reconnect the Lower Radiator Hose

• Push the lower radiator hose fully onto the thermostat housing by hand.
• Use hose clamp pliers to move the spring clamp back to its original position.
• Make sure the clamp sits behind the raised lip on the housing.
• Wipe the area dry with shop towels so leaks are easy to spot later.

Step 11: Refill the Cooling System

• Install the funnel spill-free coolant fill kit on the coolant fill point.
• Pour Toyota-compatible pink Super Long Life coolant 50/50 premix slowly into the funnel.
• Fill until the level stabilizes.
• Squeeze the upper and lower radiator hoses gently by hand to help move trapped air.

Step 12: Bleed Air from the Cooling System

• Leave the funnel spill-free coolant fill kit installed.
• Start the engine and set the cabin heat to maximum temperature with low fan speed.
• Let the engine idle while watching the coolant level in the funnel.
• Add Toyota-compatible pink Super Long Life coolant 50/50 premix as the level drops.
• When the thermostat opens, the coolant level may drop suddenly and the lower radiator hose will become warm.
• Watch for bubbles. When bubbling mostly stops and heat blows warm from the vents, air is mostly purged.
• Do not leave the vehicle unattended while running.

Step 13: Check for Leaks and Set Coolant Level

• Turn the engine off.
• Use safety glasses and keep hands away from hot fans and belts.
• Inspect the thermostat housing and hose connection with a light and shop towels.
• Remove the funnel spill-free coolant fill kit according to the funnel instructions.
• Install the coolant reservoir cap by hand.
• Set the coolant level in the reservoir to the FULL mark once the engine cools.

Step 14: Reinstall the Lower Engine Cover

• Position the lower engine cover under your Corolla.
• Install any plastic clips by hand.
• Use a 10mm socket and ratchet wrench 3/8-inch drive to reinstall the fasteners.
• Tighten them snugly. Do not overtighten plastic cover hardware.

---

✅ After Repair

• ✅ Test drive your Corolla for 10-15 minutes while watching the temperature gauge.
• ✅ Make sure the cabin heater blows warm air after the engine warms up.
• ✅ Park on level ground and check for coolant leaks under the front of the vehicle.
• ✅ Let the engine cool completely, then recheck the coolant reservoir level.
• ✅ Top off with Toyota-compatible pink Super Long Life coolant 50/50 premix if needed.
• ✅ If the temperature gauge rises above normal, shut the engine off and let it cool before checking coolant level again.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $45-$110 (parts only)

You Save: $140-$340 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
