🔧 Ridgeline - Starter Motor Replacement

The starter motor sits on the transmission bellhousing below the battery and air-cleaner assembly. Replacing it requires removing those components, disconnecting two starter wires, and transferring any wire retainers to the new starter.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• Disconnect the negative battery terminal before touching the starter. Its main cable remains live otherwise and can cause a severe short circuit.
• Allow the engine and exhaust components to cool completely.
• Wear safety glasses and insulated work gloves.
• Never test the starter while it is loose from the transmission.
• Support the starter during removal. It is heavier than it appears.
• Do not pull or pry on the battery current sensor attached to the negative terminal.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• 3/8-inch-drive ratchet
• 3/8-inch-drive 6-inch extension
• 3/8-inch-drive torque wrench rated 10-80 Nm
• Flat-blade screwdriver
• Trim-clip removal tool
• Battery terminal puller (specialty)
• Digital multimeter rated CAT III
• Magnetic parts tray
• Insulated work gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor for 3.5L V6 - Qty: 1

---

📋 Before You Begin

• Park your Ridgeline on level ground, select Park, apply the parking brake, and switch off all electrical accessories.
• Open the hood and keep the key or keyless remote away from the vehicle.
• Wait at least three minutes after switching the ignition off before disconnecting the battery.
• Battery disconnection may reset the clock, saved audio settings, and automatic window functions.
• If possible, use a digital multimeter before starting. A fully charged battery should measure approximately 12.6 volts with the engine off.
• The replacement starter should match the original unit’s electrical terminal positions and mounting flange.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the Battery

• Use a 10mm socket and ratchet to loosen the negative terminal clamp.
• Lift the negative clamp straight off. Use a battery terminal puller only if it is stuck; this tool lifts the clamp without damaging the battery post.
• Move the negative cable aside so it cannot spring back onto the battery.
• Use the 10mm socket to disconnect the positive terminal, then close its protective cover over the cable end.
• Do not twist or pry against the battery current sensor on the negative cable.

Step 2: Remove the Air-Intake Duct

• Use a flat-blade screwdriver to loosen the intake-hose clamp at the air-cleaner housing.
• Use the screwdriver to loosen the clamp at the throttle-body end of the duct.
• Release the breather hose by hand. Use a trim-clip removal tool for any attached harness retainers.
• Lift the intake duct out without pulling on nearby wires.
• Photograph hose routing before removal.

Step 3: Remove the Battery

• Use a 10mm socket and ratchet to loosen the battery hold-down nuts.
• Remove the hold-down bar and place its hardware in a magnetic parts tray.
• Lift the battery straight upward with both hands. Keep it upright because battery electrolyte is corrosive.

Step 4: Remove the Battery Tray and Air Cleaner

• Unplug the air-cleaner electrical connector by pressing its locking tab. Do not pull on the wires.
• Use a trim-clip removal tool to release harness clips from the air-cleaner housing and battery tray.
• Use a 10mm socket, extension, and ratchet to remove the air-cleaner housing fasteners.
• Lift out the air-cleaner housing and cover the exposed intake opening with a clean lint-free cloth.
• Use a 10mm socket and extension to remove the battery-tray fasteners, then lift out the tray.
• Do not allow bolts, dirt, or tools to enter the exposed intake opening.

Step 5: Verify the Starter Has No Power

• Set the digital multimeter to DC volts. Touch the black probe to clean engine metal and the red probe to the starter’s large terminal.
• Confirm the reading is 0 volts before removing either starter wire.
• The large terminal is the direct battery feed; the small connector is the solenoid-control wire.

Step 6: Disconnect the Starter Wiring

• Pull back the protective rubber cap from the large starter terminal by hand.
• Use a 12mm socket and ratchet to remove the large cable-terminal nut.
• Lift the cable eyelet off the terminal and position it away from the starter.
• Press the locking tab and unplug the small solenoid connector by its plastic housing.
• Use a trim-clip removal tool to release any starter-harness retainer from its bracket.

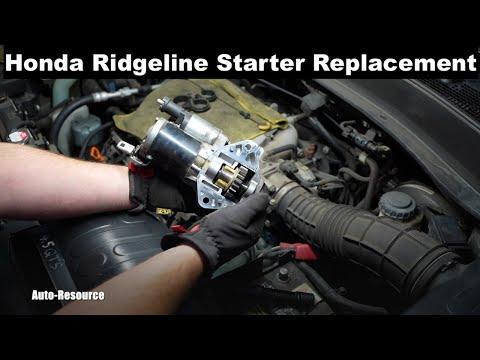

Step 7: Remove the Starter Motor

• Support the starter with one hand.
• Use a 14mm socket, 6-inch extension, and ratchet to remove the two starter mounting bolts.
• Keep track of each bolt’s original location if their lengths differ.
• Pull the starter straight away from the transmission bellhousing, then lift it out through the battery-tray opening.
• Do not pry against the aluminum transmission case.

Step 8: Compare and Position the New Starter

• Place the old and new starters side by side. Confirm that the mounting flange, pinion gear, nose length, and electrical terminals match.
• Transfer any harness bracket from the old starter using the appropriate 10mm or 12mm socket.
• Place the new starter squarely against the bellhousing. It should sit flush without being forced.
• Install both mounting bolts by hand several turns to prevent cross-threading.

Step 9: Tighten the Starter and Connect Its Wires

• Use a 14mm socket and torque wrench to tighten both starter mounting bolts evenly: Torque to 44 Nm (33 ft-lbs).
• Push the small solenoid connector into place until its lock clicks.
• Install the large cable eyelet flat against the starter terminal.
• Use a 12mm socket and torque wrench to tighten the terminal nut: Torque to 9.8 Nm (7.2 ft-lbs).
• Refit the protective rubber cap so the electrical terminal is completely covered.
• Secure all wiring retainers in their original positions.

Step 10: Reinstall the Battery Tray and Air Cleaner

• Use a 10mm socket and ratchet to reinstall the battery tray in its original position.
• Remove the lint-free cloth from the intake opening and confirm nothing has fallen inside.
• Reinstall the air-cleaner housing with the 10mm socket and ratchet.
• Reconnect its electrical connector and secure every harness clip.
• Do not overtighten fasteners installed in plastic components.

Step 11: Reinstall the Battery and Intake Duct

• Lower the battery into the tray with its terminals in their original positions.
• Install the hold-down bar. Use a 10mm socket to tighten its nuts evenly until the battery cannot move; do not crush the battery case.
• Reinstall the intake duct and breather hose.
• Use a flat-blade screwdriver to tighten both intake clamps until the duct cannot rotate. Do not deform the plastic duct.

Step 12: Reconnect the Battery

• Install the positive battery terminal first. Use a 10mm socket and tighten it until the clamp cannot rotate by hand.
• Close the positive-terminal protective cover.
• Install the negative terminal last. Use the 10mm socket and tighten it until the clamp cannot rotate.
• Keep tools from bridging a battery terminal to body metal.

---

✅ After Repair

• Confirm that no tools remain in the engine compartment and that all intake clamps and electrical connectors are secure.
• Turn the ignition on for a few seconds, then start the engine. The starter should crank smoothly without grinding or remaining engaged.
• If the starter does not operate, switch the ignition off immediately and recheck the battery terminals, large starter cable, and small solenoid connector.
• Set the clock and restore saved audio preferences if they were reset.
• Initialize each automatic window if needed: fully close the window, then hold the switch in the UP position for two additional seconds.
• Some warning lights may appear after battery reconnection. Start the engine and drive straight at low speed briefly; normal steering and stability-system initialization should clear them.
• Return the old starter as a core if the replacement supplier charges a refundable core deposit.

---

💰 DIY vs Shop Cost

Shop Cost: ₹25,000-₹45,000 (parts + labor)

DIY Cost: ₹12,000-₹28,000 (parts only)

You Save: ₹8,000-₹20,000 by doing it yourself!

Labor rates around Sonīpat vary considerably. This repair typically takes a professional shop approximately 1-1.5 hours, with additional cost possible for an imported starter.

---
