🔧 HR-V - Starter Motor Replacement

Replacing the starter motor on your HR-V involves disconnecting the battery, removing the air intake and battery area parts for access, then unbolting the starter from the transmission bellhousing. The starter is the electric motor that turns the engine over when you press the START button.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent sparks or accidental starter engagement.
• ⚠️ The starter battery cable is always hot when the battery is connected, so do not work on it with the battery connected.
• ⚠️ Let the engine cool before working near the intake manifold and transmission area.
• ⚠️ Wear safety glasses and gloves; battery acid and sharp brackets can cause injury.
• ⚠️ Keep the key fob away from the vehicle while working so the push-button system cannot wake up unexpectedly.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• 3/8-inch ratchet
• 3/8-inch extension set
• 10mm wrench
• 12mm wrench
• Flat-blade screwdriver
• Needle-nose pliers
• Trim clip removal tool
• Torque wrench rated 5-80 Nm
• Battery terminal brush
• Shop light
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Battery terminal protector spray - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park your HR-V on level ground and set the parking brake.
• Move the shifter to Park and turn the ignition fully OFF.
• Open the hood and allow the engine bay to cool.
• Save radio presets if desired. Battery disconnection may reset some clock or infotainment settings.
• A trim clip removal tool is a small pry tool that removes plastic clips without breaking them.
• Dielectric grease is a non-conductive protective grease used around electrical connectors to keep moisture out.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the Battery

• Use a 10mm wrench to loosen the negative battery terminal clamp.
• Lift the negative cable off the battery post and move it aside so it cannot spring back.
• Use a 10mm wrench to loosen and remove the positive battery terminal if more room is needed.
• Negative cable comes off first.

Step 2: Remove the Battery Hold-Down and Battery

• Use a 10mm socket and 3/8-inch ratchet to remove the battery hold-down nuts.
• Lift off the hold-down bracket and J-hooks.
• Carefully lift the battery straight up and out of the engine bay.
• Set the battery upright on the ground.
• When reinstalling, tighten the battery hold-down evenly until secure; do not crush the battery case.

Step 3: Remove the Air Intake Duct and Air Cleaner Housing

• Use a flat-blade screwdriver to loosen the intake hose clamp at the throttle body.
• Use needle-nose pliers to release any hose clamps attached to the intake tube.
• Use a 10mm socket to remove the air cleaner housing bolts.
• Use a trim clip removal tool to remove any plastic clips holding the intake duct.
• Lift the air cleaner housing and intake duct out together if possible.
• Take a photo before unplugging hoses.

Step 4: Remove the Battery Tray

• Use a 10mm socket, 3/8-inch ratchet, and 3/8-inch extension to remove the battery tray bolts.
• Lift the battery tray out of the engine bay.
• This opens access to the starter mounted at the engine-to-transmission area.

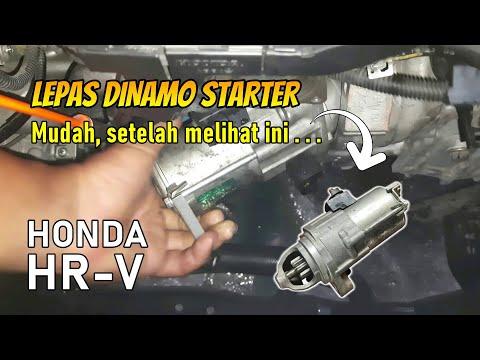

Step 5: Locate the Starter Motor

• Use a shop light to look down toward the transmission bellhousing, which is the large metal case bolted to the engine.
• The starter is a small cylindrical motor with a thick battery cable and a smaller control wire attached.
• Check that the battery is still disconnected before touching the starter wiring.

Step 6: Disconnect the Starter Wiring

• Use your fingers or needle-nose pliers to unplug the small starter control connector.
• Pull on the connector body, not the wire.
• Lift the rubber protective boot from the large starter cable terminal.
• Use a 12mm socket or 12mm wrench to remove the large starter cable nut.
• Move the cable aside so it cannot contact metal.
• During installation, tighten the large starter cable nut to Torque to 9.8 Nm (87 in-lbs).

Step 7: Remove the Starter Mounting Bolts

• Support the starter with one hand so it does not drop when the bolts come out.
• Use a 14mm socket, 3/8-inch ratchet, and 3/8-inch extension to remove the starter mounting bolts.
• There are typically two main mounting bolts holding the starter to the transmission housing.
• Pull the starter straight out from the bellhousing.
• Wiggle gently; do not pry hard.

Step 8: Compare the Old and New Starter

• Place the old and new starter motors side by side on a clean surface.
• Confirm the mounting ears, electrical terminals, and gear nose shape match.
• Use a battery terminal brush to clean corrosion from the cable eyelet if needed.
• Apply a small amount of dielectric grease around the connector seal, not directly on the metal contact surface.

Step 9: Install the New Starter

• Position the new starter into the bellhousing opening by hand.
• Start both mounting bolts by hand first to avoid cross-threading.
• Use a 14mm socket and 3/8-inch ratchet to snug the bolts.
• Use a torque wrench rated 5-80 Nm and 14mm socket to tighten the starter mounting bolts to Torque to 44 Nm (33 ft-lbs).

Step 10: Reconnect the Starter Wiring

• Install the large battery cable onto the starter terminal.
• Use a 12mm socket and torque wrench rated 5-80 Nm to tighten the terminal nut to Torque to 9.8 Nm (87 in-lbs).
• Push the rubber boot fully over the terminal.
• Plug in the small starter control connector until it clicks.

Step 11: Reinstall the Battery Tray

• Set the battery tray back into place.
• Use a 10mm socket, 3/8-inch ratchet, and 3/8-inch extension to install the tray bolts.
• Tighten the tray bolts securely to Torque to 9.8 Nm (87 in-lbs).

Step 12: Reinstall the Air Cleaner Housing and Intake Duct

• Set the air cleaner housing and intake duct back into position.
• Use a 10mm socket to reinstall the air cleaner housing bolts.
• Use a flat-blade screwdriver to tighten the intake hose clamp at the throttle body.
• Use needle-nose pliers to reinstall any hose clamps.
• Use a trim clip removal tool or your fingers to reinstall plastic clips.
• Make sure the intake tube is fully seated so unfiltered air cannot enter the engine.

Step 13: Reinstall the Battery

• Place the battery back into the tray.
• Install the hold-down bracket and J-hooks.
• Use a 10mm socket to tighten the hold-down nuts evenly.
• Reconnect the positive battery terminal first and tighten with a 10mm wrench to Torque to 5.4 Nm (48 in-lbs).
• Reconnect the negative battery terminal last and tighten with a 10mm wrench to Torque to 5.4 Nm (48 in-lbs).
• Spray the terminals lightly with battery terminal protector spray.

Step 14: Final Check Before Starting

• Use a shop light to inspect the starter area for loose tools, loose wires, or disconnected hoses.
• Make sure the intake hose clamp is tight and the air cleaner housing is seated correctly.
• Confirm both battery terminals are tight and cannot rotate by hand.

---

✅ After Repair

• Start your HR-V and listen for a clean, quick crank with no grinding noise.
• If the engine does not crank, stop and recheck the battery terminals, starter cable, and small starter control connector.
• Let the engine idle for a few minutes so the idle system can relearn after battery disconnection.
• Reset the clock and infotainment presets if needed.
• Test drive gently and confirm there are no warning lights.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$750 (parts + labor)

DIY Cost: $180-$380 (parts only)

You Save: $270-$370 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
