🔧 1500 - Starter Motor Replacement

This repair replaces the starter motor, which cranks the engine when you press the Start button. On your 1500 with the 3.6L eTorque mild-hybrid system, the starter is mounted low on the engine and requires careful battery isolation before removal.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the 12-volt battery before touching the starter wiring. The main starter cable is always hot when connected.
• ⚠️ Your 1500 has a mild-hybrid eTorque system. Do not touch or disconnect any orange high-voltage cables or components.
• ⚠️ Let the engine and exhaust cool fully before working underneath. The starter sits near hot engine and exhaust areas.
• ⚠️ Support the truck with jack stands only. Never work under a vehicle supported by a jack alone.
• ⚠️ Wear safety glasses and gloves. Dirt and rust can fall while working under the truck.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 13mm socket
• 15mm socket
• 3/8-inch drive ratchet
• 3/8-inch drive 6-inch extension
• 3/8-inch drive swivel socket adapter
• Torque wrench 10-100 ft-lbs
• Flathead screwdriver
• Trim clip removal tool
• Floor jack rated 3-ton minimum
• Jack stands rated 3-ton minimum
• Wheel chocks
• Battery terminal puller (specialty)
• Mechanic gloves
• Safety glasses
• Shop light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Starter mounting bolts - Qty: 2, replace if damaged or corroded
• Battery terminal protector spray - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park your 1500 on level ground.
• Shift to Park and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Open the hood and let the engine cool completely.
• A battery terminal puller is a small tool that lifts a tight battery cable off the post without twisting or damaging it.
• A torque wrench tightens bolts to the correct tightness so they are not loose or over-tightened.
• Do not disconnect orange eTorque cables. Only disconnect the regular 12-volt battery negative cable.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the 12-Volt Battery

• Use a 10mm socket to loosen the negative battery terminal clamp.
• Lift the negative cable off the battery post. Use a battery terminal puller if it is stuck.
• Move the cable aside so it cannot spring back and touch the battery post.
• Wait at least 5 minutes before working on the starter wiring.
• Take a photo first.

Step 2: Raise and Support the Front of the Truck

• Place wheel chocks behind the rear wheels.
• Use a floor jack rated 3-ton minimum under the front frame crossmember or approved front lift point.
• Raise the front high enough to work safely underneath.
• Place jack stands rated 3-ton minimum under the frame rails.
• Gently lower the truck onto the jack stands and shake the truck lightly to confirm it is stable.

Step 3: Remove the Lower Splash Shield if Equipped

• Use a trim clip removal tool to remove plastic push clips from the lower shield if equipped.
• Use a 10mm socket to remove any small shield bolts.
• Set the shield and fasteners aside in order.
• Keep clips in a cup.

Step 4: Locate the Starter Motor

• Use a shop light and look low on the engine near the transmission bellhousing on the passenger side area.
• The starter is a small cylindrical motor with a large battery cable and a smaller control wire attached.
• Before removal, take a clear picture of the wire routing with your phone.

Step 5: Remove the Starter Electrical Connections

• Use a flathead screwdriver to gently release the locking tab on the small starter control wire connector.
• Pull the connector straight off. Do not pull on the wire itself.
• Use a 13mm socket to remove the nut holding the large battery cable to the starter solenoid.
• The solenoid is the smaller cylinder attached to the starter that moves the starter gear and powers the starter motor.
• Move the large cable aside without bending it sharply.

Step 6: Remove the Starter Mounting Bolts

• Support the starter with one hand before removing the bolts. It is heavier than it looks.
• Use a 15mm socket, 3/8-inch drive ratchet, 6-inch extension, and swivel socket adapter to loosen the starter mounting bolts.
• A swivel adapter lets the socket bend slightly so you can reach bolts at an angle.
• Remove the lower bolt first, then remove the upper bolt while holding the starter.

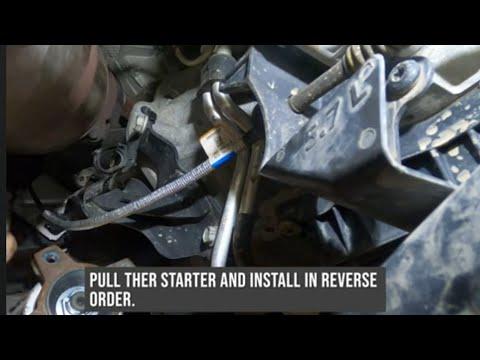

• Slide the starter out of the bellhousing opening and lower it carefully.

Step 7: Compare the Old and New Starter

• Place both starters side by side on the floor.
• Check that the mounting ears, electrical posts, connector location, and starter gear match.
• Use a shop light to inspect the starter mounting surface on the engine.
• Wipe away dirt by hand with gloves. Do not sand wiring terminals aggressively.

Step 8: Install the New Starter

• Lift the new starter into place by hand and align it with the bellhousing opening.
• Start both mounting bolts by hand first. This prevents cross-threading.
• Use a 15mm socket, ratchet, extension, and swivel socket adapter to snug both bolts evenly.
• Use a torque wrench 10-100 ft-lbs with the 15mm socket to tighten the starter mounting bolts to Torque to 54 Nm (40 ft-lbs).
• Start bolts by hand.

Step 9: Reconnect the Starter Wiring

• Place the large battery cable back onto the starter solenoid post.
• Use a 13mm socket to install the retaining nut.
• Use a torque wrench 10-100 ft-lbs with the 13mm socket to tighten the nut to Torque to 12 Nm (106 in-lbs).
• Push the small control wire connector onto the starter until it clicks.
• Apply a small amount of dielectric grease around the connector seal if needed. Dielectric grease helps keep moisture out of electrical connectors.

Step 10: Reinstall the Lower Splash Shield

• Raise the shield into position by hand.
• Use a 10mm socket to reinstall any shield bolts.
• Use a trim clip removal tool or your fingers to reinstall plastic push clips.
• Do not over-tighten plastic shield fasteners.

Step 11: Lower the Truck

• Use the floor jack rated 3-ton minimum to lift the truck slightly off the jack stands.
• Remove the jack stands rated 3-ton minimum.
• Lower the truck slowly to the ground.
• Remove the wheel chocks.

Step 12: Reconnect the Battery

• Place the negative battery cable back onto the battery post.
• Use a 10mm socket to tighten the negative terminal clamp.
• Tighten the clamp snugly. Do not crush the terminal.
• Apply battery terminal protector spray to the terminal after tightening.

---

✅ After Repair

• Press the brake pedal and start your 1500 normally.
• Listen for a clean, quick crank. Grinding, clicking, or slow cranking means stop and recheck the starter mounting and wiring.
• Check that the battery warning light is off after the engine starts.
• Inspect under the truck to confirm no wires are touching hot exhaust or moving parts.
• Some radio, clock, and window auto-up settings may need to relearn after the battery disconnect.
• If the engine does not crank, recheck the negative battery terminal, large starter cable, and small control connector first.

---

💰 DIY vs Shop Cost

Shop Cost: $550-$900 (parts + labor)

DIY Cost: $180-$420 (parts only)

You Save: $300-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
