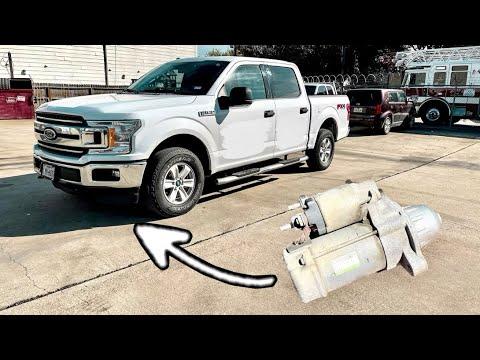

🔧 F-150 - Starter Motor Replacement

Replacing the starter motor on your F-150 means removing the failed starter from the lower passenger-side area of the engine/transmission and installing a new one. The starter is a high-current electrical part, so disconnecting the battery correctly is important before touching any starter wiring.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before starting. The starter cable is always capable of carrying very high current.
• ⚠️ Let the exhaust and turbo-area components cool fully before working underneath.
• ⚠️ Support your F-150 with jack stands. Never rely on a floor jack alone.
• ⚠️ Wear safety glasses. Dirt and rust can fall while working under the truck.
• ⚠️ Keep the ignition off and the key/fob away from the cab while working.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 8mm socket
• 10mm socket
• 13mm socket
• 15mm socket
• 3/8-inch drive ratchet
• 3/8-inch drive 6-inch extension
• 3/8-inch drive universal joint
• Torque wrench 5-80 ft-lb
• Flat-blade screwdriver
• Trim clip remover
• Floor jack rated 3-ton minimum
• Jack stands rated 3-ton minimum
• Wheel chocks
• Mechanic gloves
• Safety glasses
• Shop light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Starter mounting bolts - Qty: 2, replace if corroded or damaged
• Battery terminal protector spray - Qty: 1

---

📋 Before You Begin

• Park your F-150 on level ground, shift to Park, and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Open the hood and wait until the engine and exhaust are cool to the touch.
• Disconnect the negative battery cable using a 10mm socket. A negative battery cable is the black cable marked “-”.
• If raising the truck, lift from an approved front frame lift point with the floor jack, then place jack stands under the frame rails.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the Battery

• Use a 10mm socket to loosen the negative battery terminal clamp.
• Lift the negative cable off the battery post and move it aside so it cannot spring back.
• Wrap the cable end with a clean rag if needed.
• Always disconnect negative first.

Step 2: Raise and Support the Front of the Truck

• Place wheel chocks behind the rear wheels.
• Use a floor jack rated 3-ton minimum to lift the front of your F-150 at the front frame area.
• Place jack stands rated 3-ton minimum under the front frame rails.
• Gently lower the truck onto the jack stands and shake the truck lightly to confirm it is stable.

Step 3: Remove the Lower Splash Shield if Equipped

• Use an 8mm socket to remove the lower shield fasteners.
• Use a trim clip remover for plastic push clips. A trim clip remover is a small fork-shaped tool that removes plastic clips without breaking them.
• Lower the shield and set it aside with the fasteners.

Step 4: Locate the Starter Motor

• From underneath, look at the passenger side where the engine meets the transmission bellhousing.
• The starter is a small cylindrical electric motor with a large battery cable attached to it.
• Use a shop light to clearly see the wire terminals and mounting bolts.

Step 5: Remove the Starter Electrical Connections

• Use a 13mm socket to remove the nut from the large battery cable terminal on the starter.
• Pull the large cable straight off the stud and move it aside.
• Use a 10mm socket to remove the smaller starter signal wire nut, if equipped with a nut-style terminal.
• If the small wire uses a push connector, use a flat-blade screwdriver to gently release the locking tab, then unplug it.
• Take a photo before removing wires.

Step 6: Remove the Starter Mounting Bolts

• Support the starter with one hand because it can drop when the bolts come out.
• Use a 13mm socket or 15mm socket with a 3/8-inch drive ratchet, 6-inch extension, and universal joint to remove the starter mounting bolts.
• A universal joint is a swivel adapter that helps the socket reach bolts at an angle.
• Remove the lower bolt first, then the upper bolt.
• Carefully lower the starter out of position.

Step 7: Compare the Old and New Starter

• Place the old and new starter motors side by side.
• Check that the mounting ears, electrical terminals, and drive gear location match.
• Do not install the new starter if the mounting shape or terminals are different.

Step 8: Install the New Starter

• Lift the new starter into position by hand.
• Start both mounting bolts by hand first to prevent cross-threading.
• Use a 13mm socket or 15mm socket with the 3/8-inch drive ratchet to snug the bolts evenly.
• Use a torque wrench 5-80 ft-lb to tighten the starter mounting bolts to Torque to 48 Nm (35 ft-lbs).

Step 9: Reconnect the Starter Wiring

• Install the large battery cable onto the starter stud.
• Use a 13mm socket and torque wrench 5-80 ft-lb to tighten the large terminal nut to Torque to 12 Nm (106 in-lbs).
• Install the small starter signal wire.
• Use a 10mm socket and torque wrench 5-80 ft-lb to tighten the small terminal nut to Torque to 5 Nm (44 in-lbs), if nut-style.
• If it uses a push connector, press it on until it clicks.
• Make sure the wires are not touching the exhaust or any moving parts.

Step 10: Reinstall the Lower Splash Shield

• Raise the lower splash shield into position.
• Use an 8mm socket to reinstall the shield fasteners.
• Use a trim clip remover or your fingers to reinstall any plastic push clips.
• Snug the fasteners by hand; do not overtighten plastic shield hardware.

Step 11: Lower the Truck

• Use the floor jack rated 3-ton minimum to lift the truck slightly off the jack stands.
• Remove the jack stands rated 3-ton minimum.
• Slowly lower your F-150 to the ground.

Step 12: Reconnect the Battery

• Place the negative battery cable back onto the battery post.
• Use a 10mm socket to tighten the terminal clamp until secure.
• Apply battery terminal protector spray to the terminal after tightening.
• Do not overtighten the battery clamp.

---

✅ After Repair

• Start your F-150 and listen for a clean, fast crank.
• If you hear one click or no crank, recheck the battery terminals and starter cable connections.
• Check underneath to confirm no wiring is hanging near the exhaust or driveshaft.
• Let the truck idle for a minute, then shut it off and restart it once more.
• Reset clock or convenience settings if they changed after the battery disconnect.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $270-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
