🔧 CX-5 - Starter Motor Replacement

This is an intermediate repair, and careful battery isolation is non-negotiable. The starter sits low where the engine joins the automatic transmission, so you’ll reach it mainly from underneath after removing the splash shield.

The starter aisle is open in the parts sidebar with matched replacement options. Before buying one, confirm the battery is charged and the engine doesn’t crank when supplied with a proper jump start. A weak battery can impersonate a bad starter remarkably well.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

Assumption: These instructions apply to the stock naturally aspirated 2.5L engine.

---

⚠️ Safety & Precautions

• ⚠️ Let the engine and exhaust cool completely before working underneath.
• ⚠️ Disconnect the negative battery terminal before touching the starter wiring. Mazda specifically warns that the live starter terminal can spark against the body. mcx5.org)
• ⚠️ Never work beneath a vehicle supported only by a floor jack.
• ⚠️ Lift only at approved jacking points and support both front sides with jack stands.
• ⚠️ Keep the key outside the vehicle so nobody can attempt to start it.
• ⚠️ The starter is heavier than it looks. Support it while removing the final bolt.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 8mm socket
• 10mm socket
• 12mm deep socket
• 14mm socket
• 3/8-inch ratchet
• 3/8-inch extension set
• 3/8-inch universal-joint adapter
• Torque wrench rated 5-80 Nm
• Flat trim-clip removal tool
• Small flat-blade screwdriver
• Floor jack rated 2-ton minimum
• Jack stands rated 2-ton minimum
• Wheel chocks
• LED work light
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Starter mounting bolts - Qty: 2 only if damaged or badly corroded
• Electrical terminal protectant - Qty: 1 small tube or spray

Several matched starters are available in the sidebar, including new and remanufactured choices. Compare the replacement with the removed unit before installation, especially the mounting ears, electrical terminals, and drive-gear housing.

---

📋 Before You Begin

• 📋 Park your CX-5 on level, solid ground and place the transmission in Park.
• 📋 Apply the parking brake and place wheel chocks behind both rear wheels.
• 📋 Open the hood and allow the engine to cool.
• 📋 Remove the battery cover before disconnecting the battery.
• 📋 Save any personal audio settings you don’t want to recreate after power is restored.
• 📋 Verify that the replacement starter physically matches the old starter before final assembly.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the Battery

• Use a 10mm socket to loosen the negative battery-terminal clamp.
• Lift the negative cable off the battery and position it where it cannot spring back onto the terminal.
• Wait at least one minute before touching the starter wiring.
• Do not disconnect the positive terminal unless additional working clearance requires battery removal.

Step 2: Raise and Support the Front

• Place the floor jack rated 2-ton minimum at the approved front-center lifting point.
• Raise the vehicle high enough to work beneath it comfortably.
• Position the jack stands rated 2-ton minimum beneath the reinforced front support points.
• Lower the vehicle onto the stands, then gently push the body to confirm it’s stable.
• Keep the floor jack lightly touching the lifting point as backup support.

Step 3: Remove the Front Splash Shield

• Use the flat trim-clip removal tool to release the plastic retainers without tearing their centers out.
• Use a 10mm socket to remove the shield bolts and screws.
• Support the shield while removing the last fastener, then lower it out of the way.
• Arrange the clips and screws by location because their lengths may differ.

Step 4: Create Upper Access if Needed

• Use an 8mm socket to loosen the air-intake duct clamp if the duct blocks your view or hand access.
• Release its clips carefully and move the duct aside without pulling on attached wiring.
• Do not allow dirt or hardware to enter the open intake.

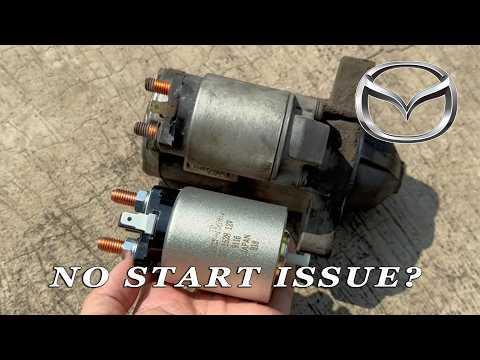

Step 5: Locate and Inspect the Starter

• Use the LED work light to find the starter on the transmission bellhousing, where the engine and transmission meet.
• The starter has one thick battery cable and one smaller control connector.
• Inspect the surrounding area for oil contamination, loose cables, or a damaged connector before removing anything.

Step 6: Disconnect the Starter Wiring

• Pull back the protective rubber cap covering the large starter terminal.
• Use a 12mm deep socket and 3/8-inch ratchet to remove the large cable-retaining nut.
• Lift the cable terminal straight off the stud. Don’t let the cable twist the stud inside the starter.
• Press the locking tab on the smaller solenoid connector and pull the connector straight off.
• Use the small flat-blade screwdriver only if needed to gently lift the connector lock.
• Do not pull on the wire itself.

Step 7: Remove the Starter

• Support the starter with one hand.
• Use a 14mm socket, 3/8-inch extension set, and 3/8-inch ratchet to loosen the starter mounting bolts.
• Use the 3/8-inch universal-joint adapter if a straight extension cannot reach the upper bolt.
• Remove the lower bolt, then remove the upper bolt while holding the starter securely.
• Pull the starter straight away from the transmission opening and lower it carefully.

Step 8: Compare the Old and New Starters

• Place both starters side by side.
• Verify that the mounting ears, electrical stud, small connector, nose housing, and drive gear are positioned identically.
• Transfer only protective caps or brackets intended for reuse.
• Never energize an unsecured starter to test it. Its torque can make it jump violently.

Step 9: Install the Replacement Starter

• Clean loose dirt from the transmission mounting surface with a dry cloth.
• Position the starter squarely against the transmission.
• Start both mounting bolts by hand for several turns. This prevents cross-threading.
• Use the 14mm socket to seat the bolts evenly.
• Use the torque wrench rated 5-80 Nm to tighten the starter mounting bolts to 38-51 Nm (29-37 ft-lbs). Mazda service information uses this tightening range for the applicable engine and transmission fasteners. mcx5.org)
• Start every mounting bolt by hand.

Step 10: Reconnect the Starter Wiring

• Push the small control connector onto the starter until its lock clicks.
• Place the large battery-cable terminal over the starter stud without bending or twisting it.
• Install the retaining nut with the 12mm deep socket.
• Use the torque wrench rated 5-80 Nm to tighten the terminal nut to 9-12 Nm (80-106 in-lbs). howtoo.com
• Reinstall the protective rubber terminal cap completely.
• Keep tools away from the terminal after the cable is installed.

Step 11: Reinstall the Intake and Splash Shield

• Reposition the intake duct and tighten its clamp with the 8mm socket until secure without crushing the plastic duct.
• Position the splash shield and start every bolt and clip by hand.
• Install the bolts with the 10mm socket and tighten them evenly until seated.
• Reinstall the plastic clips with their center pins properly engaged.

Step 12: Lower the Vehicle

• Use the floor jack rated 2-ton minimum to raise the vehicle slightly off the jack stands.
• Remove both stands and lower the vehicle slowly.
• Remove the wheel chocks only after the vehicle is fully on the ground.

Step 13: Reconnect the Battery

• Place the negative battery clamp fully down on its terminal.
• Use the 10mm socket to tighten the clamp until it cannot rotate by hand.
• Do not overtighten the clamp or force it farther down by hammering.
• Reinstall the battery cover.

---

✅ After Repair

• ✅ Switch the ignition on without starting the engine and watch for unexpected warning messages.
• ✅ Start the engine. The starter should engage cleanly without grinding, clicking, or remaining engaged after the engine starts.
• ✅ Switch the engine off and restart it two or three times.
• ✅ Inspect the battery terminals and starter area for a loose connection, smoke, heat, or an electrical smell.
• ✅ Check that the splash shield is secure and not hanging near moving parts.
• ✅ Reset the clock and personal settings if they were lost during battery disconnection.
• ✅ If the engine still doesn’t crank, test the battery, battery cables, starter-control signal, fuses, and transmission range circuit before replacing anything else.

---
