🔧 Outback - Starter Motor Replacement

The starter motor is mounted at the rear of the engine, near the transmission bellhousing, and can be reached from above after removing the air-intake duct. You will disconnect its electrical connections, remove two mounting bolts, and install the replacement starter.

Difficulty Level: Intermediate | Estimated Time: 1-2 hours

Assumption: This procedure is for the stock 3.6L engine and automatic transmission.

---

⚠️ Safety & Precautions

• Allow the engine and exhaust components to cool completely.
• Disconnect the negative battery cable before touching the starter. Its main cable remains electrically live when the battery is connected.
• Keep tools away from the positive battery terminal and starter power terminal.
• Place the transmission in Park and apply the parking brake.
• Never work underneath a vehicle supported only by a floor jack.
• The starter is heavy for its size. Support it while removing the final bolt.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 8mm socket
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8-inch drive ratchet
• 3/8-inch drive 3-inch extension
• 3/8-inch drive torque wrench (5-60 Nm range)
• Small flat-blade screwdriver
• Plastic trim-clip removal tool
• Battery terminal brush
• Mechanic gloves
• Safety glasses

A torque wrench tightens fasteners to an exact manufacturer-specified force.

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor for 3.6L automatic transmission - Qty: 1
• Starter terminal protective cap - Qty: 1 if damaged

---

📋 Before You Begin

• Park your Outback on level ground, select Park, apply the parking brake, and switch off all electrical accessories.
• Open the hood and keep the ignition key away from the vehicle.
• Wait at least 60 seconds after switching off the ignition before disconnecting the battery.
• Make sure the replacement starter matches the original mounting flange, electrical terminals, and pinion gear.
• No scan tool, starter coding, or infotainment service mode is required.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the Battery

• Use the 10mm socket and ratchet to loosen the negative battery-terminal clamp.
• Lift the negative clamp from the battery post and position it where it cannot spring back into contact.
• Use the battery terminal brush to clean visible corrosion from the clamp if necessary.
• Do not disconnect the positive terminal unless extra working clearance is required.

Step 2: Remove the Air-Intake Duct

• Use the 8mm socket and ratchet to loosen the air-intake hose clamp at the throttle-body end.
• Use the small flat-blade screwdriver or plastic trim-clip removal tool to release the intake-air duct clips without forcing them.
• Disconnect any breather hose attached to the duct by gripping the hose itself, not the plastic fitting.
• Lift out the intake duct and place it somewhere clean.
• Cover the exposed intake opening with a clean, lint-free covering so nothing can fall inside.

Step 3: Locate and Inspect the Starter

• Find the starter at the upper rear of the engine where the engine joins the transmission.
• Use a flashlight to identify the thick battery cable, the small solenoid-control connector, and the two starter mounting bolts.
• Check the cable routing and take a reference photo before disconnecting anything.
• Match every connection before removing it.

Step 4: Disconnect the Starter Wiring

• Use the small flat-blade screwdriver to release the locking tab on the small solenoid-control connector. Pull on the connector housing, not its wire.
• Lift the rubber protective cap from the large starter terminal.
• Use the 12mm socket, extension, and ratchet to remove the nut securing the thick battery cable.
• Lift the cable eyelet from the terminal and move it aside without sharply bending the cable.
• Inspect the eyelet for corrosion, looseness, or heat damage.

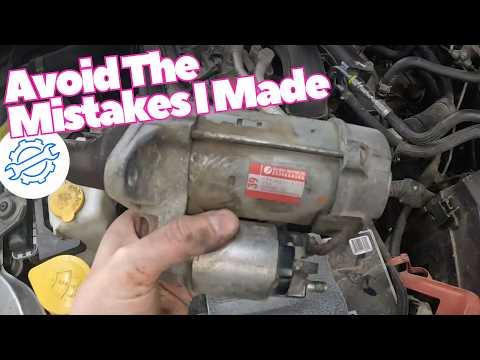

Step 5: Remove the Starter Motor

• Support the starter with one hand.
• Use the 14mm socket, extension, and ratchet to loosen the two starter mounting bolts.
• Remove the easier-to-reach bolt first, then remove the final bolt while holding the starter securely.
• Pull the starter straight away from the transmission bellhousing. Rock it gently by hand if the locating surface is stuck.
• Do not pry against wiring, aluminum housings, or the starter sealing surface.

Step 6: Compare the New and Old Starters

• Place both starters side by side and compare the mounting flange, bolt holes, electrical terminals, nose housing, and pinion gear.
• Confirm that no shipping cap or packaging remains on the replacement starter.
• Use the small flat-blade screwdriver only if needed to transfer an undamaged terminal cap or wiring retainer.
• Do not energize the loose starter with jumper cables.

Step 7: Install the Replacement Starter

• Position the replacement starter squarely against the transmission bellhousing.
• Install both mounting bolts by hand for several turns. This prevents cross-threading the aluminum housing.
• Use the 14mm socket, extension, and ratchet to seat both bolts evenly.
• Use the 14mm socket and torque wrench to tighten both starter mounting bolts to 50 Nm (37 ft-lbs).
• Start every bolt by hand.

Step 8: Reconnect the Starter Wiring

• Place the thick battery-cable eyelet squarely over the large starter terminal.
• Install the terminal nut by hand, then use the 12mm socket and torque wrench to tighten it to 9 Nm (80 in-lbs).
• Hold the cable in its natural position while tightening. Do not allow the terminal stud to rotate.
• Refit the rubber protective cap so the terminal is completely covered.
• Push the small solenoid-control connector into place until its lock clicks.

Step 9: Reinstall the Air-Intake Duct

• Remove the covering from the intake opening and verify that nothing has entered it.
• Position the air-intake duct fully over its connections.
• Reconnect the breather hose by hand and verify that it is not twisted or pinched.
• Reinstall the duct clips using the plastic trim-clip removal tool to press them into place gently.
• Use the 8mm socket and ratchet to tighten the intake clamp until secure. Do not crush the plastic duct.

Step 10: Reconnect the Battery

• Place the negative battery clamp fully down on the battery post.
• Use the 10mm socket and torque wrench to tighten the negative-terminal clamp to 6 Nm (53 in-lbs).
• Check that the clamp cannot rotate by hand. Do not overtighten it.

---

✅ After Repair

• Verify that all tools have been removed from the engine compartment.
• Turn the ignition to ON for several seconds, then start the engine. The starter should crank smoothly without grinding or clicking.
• Switch the engine off and restart it two more times to confirm consistent operation.
• Inspect the starter cable and battery terminals for movement, heat, smoke, or sparking.
• If the driver’s automatic window function was lost, close the window completely, then hold the switch in the UP position for about one second.
• If the starter grinds, continues running, or produces smoke, switch off the ignition immediately and disconnect the negative battery cable.

---

💰 DIY vs Shop Cost

Shop Cost: ₹35,000-₹70,000 including imported parts and labor

DIY Cost: ₹22,000-₹50,000 for the starter motor

You Save: ₹13,000-₹20,000 by doing it yourself!

Local labor and imported-part prices vary. This repair takes a shop approximately 1-1.5 hours.

---
