🔧 Tundra - Starter Motor Replacement

The starter motor on your Tundra’s 5.7L V8 sits beneath the intake manifold in the engine valley. You must remove the air intake, throttle body, fuel rails, and intake manifold to reach it, making this a detailed repair for an experienced DIYer.

Difficulty Level: Advanced | Estimated Time: 6-8 hours

Assumption: Stock U.S.-market 5.7L V8 configuration.

---

⚠️ Safety & Precautions

• ⚠️ Work outdoors or in a well-ventilated area with the engine completely cold.
• 🔋 Disconnect the negative battery cable before touching the starter. Its large terminal remains powered whenever the battery is connected.
• ⛽ Relieve fuel pressure before opening the fuel system. Keep sparks, flames, cigarettes, and heaters away.
• 🧯 Keep a Class B fire extinguisher within reach.
• 🧤 Wear safety glasses and fuel-resistant gloves.
• 🚫 Cover all eight intake ports immediately after removing the manifold. A dropped object can destroy the engine.
• 🧼 Keep injector seals, fuel connections, and intake sealing surfaces completely clean.
• 🔌 Never turn the ignition on while the fuel system is disconnected.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 1/4-inch drive metric socket set, 8-12mm
• 3/8-inch drive metric socket set, 10-17mm
• 10mm deep socket
• 12mm deep socket
• 14mm socket
• 1/4-inch drive ratchet
• 3/8-inch drive ratchet
• 1/4-inch drive 6-inch extension
• 3/8-inch drive 3-inch extension
• 3/8-inch drive 6-inch extension
• 1/4-inch drive torque wrench, 2-20 Nm
• 3/8-inch drive torque wrench, 10-80 Nm
• Phillips #2 screwdriver
• 3/8-inch flat-blade screwdriver
• 90-degree hose-pick set
• Hose-clamp pliers
• Needle-nose pliers, 6-inch
• Plastic trim-removal tool
• Fuel-line disconnect tool set (specialty)
• Magnetic pickup tool, 18-inch
• Plastic gasket scraper, 1-inch
• Drain pan, 15-quart minimum
• Clean funnel, 6-inch
• Masking tape, 1-inch
• Permanent marker, fine-point
• Shop towels, lint-free
• Class B fire extinguisher
• Fuel-resistant nitrile gloves
• Safety glasses with side shields

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor for 5.7L V8 - Qty: 1
• Intake manifold gasket set - Qty: 1
• Throttle-body gasket - Qty: 1
• Fuel-injector O-ring and insulator set - Qty: 1
• Fuel-line connector retainer - Qty: 1
• Toyota-compatible pink premixed coolant - Qty: 2 gallons
• Clean engine oil - Qty: 1 small bottle

---

📋 Before You Begin

• 🅿️ Park your Tundra on level ground, select Park, apply the parking brake, and let the engine cool completely.
• 🪟 Lower the driver’s window. Battery disconnection may erase saved settings and idle memory.
• 📷 Photograph every hose, connector, bracket, and wiring route before removal.
• 🏷️ Label connections with masking tape and a permanent marker.
• ⛽ Remove the fuel-pump fuse or relay from the underhood fuse box, start the engine, and let it stall. Crank for approximately three seconds, switch the ignition off, and reinstall the fuse or relay.
• 🔋 Use a 10mm socket to disconnect the negative battery terminal. Isolate the cable so it cannot spring back onto the post.
• 🧊 Place a 15-quart drain pan under the radiator and drain enough cold coolant to lower the level beneath the throttle-body hoses.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the Engine Cover and Air Intake

• Lift the plastic engine cover straight upward by hand to release its rubber mounts.
• Press the lock and unplug the mass-airflow sensor connector by hand.
• Use hose-clamp pliers to disconnect the crankcase breather hose.
• Use a 10mm socket or Phillips #2 screwdriver to loosen the air-duct clamps.
• Release the air-cleaner clips by hand, then remove the upper housing and intake duct.
• Cover the exposed air-cleaner opening with a lint-free shop towel.

Step 2: Remove the Throttle Body

• Press the lock and unplug the electronic throttle connector by hand. Do not pull on the wires.
• Use hose-clamp pliers to release the throttle-body coolant-hose clamps.
• Use a 90-degree hose pick to loosen the hoses gently. A hose pick is a small hooked tool used to separate stuck rubber hoses from their fittings.
• Plug or elevate the hoses to reduce coolant loss.
• Use a 10mm socket to remove the throttle-body fasteners.
• Remove the throttle body and discard its gasket.
• Do not force the electronic throttle plate open.

Step 3: Disconnect the Manifold Wiring and Hoses

• Use masking tape and a permanent marker to label the brake-booster, vacuum, evaporative-emissions, and crankcase-ventilation hoses.
• Use hose-clamp pliers and the 90-degree hose pick to disconnect the labeled hoses.
• Press their locks and unplug the injector, sensor, and actuator connectors by hand.
• Use a plastic trim-removal tool to release the wiring-harness clips.
• Use 10mm and 12mm sockets to remove the wiring and hose brackets attached to the intake manifold.
• Move the harness aside without pulling or sharply bending it.

Step 4: Disconnect the Fuel Supply Line

• Place several lint-free shop towels beneath the fuel-line connection.
• Use the fuel-line disconnect tool to release the connector lock. This tool separates the quick-connect fitting without damaging its internal seal.
• Separate the line slowly because a small amount of residual pressure may remain.
• Cap both openings immediately to keep dirt out.
• Move fuel-soaked towels outside the work area.

Step 5: Remove the Fuel Rails and Injectors

• Use a 12mm socket and extension to remove the fuel-rail retaining bolts.
• Lift each rail evenly so the injectors remain straight. Do not pry against an injector.
• Place the rails and injectors on clean, lint-free shop towels.
• Use a plastic trim-removal tool to remove the old injector O-rings and insulators without scratching the injectors.
• Never reuse removed injector O-rings.

Step 6: Remove the Intake Manifold

• Use 10mm and 12mm sockets with extensions to remove the manifold supports, nuts, and bolts.
• Arrange the fasteners in their original positions because their lengths may differ.
• Check all sides of the manifold for overlooked hoses, connectors, and brackets.
• Lift the intake manifold straight upward. Use a plastic trim-removal tool only if gentle separation is needed.
• Immediately cover all eight intake ports with clean, lint-free shop towels.
• Remove the old intake gaskets by hand.
• Use a plastic gasket scraper to clean the mating surfaces. Do not allow debris to enter the ports.

Step 7: Disconnect the Starter Wiring

• Verify that the negative battery cable remains isolated.
• Press the lock and unplug the small starter-solenoid connector by hand.
• Open the starter-terminal protective cap by hand.
• Use a 12mm deep socket to remove the large starter-cable nut.
• Lift the cable eyelet straight off without twisting the copper terminal.

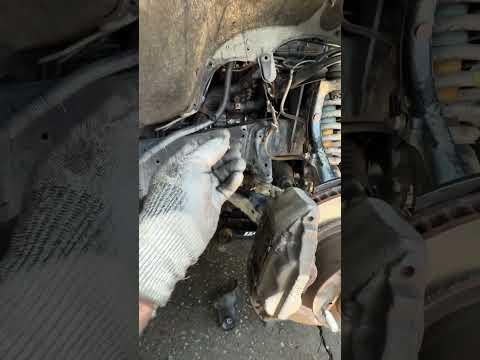

Step 8: Remove the Starter Motor

• Support the starter with one hand.
• Use a 14mm socket, 3/8-inch ratchet, and extension to remove both starter mounting bolts.
• Lift the starter out of the engine valley.
• Inspect the valley for coolant or oil. Repair any active leak before installing the new starter.
• Use a magnetic pickup tool to collect any dropped hardware.

Step 9: Install the New Starter Motor

• Compare the old and new starters. The pinion, flange, connectors, and terminal positions must match.
• Place the new starter squarely against its mounting surface.
• Start both mounting bolts several turns by hand to prevent damaged threads.
• Use a 14mm socket and 3/8-inch torque wrench to tighten the mounting bolts to 39 Nm (29 ft-lbs).
• Install the large cable, then use a 12mm deep socket and 1/4-inch torque wrench to tighten its nut to 9.8 Nm (87 in-lbs).
• Close the protective cap and reconnect the solenoid connector by hand until it clicks.
• Overtightening can break the copper terminal.

Step 10: Reinstall the Intake Manifold

• Use the magnetic pickup tool to check the engine valley for loose hardware.
• Remove the port coverings one at a time and verify that every intake port is empty.
• Install the new intake manifold gaskets by hand.
• Lower the manifold straight into position without sliding or pinching the gaskets.
• Start all manifold fasteners by hand.
• Use the appropriate 10mm or 12mm socket and 3/8-inch torque wrench to tighten the manifold fasteners gradually from the center outward to 25 Nm (18 ft-lbs).
• Use 10mm and 12mm sockets to reinstall the original manifold supports and brackets.

Step 11: Reinstall the Fuel Rails

• Apply a thin film of clean engine oil to each new injector O-ring.
• Install the new O-rings and insulators by hand without twisting them.
• Position the rails and press the injectors straight into their openings evenly.
• If an injector binds, remove it and inspect its O-ring. Never force it into place.
• Use a 12mm socket and torque wrench to tighten the fuel-rail bolts to 21 Nm (15 ft-lbs).
• Push the fuel-line connector together by hand until it clicks.
• Install the new connector retainer, then pull gently on the connection to confirm it is locked.

Step 12: Reconnect the Wiring and Hoses

• Use your labels and photographs to route the wiring exactly as originally installed.
• Reconnect every injector, sensor, and actuator connector by hand until it clicks.
• Use 10mm and 12mm sockets to reinstall the wiring and hose brackets.
• Reconnect all vacuum, ventilation, evaporative-emissions, and brake-booster hoses by hand.
• Use hose-clamp pliers to return each clamp to its original position.
• Verify that no hose or harness is trapped beneath the intake manifold.

Step 13: Reinstall the Throttle Body

• Install a new throttle-body gasket and position the throttle body.
• Start all fasteners by hand.
• Use a 10mm socket and 1/4-inch torque wrench to tighten the fasteners evenly to 10 Nm (89 in-lbs).
• Reconnect the coolant hoses and position their clamps with hose-clamp pliers.
• Reconnect the electronic throttle connector by hand until it clicks.

Step 14: Reinstall the Air Intake

• Remove the protective shop towel from the air-cleaner opening.
• Install the intake duct and upper air-cleaner housing.
• Use a 10mm socket or Phillips #2 screwdriver to tighten the duct clamps securely.
• Reconnect the breather hose and position its clamp with hose-clamp pliers.
• Reconnect the mass-airflow sensor connector by hand until it clicks.

Step 15: Refill the Cooling System

• Close the radiator drain by hand. Do not overtighten the plastic valve.
• Use a clean funnel to refill the radiator with Toyota-compatible pink premixed coolant.
• Fill the coolant reservoir to the cold-level mark.
• Check the throttle-body hoses and radiator drain for leaks.

Step 16: Reconnect the Battery and Pressurize the Fuel System

• Use a 10mm socket and 1/4-inch torque wrench to reconnect the negative battery terminal to 5.4 Nm (48 in-lbs).
• Switch the ignition on for five seconds without starting the engine, then switch it off for ten seconds. Repeat this three times.
• Use a dry shop towel to inspect the fuel-line connector and every injector for leakage.
• If you see fuel or smell a strong fuel odor, switch the ignition off and disconnect the battery immediately.

Step 17: Start and Inspect the Engine

• Start the engine. The first crank may take slightly longer while fuel pressure returns.
• Listen for clean starter engagement without grinding or continued starter operation.
• Inspect the fuel rails, injector bases, throttle-body hoses, and intake manifold for leaks.
• Press the engine cover into its rubber mounts only after confirming there are no leaks.

---

✅ After Repair

• ✅ Let the engine reach normal operating temperature while checking continuously for fuel, vacuum, and coolant leaks.
• 🌡️ Set the cabin heater to maximum heat and confirm that it blows warm air.
• 🧊 Allow the engine to cool completely, then recheck the radiator and coolant-reservoir levels.
• 🔍 A rough or unusually high idle can indicate a disconnected vacuum hose, pinched manifold gasket, or damaged injector O-ring.
• 🧠 The idle may vary briefly while the electronic throttle relearns after battery disconnection.
• 🚨 Stop the engine immediately for leaking fuel, starter grinding, coolant loss, or a flashing check-engine light.
• 🔑 Perform several restart cycles before driving your Tundra.

---

💰 DIY vs Shop Cost

Shop Cost: ₹90,000-₹165,000 (parts + labor)

DIY Cost: ₹25,000-₹70,000 (parts only)

You Save: ₹65,000-₹95,000 by doing it yourself!

Sonīpat and Delhi NCR pricing varies because Tundra parts may require importation. This repair takes a shop approximately 5-7 hours.

---
