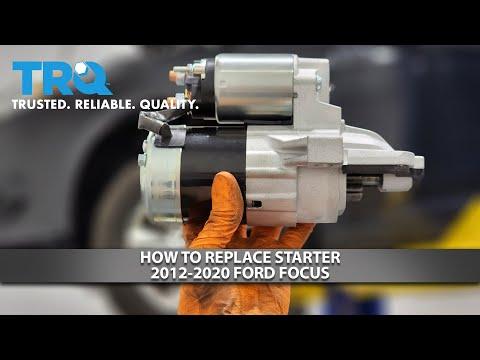

🔧 Focus - Starter Motor Replacement

Replacing the starter motor on your Focus means removing the old electric motor that cranks the engine and installing a new one. This repair is usually done when the engine will not crank, cranks intermittently, or you hear a single click when turning the key.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before touching the starter wiring. The starter has a direct battery cable and can spark strongly.
• ⚠️ Let the engine and exhaust cool before working underneath the front of your Focus.
• ⚠️ Support the vehicle with jack stands. Never work under a vehicle held up only by a jack.
• ⚠️ Wear safety glasses because dirt and rust can fall while working under the engine.
• ⚠️ If your Focus has an engine splash shield, remove it carefully so the clips and fasteners do not break.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 13mm socket
• 15mm socket
• 8mm socket
• 3/8-inch drive ratchet
• 3/8-inch drive 6-inch extension
• 3/8-inch drive universal joint
• 13mm wrench
• Flat-blade screwdriver
• Trim clip removal tool
• Torque wrench rated 10-100 Nm
• Floor jack rated 2-ton minimum
• Jack stands rated 2-ton minimum
• Wheel chocks
• Work gloves
• Safety glasses
• Battery terminal brush

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Starter mounting bolts - Qty: 2, replace if damaged or heavily corroded
• Battery terminal protectant - Qty: 1

---

📋 Before You Begin

• Park your Focus on level ground, shift to Park or Neutral as equipped, and set the parking brake.
• Place wheel chocks behind the rear wheels to stop the car from rolling.
• Open the hood and let the engine cool fully.
• Disconnect the negative battery cable using a 10mm socket. The negative cable is usually marked with a minus symbol.
• A universal joint is a small swivel adapter that helps your socket reach bolts at an angle.
• A torque wrench tightens bolts to the correct tightness so they are not too loose or overtightened.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the Battery

• Use a 10mm socket to loosen the negative battery terminal nut.
• Lift the negative cable off the battery post and move it aside so it cannot spring back.
• Use a battery terminal brush to clean the cable end if it has white or green corrosion.
• Always disconnect negative first.

Step 2: Raise and Support the Front of the Vehicle

• Place wheel chocks behind both rear wheels.
• Use a floor jack rated 2-ton minimum at the front jacking point to raise the front of your Focus.
• Place jack stands rated 2-ton minimum under the proper front support points.
• Gently lower the vehicle onto the jack stands and give the car a light shake to confirm it is stable.

Step 3: Remove the Lower Splash Shield

• Put on safety glasses and work gloves.
• Use a trim clip removal tool to remove plastic push clips from the lower splash shield.
• Use an 8mm socket to remove any small screws holding the splash shield.
• Lower the splash shield and set it aside.
• Keep clips in a cup.

Step 4: Locate the Starter Motor

• From underneath the front of the engine, look at the transmission bellhousing area where the engine and transmission meet.
• The starter motor is a small cylindrical electric motor with a thick battery cable attached to it.
• Use a flat-blade screwdriver only if needed to gently move wiring retainers out of the way.

Step 5: Label and Remove the Starter Wiring

• Confirm the negative battery cable is still disconnected before touching the starter terminals.
• Use a 13mm socket or 13mm wrench to remove the nut from the large starter battery cable terminal.
• Pull the large cable off the starter stud and move it aside.
• Use a 10mm socket to remove the small starter signal wire nut if equipped.
• If the small signal wire uses a push connector, press the tab with your finger or a flat-blade screwdriver and unplug it gently.
• Do not pull on wires.

Step 6: Remove the Starter Mounting Bolts

• Support the starter with one hand because it can drop when the bolts come out.
• Use a 15mm socket, 3/8-inch drive ratchet, and 3/8-inch drive 6-inch extension to loosen the starter mounting bolts.
• Use a 3/8-inch drive universal joint if the upper bolt is hard to reach.
• Remove both mounting bolts and keep track of their positions.
• Lower the starter out of the engine bay carefully.

Step 7: Compare the Old and New Starter

• Place the old and new starter motor side by side.
• Check that the mounting ears, electrical terminals, and gear nose match.
• Do not install the new starter if the mounting pattern or electrical posts are different.

Step 8: Install the New Starter

• Lift the new starter into position by hand.
• Start both mounting bolts by hand first to prevent cross-threading.
• Use a 15mm socket, 3/8-inch drive ratchet, and 3/8-inch drive 6-inch extension to snug the bolts.
• Use a torque wrench rated 10-100 Nm with the 15mm socket to tighten the starter mounting bolts to Torque to 48 Nm (35 ft-lbs).
• Hand-start bolts first.

Step 9: Reconnect the Starter Wiring

• Install the large battery cable onto the starter stud.
• Use a 13mm socket or 13mm wrench to tighten the large cable nut to Torque to 12 Nm (106 in-lbs).
• Install the small signal wire.
• Use a 10mm socket to tighten the small signal wire nut to Torque to 5 Nm (44 in-lbs), if equipped.
• If the small wire uses a push connector, push it on until it clicks.
• Make sure the wiring is routed away from the exhaust and moving parts.

Step 10: Reinstall the Splash Shield

• Lift the lower splash shield back into place.
• Use an 8mm socket to reinstall any screws.
• Use your hands and a trim clip removal tool to reinstall the plastic clips.
• Make sure the shield is secure and not hanging down.

Step 11: Lower the Vehicle

• Use the floor jack rated 2-ton minimum to lift the vehicle slightly off the jack stands.
• Remove the jack stands rated 2-ton minimum.
• Lower your Focus slowly to the ground with the floor jack.

Step 12: Reconnect the Battery

• Apply a light coat of battery terminal protectant to the battery terminal if available.
• Place the negative cable back on the negative battery post.
• Use a 10mm socket to tighten the terminal nut until snug.
• Do not overtighten the terminal because it can crack.

---

✅ After Repair

• Start your Focus and listen for a clean, quick crank.
• If the starter clicks but does not crank, recheck the battery charge and starter cable tightness.
• If the engine cranks slowly, check the battery terminals again for corrosion or looseness.
• Confirm the lower splash shield is secure after a short test drive.
• Reset the clock and any basic radio settings if they were lost after battery disconnect.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$750 (parts + labor)

DIY Cost: $180-$350 (parts only)

You Save: $270-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
