🔧 Ranger - Serpentine Belt Replacement

Replacing the serpentine belt on your Ranger means removing the old accessory drive belt and installing a new one around the crankshaft, alternator, A/C compressor, water pump, and belt tensioner pulleys. A worn belt can squeal, crack, slip, or leave you stranded if it breaks.

Difficulty Level: Beginner | Estimated Time: 0.5-1 hour

---

⚠️ Safety & Precautions

• ⚠️ Work only with the engine completely off and cool.
• ⚠️ Keep fingers, sleeves, and tools away from the belt path and pulleys.
• ⚠️ Disconnecting the battery is not normally required, but remove the key from the vehicle and keep it away from the ignition.
• ⚠️ The belt tensioner is spring-loaded. A tensioner stores spring force to keep the belt tight, so move it slowly and keep a firm grip on the tool.
• ⚠️ Do not start the engine until you confirm the belt is seated in every pulley groove.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 3/8-inch drive serpentine belt tool
• 3/8-inch drive ratchet
• 15mm socket
• Flathead screwdriver
• Work light
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

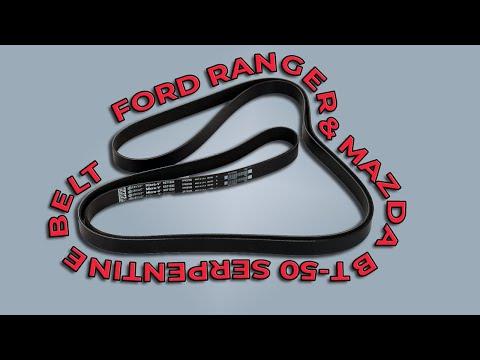

• Serpentine belt - Qty: 1

---

📋 Before You Begin

• Park your Ranger on level ground.
• Shift to Park and apply the parking brake.
• Turn the engine off and let it cool fully.
• Open the hood and support it securely.
• Take a clear photo of the belt routing before removal. This gives you a backup if the under-hood belt diagram is hard to read.
• Check the replacement belt against the old belt before installing. The length and rib count must match.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the Belt Routing Diagram

• Use a work light to look under the hood near the radiator support or underside of the hood for the belt routing diagram.
• If the diagram is missing, use your phone photo as a guide before removing the belt.
• The grooved side of the belt rides on grooved pulleys. The smooth side rides on smooth pulleys.
• Take the photo now.

Step 2: Find the Belt Tensioner

• Use a work light to locate the automatic belt tensioner on the front of the engine.
• The tensioner is the spring-loaded pulley arm that keeps the belt tight.
• Look for either a square 3/8-inch drive opening or a bolt head on the tensioner arm.

Step 3: Release Belt Tension

• Put on safety glasses and mechanic gloves.
• Insert the 3/8-inch drive serpentine belt tool or 3/8-inch drive ratchet into the tensioner drive opening.
• If your tensioner uses a bolt head instead, place a 15mm socket on the tensioner bolt head.
• Rotate the tensioner slowly to relieve belt tension.
• Hold the tensioner in the released position while keeping your fingers away from the pulleys.
• No torque spec applies here because no fasteners are removed.

Step 4: Remove the Old Belt

• While holding the tensioner released with the 3/8-inch drive serpentine belt tool, slide the belt off one smooth pulley first.
• Slowly let the tensioner return to its resting position. Do not let it snap back.
• Remove the belt from the remaining pulleys by hand.
• Use a flathead screwdriver only if needed to gently guide the belt out of a tight spot. Do not pry hard against plastic pulleys or covers.
• Smooth pulley first is easiest.

Step 5: Inspect the Pulleys and Tensioner

• Use your hand to spin the accessible idler pulleys and tensioner pulley.
• An idler pulley is a free-spinning guide pulley that helps route the belt.
• The pulleys should spin smoothly without grinding, wobbling, or rough spots.
• Use a work light to check pulley grooves for dirt, rubber buildup, or damage.
• If a pulley is noisy, loose, or wobbling, replace it before installing the new belt.

Step 6: Route the New Belt

• Route the new serpentine belt around the pulleys using the belt diagram or your photo.
• Leave the easiest smooth pulley for last. This makes the final slip-on step easier.
• Make sure the ribbed side of the belt sits fully inside the grooved pulleys.
• Use a work light to check the lower pulleys carefully because they are harder to see.
• Grooves must line up perfectly.

Step 7: Reapply Tension and Slip Belt On

• Use the 3/8-inch drive serpentine belt tool, 3/8-inch drive ratchet, or 15mm socket to rotate the tensioner again.
• Slip the belt over the final smooth pulley by hand.
• Slowly release the tensioner until it applies tension to the belt.
• Do not force the belt. If it will not fit, stop and recheck routing.
• No torque spec applies because the tensioner is not removed.

Step 8: Check Belt Seating

• Use a work light to inspect every pulley.
• Confirm the belt ribs are centered in all grooved pulleys.
• Confirm the belt is not hanging off the edge of any pulley.
• Use a flathead screwdriver only to point at areas during inspection. Do not pry on the installed belt.
• Remove all tools from the engine bay before starting the engine.

---

✅ After Repair

• Start your Ranger and let it idle for 30-60 seconds.
• Watch the belt from a safe distance. It should run smoothly without wobbling or walking off a pulley.
• Listen for squealing, chirping, slapping, or grinding noises.
• Turn the engine off and recheck belt alignment with a work light.
• If the belt shifted, shut the engine off immediately and recheck routing and pulley condition.
• No scan tool reset, battery registration, or infotainment procedure is required for this repair.

---

💰 DIY vs Shop Cost

Shop Cost: $160-$280 parts + labor

DIY Cost: $35-$85 parts only

You Save: $125-$195 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1 hour.

---
