🔧 Canyon - Serpentine Belt Replacement

This repair replaces the serpentine belt on your Canyon. The serpentine belt drives front engine accessories such as the alternator, water pump, and A/C compressor, so a cracked, glazed, squealing, or frayed belt should be replaced before it fails.

Difficulty Level: Beginner | Estimated Time: 0.5-1 hour

---

⚠️ Safety & Precautions

• ⚠️ Work only with the engine completely off and cool.
• ⚠️ Keep hands, sleeves, jewelry, and tools away from the belt path.
• ⚠️ Disconnect the negative battery cable if you are new to engine-bay work. This helps prevent accidental cranking.
• ⚠️ Do not pry against plastic pulleys or coolant hoses.
• ⚠️ Take a photo of the old belt routing before removal.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 3/8-inch drive serpentine belt tool
• 3/8-inch drive breaker bar
• 15mm socket
• 10mm wrench
• Flashlight
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt - Qty: 1

---

📋 Before You Begin

• Park your Canyon on level ground.
• Shift to Park if automatic, or Neutral if manual, and set the parking brake.
• Open the hood and let the engine cool fully.
• Use a flashlight to locate the belt routing diagram sticker in the engine bay. If the sticker is missing, take clear photos of the belt path before removal.
• A serpentine belt tool is a long, thin handle used to move the spring-loaded belt tensioner in tight spaces.
• The belt tensioner is the spring-loaded pulley arm that keeps the belt tight.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the Battery

• Use a 10mm wrench to loosen the negative battery terminal clamp.
• Lift the negative cable off the battery post and tuck it aside so it cannot spring back.
• Black cable is negative.

Step 2: Locate the Serpentine Belt and Tensioner

• Use a flashlight to view the front of the engine.

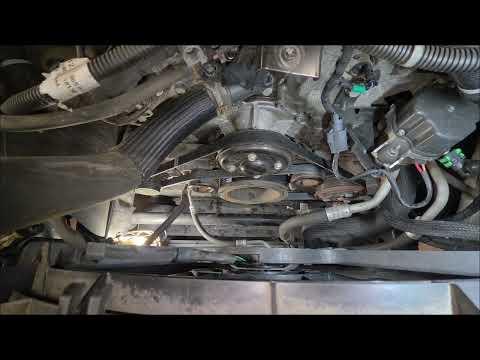

• Find the belt wrapped around the crankshaft pulley, alternator, water pump, A/C compressor, and idler/tensioner pulleys.
• Locate the tensioner pulley. It will be attached to a spring-loaded arm and usually has a square drive opening or bolt head for tool engagement.

Step 3: Record the Belt Routing

• Use your phone or a flashlight to clearly see the full belt route.
• Compare it to the under-hood belt routing label.
• Make sure you know which pulleys use the ribbed side of the belt and which use the smooth back side.
• Photo first. Remove second.

Step 4: Release Belt Tension

• Install the 3/8-inch drive serpentine belt tool or 3/8-inch drive breaker bar into the tensioner drive opening if equipped.
• If your tensioner uses a bolt-style head, use the 15mm socket with the 3/8-inch drive breaker bar.
• Rotate the tensioner slowly to relieve belt tension. Do not force it past its stop.
• While holding the tensioner released, slide the belt off the easiest smooth pulley first, usually an idler pulley.
• Slowly let the tensioner return to its resting position.

Step 5: Remove the Old Belt

• Use your hands with mechanic gloves to pull the belt out from around the pulleys.
• Note how the belt snakes around the lower crankshaft pulley before fully removing it.
• Inspect the old belt for cracks, missing ribs, shiny glazing, or oil contamination.

Step 6: Inspect the Pulleys

• Use your hands to spin the accessible idler and tensioner pulleys.
• They should spin smoothly without grinding, wobble, or rough spots.
• Use a flashlight to check that pulley grooves are clean and not packed with rubber debris.
• If a pulley is noisy or loose, replace it before installing the new belt.

Step 7: Route the New Belt

• Use your belt routing photo or under-hood routing label.
• Install the new serpentine belt around the lower pulleys first.
• Make sure the ribbed side of the belt sits fully inside ribbed pulley grooves.
• Leave the easiest smooth pulley for last, usually the upper idler pulley.
• Ribs must sit perfectly straight.

Step 8: Reapply Tension and Seat the Belt

• Use the 3/8-inch drive serpentine belt tool or 3/8-inch drive breaker bar with 15mm socket to rotate the tensioner again.
• Slip the belt over the final pulley.
• Slowly release the tensioner until it tightens the belt.
• Do not let the tensioner snap back.

Step 9: Verify Belt Alignment

• Use a flashlight to inspect every pulley.
• Confirm the belt is centered on smooth pulleys.
• Confirm every rib is seated in every grooved pulley.
• If the belt is one rib off, release the tensioner again with the 3/8-inch drive serpentine belt tool and reposition it.

Step 10: Reconnect the Battery

• Place the negative battery cable back onto the battery post.
• Use a 10mm wrench to tighten the negative battery terminal clamp snugly.
• Do not overtighten the clamp.

Step 11: Start and Check Operation

• Put on safety glasses.
• Start the engine and watch the belt from a safe distance.
• The belt should run smoothly with no wobble, squeal, slap, or walking off a pulley.
• Shut the engine off immediately if the belt is not tracking correctly.

---

✅ After Repair

• Let the engine idle for 1-2 minutes while watching the belt from a safe distance.
• Turn on the A/C briefly and listen for squealing.
• Shut the engine off and recheck belt alignment with a flashlight.
• After the first short drive, inspect the belt again to confirm it remains seated correctly.
• If you hear chirping, squealing, or grinding, inspect pulley alignment and pulley bearings before driving farther.

---

💰 DIY vs Shop Cost

Shop Cost: $130-$230 parts + labor

DIY Cost: $25-$60 parts only

You Save: $105-$170 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1 hour.

---
