🔧 Mustang - Serpentine Belt Replacement

The serpentine belt drives key accessories on your Mustang, including the alternator, water pump, and A/C compressor. Replacing it is a straightforward job, but belt routing and tensioner control are important so the new belt sits correctly on every pulley.

Difficulty Level: Beginner | Estimated Time: 0.5-1 hour

---

⚠️ Safety & Precautions

• ⚠️ Work only with the engine completely off and cool.
• ⚠️ Keep fingers, clothing, and tools away from pulleys and the belt path.
• ⚠️ Do not start the engine until the belt is fully seated on every pulley.
• ⚠️ Battery disconnect is not normally required, but keep the ignition off and key away from the vehicle while working.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 1/2-inch drive breaker bar
• 1/2-inch drive serpentine belt tool (specialty)
• 3/8-inch drive ratchet
• 8mm socket
• Flathead screwdriver
• Work light
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine drive belt - Qty: 1

---

📋 Before You Begin

• 🚗 Park your Mustang on level ground, place the transmission in neutral, and set the parking brake.
• 🧊 Let the engine cool fully before reaching near the belt or pulleys.
• 🔦 Open the hood and use a work light to locate the belt routing decal near the radiator support or underside of the hood.
• 📸 Take a clear photo of the belt path before removal. This helps if the routing decal is missing or hard to read.
• 🔧 The belt tensioner is a spring-loaded arm that keeps the belt tight. You will rotate it to release tension from the belt.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the Engine Cover if Needed

• Use both hands to lift the plastic engine cover straight upward if it blocks your view of the belt.
• If any small fasteners are installed, use an 8mm socket with a 3/8-inch drive ratchet to remove them.
• Set the cover aside where it will not be stepped on.
• Tip: Pull upward evenly.

Step 2: Inspect and Confirm the Belt Routing

• Use a work light to look at how the belt wraps around each pulley.
• Compare the belt path to the factory routing decal.
• Use your phone to take a photo before removing the belt.
• Make sure the new belt matches the old belt length and rib count before installation.

Step 3: Locate the Belt Tensioner

• Use a work light to find the spring-loaded tensioner pulley on the front of the engine.
• The tensioner has a square drive opening or tool contact point for a belt tool or breaker bar.
• A serpentine belt tool is a long, thin handle that gives extra reach in tight engine spaces.

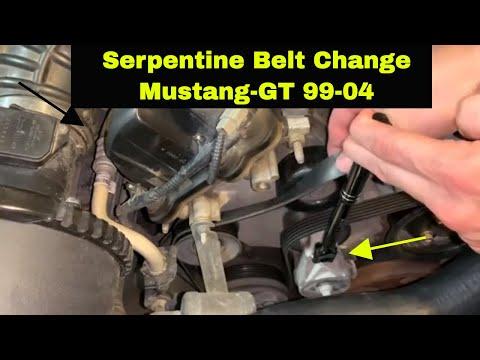

Step 4: Release Belt Tension

• Insert the 1/2-inch drive breaker bar or 1/2-inch drive serpentine belt tool into the tensioner drive point.
• Rotate the tensioner slowly to unload the belt tension.
• While holding the tensioner released, slide the belt off the easiest smooth pulley first.
• Slowly let the tensioner return to its rest position. Do not let it snap back.
• Tip: Move slowly and stay steady.

Step 5: Remove the Old Belt

• Use your hands with mechanic gloves to pull the belt off the remaining pulleys.
• If the belt catches on a plastic guide or tight area, use a flathead screwdriver gently to guide it free.
• Do not pry against pulley grooves or plastic sensors.

Step 6: Inspect the Pulleys

• Spin the accessible idler pulleys by hand while wearing mechanic gloves.
• Listen for grinding, squeaking, wobble, or rough movement.
• Look for oil, coolant, or rubber buildup on the pulleys.
• If a pulley is noisy or loose, it should be replaced before installing the new belt.

Step 7: Route the New Belt

• Use the routing decal and your photo to place the new serpentine drive belt around the pulleys.
• Leave the easiest smooth pulley for last.
• Make sure the ribbed side of the belt sits in the grooved pulleys.
• Make sure the smooth back side of the belt rides on smooth pulleys.
• Tip: Grooves match grooves.

Step 8: Reapply Tension and Seat the Belt

• Use the 1/2-inch drive breaker bar or 1/2-inch drive serpentine belt tool to rotate the tensioner again.
• Slide the belt over the final pulley.
• Slowly release the tensioner until it tightens the belt.
• There is no manual torque adjustment for the belt tensioner because it is spring-loaded.

Step 9: Verify Belt Alignment

• Use a work light to inspect every pulley from above.
• Confirm the belt is centered and fully seated in each pulley groove.
• If any rib is hanging off a pulley edge, use the 1/2-inch drive breaker bar to release tension and correct the belt position.
• Do not start the engine with the belt misaligned.

Step 10: Reinstall the Engine Cover

• Push the engine cover straight down into place by hand.
• If fasteners were removed, use the 8mm socket and 3/8-inch drive ratchet to reinstall them snugly.
• Do not overtighten small plastic-cover fasteners.

---

✅ After Repair

• ✅ Remove all tools from the engine bay before starting the engine.
• ✅ Start your Mustang and let it idle for 30-60 seconds.
• ✅ Watch the belt from a safe distance to confirm it runs smoothly and stays centered.
• ✅ Turn the A/C on and listen for squealing, chirping, or slapping sounds.
• ✅ Shut the engine off and recheck belt seating after the first short drive.

---

💰 DIY vs Shop Cost

Shop Cost: $140-$260 parts + labor

DIY Cost: $35-$80 parts only

You Save: $100-$180 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1 hour.

---
