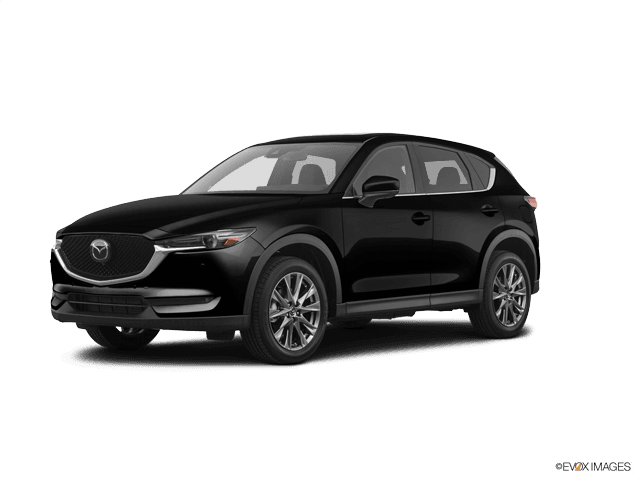

🔧 CX-5 - Serpentine Belt Replacement

This repair replaces the main accessory drive belt on your CX-5. The serpentine belt drives important accessories like the alternator, A/C compressor, and water pump-related accessory drive components, so a cracked, squealing, glazed, or worn belt should be replaced before it fails.

Difficulty Level: Beginner | Estimated Time: 0.7-1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work only with the engine off and fully cool.
• ⚠️ Keep fingers, clothing, hair, and tools away from pulleys and the belt path.
• ⚠️ Do not start the engine until the belt is fully seated in every pulley groove.
• ⚠️ Battery disconnect is recommended because your hands will be near rotating engine accessories.
• ⚠️ Support the vehicle with jack stands if raising the front. Never work under a vehicle held only by a jack.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Wheel chocks
• Floor jack 2-ton minimum
• Jack stands 2-ton minimum
• Plastic trim clip remover
• Phillips screwdriver #2
• 8mm socket
• 10mm socket
• 14mm socket
• Ratchet 3/8-inch drive
• Breaker bar 3/8-inch drive
• Serpentine belt tool 3/8-inch drive (specialty)
• Flashlight
• Torque wrench 3/8-inch drive

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt - Qty: 1
• Accessory belt tensioner - Qty: 1 if noisy, weak, leaking, or misaligned
• Idler pulley - Qty: 1 if noisy, rough, or loose

---

📋 Before You Begin

• Park your CX-5 on level ground and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Open the hood and let the engine cool completely.
• Use a flashlight to look for the belt routing sticker under the hood. If the sticker is missing, take a clear photo of the belt path before removal.
• The belt tensioner is a spring-loaded arm that keeps the belt tight automatically.
• The idler pulley is a smooth or grooved wheel that guides the belt but does not power an accessory.
• Use the 10mm socket to loosen the negative battery terminal nut, then remove the negative cable and move it aside so it cannot spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the Front Passenger Side

• Use the floor jack 2-ton minimum at the front jacking point to raise the front of your CX-5 enough to access the lower splash shield area.
• Place jack stands 2-ton minimum under the proper front support points.
• Gently lower the vehicle onto the jack stands.
• Give the vehicle a light shake by hand to confirm it is stable.
• Never trust the jack alone.

Step 2: Remove the Lower Access Cover

• Use the plastic trim clip remover to remove the push clips from the lower engine splash shield access area.
• Use the Phillips screwdriver #2 or 8mm socket to remove the small screws if equipped.
• Use the 10mm socket to remove any small bolts holding the shield section.
• Set the clips and fasteners aside in order.

Step 3: Locate the Belt Tensioner

• Use the flashlight from above and below to find the serpentine belt tensioner on the accessory belt path.
• Find the square-drive opening or hex boss on the tensioner arm.
• The square-drive opening is a square hole where a ratchet or belt tool fits to rotate the tensioner.

Step 4: Release Belt Tension

• Install the serpentine belt tool 3/8-inch drive or breaker bar 3/8-inch drive into the tensioner square-drive opening.
• If your tensioner uses a bolt head instead, use the 14mm socket on the breaker bar.
• Rotate the tensioner slowly to relieve belt tension.
• Hold the tensioner steady while slipping the belt off the easiest accessible smooth pulley by hand.
• Do not let the tensioner snap back. Slowly return it to its resting position.

Step 5: Remove the Old Belt

• Use your hands to slide the old belt off the remaining pulleys.
• Pull the belt out through the lower access area.
• Compare the old belt with the new serpentine belt to confirm the same length and rib count.
• Ribs are the small lengthwise grooves on the inside of the belt that fit into grooved pulleys.

Step 6: Inspect Pulleys and Tensioner

• Use your hand to spin each accessible idler pulley and accessory pulley.
• Listen for grinding, squeaking, or roughness.
• Use the flashlight to check that pulleys line up straight and are not wobbling.
• If the tensioner arm is leaking fluid, bouncing, crooked, or weak, replace the accessory belt tensioner before installing the new belt.
• A bad pulley ruins new belts fast.

Step 7: Route the New Belt

• Use your belt routing photo or under-hood routing sticker.
• Route the new serpentine belt around the lower pulleys first by hand.
• Make sure the ribbed side of the belt sits in grooved pulleys.
• Make sure the smooth back side of the belt runs against smooth pulleys.
• Leave the easiest upper smooth pulley for last.

Step 8: Install the Belt Over the Last Pulley

• Use the serpentine belt tool 3/8-inch drive or breaker bar 3/8-inch drive to rotate the tensioner again.
• Slip the belt over the final pulley by hand.
• Slowly release the tensioner until it tightens the belt.
• Remove the serpentine belt tool or breaker bar.

Step 9: Verify Belt Seating

• Use the flashlight to inspect every pulley from above and below.
• Make sure the belt ribs sit fully inside the pulley grooves.
• Make sure the belt is centered on every smooth pulley.
• If any rib hangs off the edge, use the serpentine belt tool 3/8-inch drive to release tension and reposition the belt by hand.

Step 10: Reinstall the Lower Access Cover

• Raise the lower splash shield access cover into place by hand.
• Use the plastic trim clip remover to reinstall the push clips.
• Use the Phillips screwdriver #2 or 8mm socket to reinstall small screws.
• Use the 10mm socket to reinstall any small bolts.
• Torque small splash shield bolts to 7-9 Nm (62-80 in-lbs)

Step 11: Lower the Vehicle

• Use the floor jack 2-ton minimum to raise your CX-5 slightly off the jack stands.
• Remove the jack stands by hand.
• Slowly lower the vehicle to the ground with the floor jack.

Step 12: Reconnect the Battery

• Place the negative battery cable back onto the battery terminal by hand.
• Use the 10mm socket to tighten the negative terminal nut.
• Torque battery terminal nut to 4-6 Nm (35-53 in-lbs)
• Do not overtighten the battery terminal.

---

✅ After Repair

• Start your CX-5 and let it idle for 30-60 seconds.
• Watch the belt from a safe distance. It should run smoothly with no wobble, squeal, or edge walking.
• Turn the A/C on and listen for belt noise.
• Shut the engine off and recheck belt seating with the flashlight.
• If the battery was disconnected, reset the clock and auto window function if needed.
• For auto window reset, use the driver window switch to lower the window fully, then raise it fully and hold the switch up for about 2 seconds.

---

💰 DIY vs Shop Cost

Shop Cost: $160-$300 (parts + labor)

DIY Cost: $25-$75 (parts only)

You Save: $135-$225 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.6-1.0 hours.

---
