🔧 Wrangler - Serpentine Belt Replacement

The serpentine belt on your Wrangler drives key accessories like the alternator and A/C. Replacing it is mostly about safely releasing the belt tensioner, routing the new belt correctly, and confirming it’s seated in every pulley groove.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine to avoid burns.
• ⚠️ Keep fingers, hair, and clothing away from pulleys and the fan area.
• ⚠️ Do not start the engine with tools in the engine bay.
• ⚠️ Battery disconnect is not required, but keep the key away from the vehicle so nobody can start it.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 15mm serpentine belt tool (specialty)
• 15mm combination wrench
• 8mm nut driver
• Flathead screwdriver
• Plastic trim removal tool
• Flashlight
• Mechanic’s gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park/gear, and set the parking brake.
• Open the hood and let the engine cool fully.

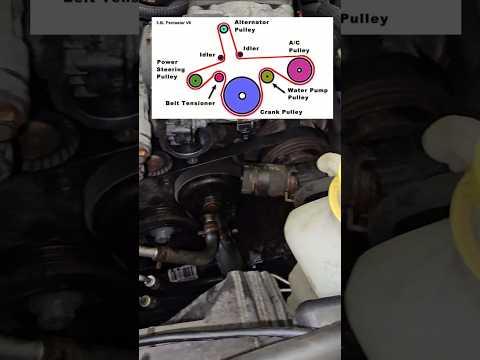

• Find the belt routing diagram (usually on a sticker in the engine bay). If it’s missing, take a clear photo of the current routing before removal.
• Locate the belt tensioner (a spring-loaded pulley that keeps the belt tight).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover (if equipped)

• Use a plastic trim removal tool and pull straight up to release the cover from its rubber grommets.
• Set the cover aside where it won’t get stepped on.

Step 2: Move the air intake tube if it blocks access (only if needed)

• Use an 8mm nut driver to loosen the hose clamps.
• Use a flathead screwdriver to gently help lift any stuck hoses, then move the tube/resonator aside without yanking on sensors or wiring.
• Don’t force it—recheck for clips/clamps.

Step 3: Release belt tension

• Place a 15mm serpentine belt tool (specialty) (or 15mm combination wrench) on the tensioner’s 15mm hex.
• Rotate the tensioner to relieve belt tension (it is spring-loaded, so it will fight you).
• While holding the tensioner rotated, slide the belt off the easiest-to-reach top pulley using your free hand.
• Slowly release the tensioner back to its resting position (do not let it snap back).

Step 4: Remove the old belt

• Pull the belt out of the remaining pulleys by hand.
• Use a flashlight to inspect pulleys for wobble, damage, or heavy rubber dust buildup.

Step 5: Route the new belt

• Compare the new belt to the old belt length and rib count before installing.
• Route the new belt following the routing diagram you photographed/stickered.
• Make sure the belt ribs sit fully in the grooved pulleys and the belt sits centered on smooth pulleys.
• If one rib is off, it will shred.

Step 6: Apply tension and seat the belt

• Use the 15mm serpentine belt tool (specialty) (or 15mm combination wrench) to rotate the tensioner again.
• Slip the belt over the last pulley.
• Slowly release the tensioner.
• Use a flashlight to re-check every pulley: the belt must be fully seated in all grooves.

Step 7: Reinstall anything removed

• If you moved the intake tube, reinstall it and tighten clamps with an 8mm nut driver.
• Reinstall the engine cover by pressing it down into the grommets by hand.

---

✅ After Repair

• Start the engine and watch the belt for 20–30 seconds. It should run straight with no hopping or wandering.
• Listen for squealing, chirping, or slapping sounds. If you hear any, shut off the engine and re-check belt routing and seating.
• Take a short test drive, then do one last quick visual check.

---

💰 DIY vs Shop Cost

Shop Cost: $150-$300 (parts + labor)

DIY Cost: $25-$60 (parts only)

You Save: $125-$240 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
