🔧 F-150 - Serpentine Belt Replacement

Replacing the serpentine belt on your F-150 is a straightforward job. The belt runs the front engine accessories, so a worn or cracked belt can cause charging, cooling, or A/C problems.

Difficulty Level: Beginner | Estimated Time: 30-60 minutes

---

⚠️ Safety & Precautions

• ⚠️ Work with the engine off and completely cool.
• ⚠️ Keep hands, clothing, and tools away from the cooling fan and pulleys.
• ⚠️ The belt tensioner is spring-loaded, meaning it can move back quickly if released suddenly.
• ⚠️ Do not start the engine until the belt is fully seated in every pulley groove.
• ⚠️ Battery disconnect is optional for this repair, but recommended for first-time DIYers working close to the fan and alternator area.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 1/2-inch drive breaker bar
• 1/2-inch drive ratchet
• 10mm socket
• Serpentine belt tool (specialty)
• Flat-blade screwdriver
• Work light
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Serpentine belt - Qty: 1

---

📋 Before You Begin

• 🅿️ Park your F-150 on level ground, shift to Park, and set the parking brake.
• ❄️ Let the engine cool fully before reaching into the engine bay.
• 📸 Take a photo of the existing belt routing before removing the belt.
• 🔦 Use a work light to find the belt routing sticker under the hood or near the radiator support.
• 🔋 If disconnecting the battery, use a 10mm socket to loosen the negative battery terminal and move the cable away from the post.
• 🧠 A serpentine belt tool is a long, slim handle that helps move the spring-loaded belt tensioner in tight spaces.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Find the Belt Routing Diagram

• Use a work light to locate the belt routing diagram under the hood.
• Compare the diagram to the actual belt path on the front of the engine.
• If the sticker is missing, use the photo you took before starting.
• The ribbed side of the belt rides on ribbed pulleys, and the smooth side rides on smooth pulleys.
• Photo first, tools second.

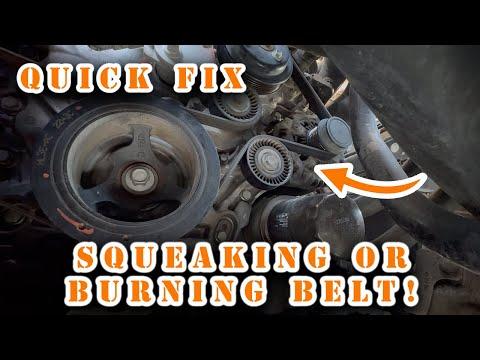

Step 2: Locate the Belt Tensioner

• Use a work light and look at the front of the engine for the spring-loaded tensioner arm.
• The tensioner has a pulley on it and keeps the belt tight automatically.
• Look for the square 1/2-inch drive opening on the tensioner arm.

Step 3: Release Belt Tension

• Insert the 1/2-inch drive breaker bar or serpentine belt tool into the tensioner’s square drive opening.
• Slowly rotate the tensioner to remove tension from the belt.
• While holding the tensioner, slide the belt off one smooth upper pulley by hand.
• Slowly let the tensioner return to its resting position.
• Do not let the tool snap back.

Step 4: Remove the Old Belt

• Use your hands to pull the old belt off the remaining pulleys.
• If the belt hangs up, use a flat-blade screwdriver gently to guide it around the pulley edge.
• Do not pry hard against plastic covers or pulley grooves.
• Lift the old belt out of the engine bay.

Step 5: Compare the Old Belt to the New Belt

• Lay the old belt and new serpentine belt next to each other.
• Check that the new belt has the same width and same number of ribs.
• The old belt may be slightly longer from normal stretching.
• If the new belt has a different rib count, do not install it.

Step 6: Inspect the Pulleys

• Use mechanic gloves and spin each accessible pulley by hand.
• Feel for grinding, wobbling, roughness, or looseness.
• Use a work light to check for oil or coolant on the pulleys.
• If a pulley is noisy or loose, replace that pulley before installing the new belt.

Step 7: Route the New Belt

• Use the belt routing diagram and begin routing the new belt around the lower pulleys first.
• Use your hands to place the ribbed side of the belt into the ribbed pulleys.
• Route the smooth side of the belt over smooth pulleys.
• Leave the easiest smooth upper pulley for last.
• Keep every rib seated.

Step 8: Move the Tensioner Again

• Insert the 1/2-inch drive breaker bar or serpentine belt tool into the tensioner.
• Slowly rotate the tensioner to create slack in the belt.
• Slide the belt over the last pulley by hand.
• Slowly release the tensioner until it tightens the belt.

Step 9: Check Belt Alignment

• Use a work light to inspect every pulley.
• Make sure the belt is centered and fully seated in all pulley grooves.
• If the belt is one rib off, use the 1/2-inch drive breaker bar to release tension and reposition it.
• No mounting bolts are removed for normal belt replacement, so no torque spec is required.

Step 10: Reconnect the Battery if Disconnected

• Place the negative battery cable back onto the battery post.
• Use a 10mm socket and 1/2-inch drive ratchet to snug the terminal clamp.
• Do not overtighten the battery terminal.

---

✅ After Repair

• ✅ Start the engine and watch the belt from a safe distance for 20-30 seconds.
• ✅ The belt should run smoothly with no squeal, wobble, or jumping.
• ✅ Turn the A/C on and make sure the belt still tracks correctly.
• ✅ Shut the engine off and recheck that the belt is fully seated.
• ✅ If you hear squealing, stop the engine and recheck routing and pulley alignment.

---

💰 DIY vs Shop Cost

Shop Cost: $140-$260 parts + labor

DIY Cost: $35-$85 parts only

You Save: $105-$175 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hour.

---
