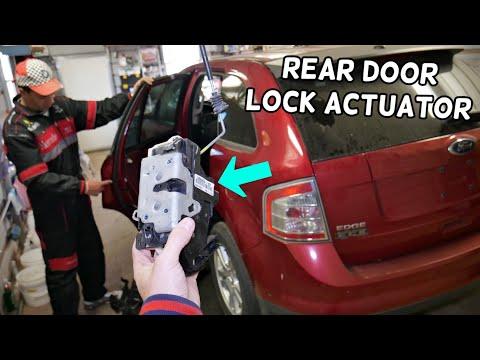

🔧 Edge - Rear Door Lock Actuator Replacement

The rear door lock actuator is built into the rear door latch assembly on your Edge. Replacing it means removing the rear door trim panel, peeling back the water shield, disconnecting the latch cables and electrical connector, then replacing the latch/actuator assembly.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before unplugging door electrical connectors.
• ⚠️ Keep the rear window fully raised before starting so the glass does not block access inside the door.
• ⚠️ Do not pull hard on door wiring. Release connector locks first.
• ⚠️ Do not close the rear door until the latch is tested and confirmed open.
• ⚠️ Wear gloves because the inside of the door shell has sharp metal edges.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm wrench
• 7mm socket
• 8mm socket
• 10mm socket
• Ratchet 1/4-inch drive
• Ratchet extension 6-inch
• Torx T20 screwdriver
• Torx T25 screwdriver
• Torx T30 socket
• Torx T40 socket
• Trim clip removal tool
• Plastic pry tool set
• Pick tool 90-degree
• Needle-nose pliers
• Flat-blade screwdriver 1/4-inch
• Painter’s tape 1-inch
• Torque wrench inch-pound
• Work gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear door lock actuator/latch assembly - Qty: 1
• Rear door trim panel retaining clips - Qty: As needed
• Rear door latch mounting screws - Qty: 3 if damaged or corroded
• Butyl sealing tape - Qty: As needed if vapor barrier seal is damaged

---

📋 Before You Begin

• Park your Edge on level ground and set the parking brake.
• Fully raise the rear window on the door you are repairing.
• Turn the ignition off and keep the key fob away from the vehicle.
• Use a 10mm wrench to disconnect the negative battery cable. Wait at least 1 minute before unplugging door connectors.
• Apply painter’s tape 1-inch around the door panel edges if you want extra scratch protection.
• If working on the rear door with child safety lock issues, leave another door open so you do not lock yourself out during testing.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the Rear Door Handle Trim Cover

• Use a plastic pry tool set to gently lift the trim cover inside the rear door pull handle.
• Work around the edges slowly so the plastic tabs do not break.
• Use plastic tools only.

Step 2: Remove the Rear Door Panel Screws

• Use a 7mm socket with a ratchet 1/4-inch drive and ratchet extension 6-inch to remove the screws hidden behind the handle trim cover.
• Use a Torx T20 screwdriver or Torx T25 screwdriver to remove any small screws at the lower edge or inner handle area, if present.
• Put the screws in a cup or magnetic tray so they do not get lost.

Step 3: Release the Rear Door Trim Panel Clips

• Use a trim clip removal tool at the lower rear corner of the door panel.
• Pop the clips loose one at a time along the bottom and sides.
• A trim clip removal tool is a fork-shaped pry tool that pulls plastic clips out evenly.
• Once the clips are free, lift the panel straight upward to unhook it from the window ledge.

Step 4: Disconnect Rear Door Panel Wiring and Cable

• Hold the rear door panel close to the door so the wires are not stretched.
• Use a pick tool 90-degree to release connector lock tabs if needed, then unplug the window switch and courtesy light connectors.
• Use needle-nose pliers to rotate the inside handle cable retainer out of its bracket.
• Unhook the cable end from the interior handle lever.
• Set the panel on a clean towel with the finished side facing up.

Step 5: Peel Back the Rear Door Water Shield

• Use a plastic pry tool set to carefully separate the water shield from the sticky black butyl seal.
• Butyl sealing tape is a soft adhesive strip that keeps water from entering the cabin.
• Peel back only the rear section near the latch area.
• Do not tear the shield. It must reseal later.

Step 6: Photograph the Latch Cables and Rods

• Use your phone to take a clear photo of the latch area before disconnecting anything.
• This helps you reinstall each cable and rod in the correct place.
• Use a work light if visibility is poor.
• Photos prevent mix-ups.

Step 7: Disconnect the Rear Latch Electrical Connector

• Use a pick tool 90-degree to release the lock tab on the latch electrical connector.
• Pull the connector straight out by the plastic body.
• Do not pull on the wires.

Step 8: Disconnect the Latch Rods and Cables

• Use a pick tool 90-degree to flip open each plastic retaining clip on the latch rods or cables.
• Use needle-nose pliers to lift the rod or cable end out of the latch lever.
• Keep each rod/cable in the same routing path it had originally.
• Make sure the child safety lock cable or lever is not forced or bent.

Step 9: Remove the Rear Door Latch Screws

• Open the rear door and look at the rear edge where the latch grabs the body striker.
• Use a Torx T30 socket or Torx T40 socket with a ratchet 1/4-inch drive to remove the 3 latch mounting screws.
• Hold the latch inside the door with your other hand while removing the last screw.
• Keep the Torx bit fully seated so the screw heads do not strip.

Step 10: Remove the Rear Lock Actuator/Latch Assembly

• Guide the latch/actuator assembly out through the rear door access opening by hand.
• Use a plastic pry tool set to gently move wiring or the water shield aside if needed.
• Compare the old and new assemblies before installation. Connector shape, latch shape, and lever positions should match.

Step 11: Install the New Rear Lock Actuator/Latch Assembly

• Place the new latch/actuator assembly inside the door by hand.
• Line it up with the 3 mounting holes on the rear door edge.
• Start all 3 latch screws by hand first to avoid cross-threading.
• Use a Torx T30 socket or Torx T40 socket with a torque wrench inch-pound to Torque to 10 Nm (89 in-lbs).

Step 12: Reconnect Rods, Cables, and Electrical Connector

• Use needle-nose pliers to place each cable or rod end into the correct latch lever.
• Use a pick tool 90-degree to snap each plastic retaining clip fully closed.
• Push the electrical connector into the latch by hand until it clicks.
• Confirm the child safety lock lever moves freely if equipped.

Step 13: Test the Rear Latch Before Closing the Door

• Use a flat-blade screwdriver 1/4-inch to push the latch claw closed, simulating the body striker.
• Reconnect the negative battery cable temporarily using a 10mm wrench.
• Press the lock and unlock switch to confirm actuator movement.
• Pull the inside handle cable by hand and confirm the latch releases.
• Use the flat-blade screwdriver 1/4-inch to make sure the latch is reset to the open position before closing the door.
• Test before final assembly.

Step 14: Reseal the Water Shield

• Use your fingers and a plastic pry tool set to press the water shield back into the butyl seal.
• If the butyl is no longer sticky, apply butyl sealing tape to the weak area.
• Seal the lower edge carefully so water drains out of the door instead of into the cabin.

Step 15: Reinstall the Rear Door Trim Panel

• Reconnect the inside handle cable by hand and lock its retainer into the bracket.
• Reconnect the window switch and courtesy light connectors by hand until they click.
• Hook the top of the panel over the window ledge.
• Press around the panel edges with your palm to seat the retaining clips.
• Use a 7mm socket with a ratchet 1/4-inch drive to reinstall the panel screws.
• Use a Torx T20 screwdriver or Torx T25 screwdriver to reinstall any small trim screws removed earlier.

Step 16: Reinstall Trim Covers and Finalize

• Snap the rear door handle trim cover back into place by hand.
• Use a 10mm wrench to reconnect and tighten the negative battery cable.
• Do not overtighten the battery terminal clamp.

---

✅ After Repair

• Test lock and unlock from the key fob, driver door switch, and rear door switch.
• Test the inside and outside rear door handles several times.
• Check child safety lock operation if equipped.
• Close the rear door gently the first time and confirm it latches and opens normally.
• Check that the window switch, speaker, courtesy light, and lock switch work correctly.
• If one-touch window operation acts up after battery disconnect, run the window fully down and hold 2 seconds, then fully up and hold 2 seconds.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $90-$250 (parts only)

You Save: $260-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1-2 hours.

---
