🔧 Fusion - Rear Door Lock Actuator Replacement

This repair replaces the rear door lock actuator, which is the small electric motor/latch assembly that locks and unlocks the door when you use the key fob or door switch.

On your Fusion, the rear door actuator is integrated into the rear door latch assembly, so the latch/actuator unit is replaced as one assembly.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before unplugging door electrical connectors to avoid short circuits.
• ⚠️ The door panel has plastic clips that can break if pulled at the wrong angle. Use trim tools, not screwdrivers, whenever possible.
• ⚠️ Support the door panel while disconnecting wiring so it does not hang by the harness.
• ⚠️ Keep fingers clear of the latch opening when testing the lock. The latch can snap shut quickly.
• ⚠️ Do not close the door until you confirm the latch and lock operate correctly.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 7mm socket
• Ratchet with 3/8-inch drive
• 6-inch extension with 3/8-inch drive
• Torx T20 screwdriver
• Torx T25 screwdriver
• Torx T30 screwdriver
• Plastic trim removal tool set
• Pick tool set
• Needle-nose pliers
• Panel clip removal pliers
• Painter’s tape
• Torque wrench rated 5-50 Nm
• Work light
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear door lock actuator/latch assembly - Qty: 1
• Rear door trim panel clips - Qty: 4-8
• Butyl sealing tape - Qty: 1 roll

---

📋 Before You Begin

• Park your Fusion on level ground and set the parking brake.
• Lower the rear door window fully. This gives more room to work inside the door.
• Open the rear door you are repairing and keep it open during the job.
• Use painter’s tape on painted edges near the latch area to help prevent scratches.
• Disconnect the negative battery cable with a 10mm socket. Wait 2 minutes before unplugging door connectors.
• A trim tool is a plastic pry tool that removes panels without scratching the door.
• Butyl sealing tape is sticky black body sealer used to reseal the plastic moisture barrier inside the door.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect Battery Power

• Open the hood and locate the battery.
• Use a 10mm socket and ratchet to loosen the negative battery cable clamp.
• Move the negative cable away from the battery post so it cannot accidentally touch.
• Take a quick photo first.

Step 2: Remove the Rear Door Switch Trim

• Use a plastic trim removal tool to carefully lift the rear door window switch trim from the armrest.
• Press the connector lock tab with a pick tool, then unplug the window switch connector.
• Set the switch trim somewhere safe.

Step 3: Remove Hidden Door Panel Screws

• Use a plastic trim removal tool to remove the small screw covers in the pull handle and lower trim areas.
• Use a 7mm socket with ratchet and extension to remove the door panel screws.
• Use a Torx T20 screwdriver or Torx T25 screwdriver if your door panel has Torx-style fasteners instead of 7mm screws.
• Keep all screws grouped by location so reassembly is easier.

Step 4: Release the Rear Door Trim Panel

• Start at the lower rear edge of the door panel.
• Use a panel clip removal pliers or plastic trim removal tool to pop the panel clips loose one at a time.
• Lift the door panel upward to unhook it from the top window channel.
• Hold the panel close to the door while you disconnect anything still attached.
• Do not yank the panel.

Step 5: Disconnect Door Panel Cables and Connectors

• Use a pick tool to release the lock tab on any electrical connectors.
• Use needle-nose pliers to carefully unclip the inside door handle cable from the handle lever.
• Remove the door panel from the vehicle and place it trim-side up on a clean surface.

Step 6: Peel Back the Moisture Barrier

• The moisture barrier is the plastic sheet sealed to the inside of the door to keep water away from the trim panel.
• Use a plastic trim removal tool to slowly separate the butyl sealer around the rear half of the moisture barrier.
• Do not tear the barrier. You will reuse it.
• If the sealer stretches or becomes dirty, plan to refresh it with butyl sealing tape during reassembly.

Step 7: Disconnect the Exterior Handle/Latch Rods

• Look through the rear access opening inside the door with a work light.
• Use a pick tool to rotate the small plastic retaining clips away from the latch rods.
• Use needle-nose pliers to gently lift the rods out of the latch levers.
• Take a photo before removing each rod so you know exactly where it goes back.
• Photos prevent mix-ups.

Step 8: Unplug the Lock Actuator Connector

• Find the electrical connector on the rear door latch/actuator assembly.
• Use a pick tool to press the connector locking tab.
• Pull the connector straight off the actuator. Do not pull on the wires.

Step 9: Remove the Rear Door Latch/Actuator Assembly

• Go to the rear edge of the open door where the latch grabs the striker.
• Use a Torx T30 screwdriver to remove the three latch retaining screws.
• Support the latch inside the door with your other hand as the last screw comes out.

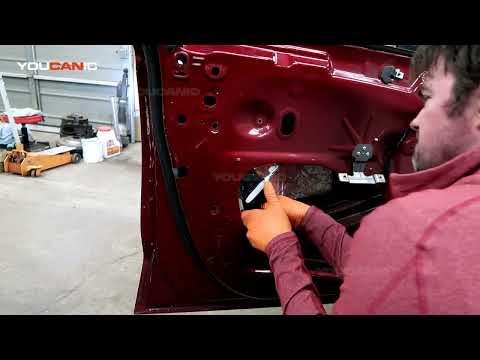

• Guide the latch/actuator assembly out through the door access opening.

Step 10: Compare the Old and New Actuator/Latch

• Place both assemblies side by side on a clean surface.
• Check that the connector shape, latch shape, cable/rod locations, and mounting holes match.
• Move any reusable rubber guides or rod clips from the old latch to the new latch using a pick tool, if needed.

Step 11: Install the New Rear Door Actuator/Latch

• Guide the new latch/actuator assembly into the door through the access opening.
• Align it with the latch screw holes at the rear edge of the door.
• Start all three latch screws by hand first to avoid cross-threading.
• Use a Torx T30 screwdriver to snug the screws evenly.
• Use a torque wrench rated 5-50 Nm with the correct Torx bit to tighten the latch screws to Torque to 10 Nm (89 in-lbs).

Step 12: Reconnect Rods, Cables, and Electrical Connector

• Use needle-nose pliers to place each latch rod back into its correct lever.
• Use a pick tool to rotate each plastic retaining clip fully closed.
• Push the electrical connector onto the actuator until it clicks.
• Gently tug the connector by the plastic body to confirm it is locked.

Step 13: Test Before Reinstalling the Door Panel

• Reconnect the negative battery cable temporarily using a 10mm socket.
• Use a screwdriver handle or similar blunt tool to close the latch jaw while the door remains open.
• Use the key fob and door switch to lock and unlock the latch.
• Pull the inside handle and outside handle to confirm the latch releases correctly.
• Use a 10mm socket to disconnect the negative battery cable again before continuing.
• Test now, not later.

Step 14: Reseal the Moisture Barrier

• Press the moisture barrier back into place by hand.
• If the original sealer no longer sticks, apply fresh butyl sealing tape around the edge.
• Use a plastic trim removal tool to press the barrier firmly into the butyl sealer.
• Make sure wiring passes through the correct openings and is not pinched.

Step 15: Reinstall the Rear Door Panel

• Reconnect the inside handle cable using needle-nose pliers.
• Reconnect all electrical connectors by hand until they click.
• Hang the top of the door panel over the window channel.
• Line up the clips with the holes in the door.
• Press around the door panel by hand until each clip snaps in.

Step 16: Reinstall Door Panel Screws and Switch Trim

• Use a 7mm socket to reinstall the door panel screws.
• If equipped with Torx screws, use the matching Torx T20 screwdriver or Torx T25 screwdriver.
• Tighten door trim screws snug only. Do not overtighten plastic trim.
• Reconnect the rear window switch connector by hand.
• Press the switch trim back into the armrest until it clicks.

Step 17: Reconnect the Battery

• Install the negative battery cable onto the battery post.
• Use a 10mm socket to tighten the cable clamp.
• Do not overtighten the battery terminal clamp.

---

✅ After Repair

• ✅ Test the rear door lock with the key fob, driver door lock switch, and rear door switch.
• ✅ Test the inside and outside door handles several times before closing the door fully.
• ✅ Close the door gently the first time and confirm it latches normally.
• ✅ Check that the rear window switch works.
• ✅ If the one-touch window function acts oddly after battery disconnect, run the window fully down and fully up while holding the switch for 2 seconds at each end.
• ✅ Listen for rattles on a short drive. If you hear one, a clip or rod may not be fully seated.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 USD equivalent (parts + labor)

DIY Cost: $90-$230 USD equivalent (parts only)

You Save: $260-$420 USD equivalent by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.2-2.0 hours.

---
