🔧 Grand Cherokee - Rear Door Lock Actuator Replacement

This repair replaces the rear door lock actuator, which is the electric latch motor assembly that locks and unlocks the rear door. On your Grand Cherokee, the actuator is integrated with the rear door latch, so the latch/actuator assembly is replaced as one unit.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before unplugging door electrical connectors.
• ⚠️ Keep your fingers away from the latch opening while testing the lock.
• ⚠️ Use plastic trim tools so you do not crack the rear door panel or scratch the trim.
• ⚠️ Work slowly around the door vapor barrier; tearing it can cause water leaks into the cabin.
• ⚠️ Support the door panel with one hand when removing it so wiring is not pulled tight.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• Ratchet handle
• Socket extension 6-inch
• Phillips #2 screwdriver
• Torx T20 screwdriver
• Torx T30 socket
• Trim panel removal tool set
• Pick tool set
• Needle-nose pliers
• Small flathead screwdriver
• Painter’s tape 1-inch
• Torque wrench inch-pound
• Work gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear door latch and lock actuator assembly - Qty: 1
• Rear door trim panel clips - Qty: 4-6
• Butyl sealing tape - Qty: 1 roll

---

📋 Before You Begin

• 🅿️ Park your Grand Cherokee on level ground and set the parking brake.
• 🔓 Lower the rear door window fully. This gives you more hand room inside the door.
• 🔑 Keep the key fob away from the vehicle while working so the locks are not triggered accidentally.
• 🔋 Use a 10mm socket to disconnect the negative battery cable, then wait 2 minutes before unplugging door connectors.
• 🧰 A trim panel tool is a plastic pry tool used to pop door clips loose without damaging the panel.
• 🧲 Butyl sealing tape is a sticky black sealant used to reseal the plastic water shield behind the door panel.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Protect the Door Trim

• Use painter’s tape 1-inch around the inner door handle trim and switch panel edges.
• Put on safety glasses and work gloves.
• Work slowly near soft trim.

Step 2: Remove the Rear Door Switch Panel

• Use a trim panel removal tool set to gently pry up the rear door window switch panel.
• Use a small flathead screwdriver to press the connector locking tab.
• Unplug the window switch connector and set the switch panel aside.

Step 3: Remove Hidden Door Panel Screws

• Use a Phillips #2 screwdriver or Torx T20 screwdriver to remove the screw inside the armrest pull area, depending on fastener style.
• Use a Torx T20 screwdriver to remove the screw behind the inside door handle trim cover if equipped.
• Use a pick tool set carefully to lift any small trim caps hiding screws.

Step 4: Release the Door Panel Clips

• Use the trim panel removal tool set at the lower rear edge of the door panel.
• Pry outward one clip at a time around the bottom and sides of the panel.
• When all clips are loose, lift the panel straight upward off the window ledge.
• Do not yank the panel.

Step 5: Disconnect Door Panel Cables and Wiring

• Hold the panel close to the door so the wiring is not stretched.
• Use a small flathead screwdriver to release any electrical connector locks.
• Use needle-nose pliers to unclip the inside door handle cable from the handle lever.
• Set the door panel on a clean towel or soft surface.

Step 6: Peel Back the Water Shield

• Use a trim panel removal tool set or your fingers to slowly peel the plastic water shield away from the rear latch area.
• Do not remove the whole shield unless needed.
• If the sealant no longer sticks, use butyl sealing tape during reassembly.
• Keep the shield clean.

Step 7: Disconnect the Latch Electrical Connector

• Locate the rear door latch at the back edge of the door.
• Use a small flathead screwdriver to unlock the latch actuator electrical connector tab.
• Pull the connector straight off by the connector body, not the wires.

Step 8: Disconnect the Lock Rods and Release Cables

• Use a pick tool set to flip open the plastic rod retainers at the latch.
• Use needle-nose pliers to slide the rods out of their clips.
• Use needle-nose pliers to release the outside handle cable from the latch lever if equipped.
• Take a quick photo before removing rods so reassembly is easier.

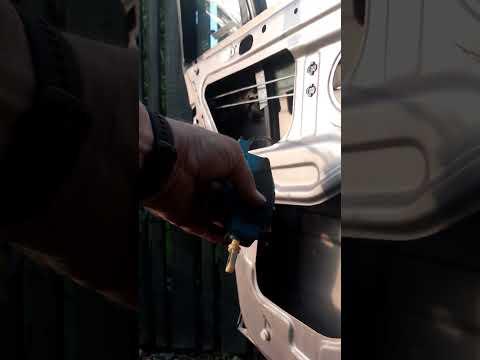

Step 9: Remove the Rear Door Latch/Actuator Assembly

• Use a Torx T30 socket, ratchet handle, and socket extension 6-inch to remove the three latch screws from the rear edge of the door.
• Support the latch with your hand inside the door while removing the last screw.
• Guide the latch/actuator assembly out through the door access opening.

Step 10: Install the New Latch/Actuator Assembly

• Guide the new rear door latch and lock actuator assembly into the door by hand.
• Start all three latch screws by hand to avoid cross-threading.
• Use a Torx T30 socket and torque wrench inch-pound to tighten the latch screws to Torque to 9 Nm (80 in-lbs).

Step 11: Reconnect Rods, Cables, and Connector

• Use needle-nose pliers to reinstall each lock rod into its original latch lever.
• Use the pick tool set to snap each plastic rod retainer closed.
• Reconnect the outside handle cable if equipped.
• Push the actuator electrical connector on until it clicks.

Step 12: Function-Test Before Closing the Door

• Use a 10mm socket to temporarily reconnect the negative battery cable.
• Use a screwdriver handle or similar blunt tool to rotate the latch closed while the door stays open.
• Use the door switch and key fob to test lock and unlock operation.
• Pull the inside and outside handles to make sure the latch releases correctly.
• Use a 10mm socket to disconnect the negative battery cable again before final reassembly.
• Never slam-test an open latch.

Step 13: Reseal the Water Shield

• Press the water shield back onto the original sealant by hand.
• Use butyl sealing tape anywhere the original sealant no longer sticks.
• Make sure the bottom edge is sealed so rainwater stays inside the door drain path.

Step 14: Reinstall the Door Panel

• Reconnect the inside handle cable using needle-nose pliers.
• Reconnect all door panel electrical connectors by hand until each clicks.
• Hang the upper edge of the panel over the window ledge.
• Align the clips and press around the edges by hand until each clip snaps in.
• Replace broken rear door trim panel clips as needed.

Step 15: Reinstall Screws and Switch Panel

• Use a Phillips #2 screwdriver or Torx T20 screwdriver to reinstall the door panel screws.
• Do not overtighten trim screws; snug is enough.
• Plug in the rear window switch connector by hand.
• Press the switch panel down until it snaps flush.

Step 16: Reconnect the Battery

• Use a 10mm socket and ratchet handle to reconnect the negative battery cable.
• Tighten the terminal securely; do not overtighten.
• Check that the cable cannot twist by hand.

---

✅ After Repair

• ✅ Test lock and unlock from the key fob, driver master switch, and rear door switch.
• ✅ Open the rear door from both inside and outside handles.
• ✅ Close the door gently the first time and confirm it latches cleanly.
• ✅ Verify the window switch works after the door panel is reinstalled.
• ✅ If the auto-up window feature acts odd after battery disconnect, hold the window switch down until fully open, then hold it up until fully closed and keep holding for 2 seconds.
• ✅ Check after the next rain or wash for damp carpet near that rear door.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $90-$250 (parts only)

You Save: $260-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.2-2.0 hours.

---
