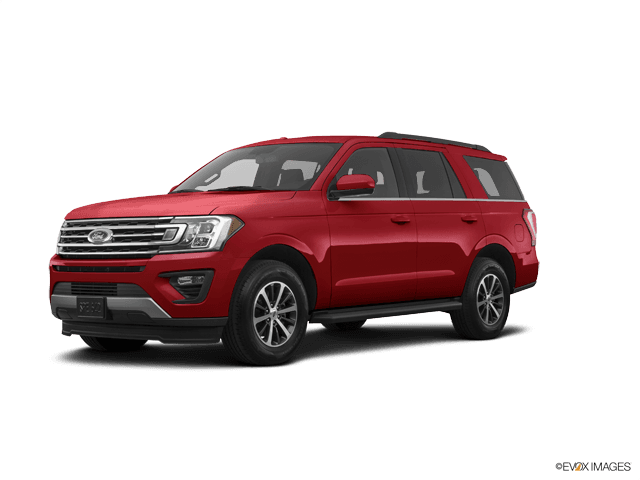

🔧 Expedition - Rear Door Lock Actuator Replacement

This repair replaces the failed rear door lock actuator inside the rear door latch assembly. On your Expedition, the actuator is integrated with the rear door latch, so the latch/actuator assembly is typically replaced as one unit.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before unplugging door electrical connectors.
• ⚠️ The rear door has side-impact wiring and multiple connectors; do not pull the trim panel away aggressively.
• ⚠️ Keep fingers clear of the latch while testing. The latch can clamp quickly.
• ⚠️ Support the door trim panel while removing it so clips and wiring are not damaged.
• ⚠️ Work with the window fully raised to keep the glass out of your work area.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 7mm socket
• 8mm socket
• Ratchet
• Socket extension 6-inch
• Torx T27 socket
• Torx T30 socket
• Trim panel removal tool
• Small flat-blade screwdriver
• Pick tool
• Needle-nose pliers
• Torque wrench inch-pound
• Painter’s tape
• Shop towel
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear door latch and lock actuator assembly - Qty: 1
• Rear door trim panel clips - Qty: 4-8
• Butyl sealing tape - Qty: 1 roll

---

📋 Before You Begin

• 🅿️ Park your Expedition on level ground and set the parking brake.
• 🔼 Raise the rear door window fully before starting.
• 🔑 Remove the key from the vehicle and keep the fob away from the door while working.
• 🔋 Use a 10mm socket to disconnect the negative battery cable. Wait at least 2 minutes before unplugging door connectors.
• 🧰 A trim panel removal tool is a flat plastic pry tool used to pop clips loose without scratching the door panel.
• 🧲 A pick tool is a small hooked tool used to release clips and cable ends in tight spaces.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove Small Trim Covers

• Use a small flat-blade screwdriver wrapped with painter’s tape to remove the small screw covers in the rear door pull handle and behind the inside door handle.
• Use gentle pressure so the plastic covers do not crack.
• Tip: Tape protects the trim.

Step 2: Remove Door Panel Screws

• Use a 7mm socket and ratchet to remove the exposed door trim screws.
• Use an 8mm socket if your lower door panel fasteners are the larger style.
• Place all screws on a shop towel in removal order.

Step 3: Release the Door Trim Panel

• Use a trim panel removal tool at the lower rear edge of the door panel.
• Pry outward to release the first clip, then work around the bottom and sides.
• Once the clips are released, lift the panel straight upward off the window ledge.
• Do not pull the panel far away yet because electrical connectors and cables are still attached.

Step 4: Disconnect Door Panel Wiring and Handle Cable

• Use a small flat-blade screwdriver to press the locking tabs on the electrical connectors.
• Unplug the window switch, lock switch, courtesy light, and speaker connector if attached to the trim panel.
• Use a pick tool to release the inside door handle cable retainer.
• Slide the cable end out of the handle lever.
• Set the trim panel somewhere safe with the finished side facing up.

Step 5: Peel Back the Water Shield

• Use your hands and a trim panel removal tool to gently peel back the foam/plastic water shield from the rear latch area.
• Do not tear it. This shield keeps rainwater out of the cabin.
• If the butyl adhesive stretches, use a shop towel to keep it from sticking to the trim.

Step 6: Disconnect the Latch Electrical Connector

• Look inside the rear edge of the door for the latch/actuator connector.
• Use a small flat-blade screwdriver to unlock the connector tab.
• Pull the connector straight off the latch assembly.

Step 7: Disconnect Lock Rods and Cables

• Use needle-nose pliers or a pick tool to rotate the plastic retaining clips off the latch rods.
• Lift the rods out of the latch levers.
• Use a pick tool to release any cable retainers, then unhook the cable ends from the latch.
• Take a quick photo before removing anything if you want an easy reference for reassembly.
• Tip: Photos prevent cable mix-ups.

Step 8: Remove the Rear Door Latch Fasteners

• Open the rear door fully.
• Use a Torx T30 socket and ratchet to remove the latch screws from the rear edge of the door.
• Support the latch with one hand inside the door as the last screw comes out.

Step 9: Remove the Latch and Actuator Assembly

• Guide the latch/actuator assembly out through the access opening in the inner door shell.
• Use a shop towel over sharp door edges to protect your hands.
• Compare the old latch to the new latch before installation.

Step 10: Install the New Latch and Actuator Assembly

• Position the new latch/actuator assembly inside the rear door.
• Align it with the screw holes at the rear edge of the door.
• Start the latch screws by hand first to avoid cross-threading.
• Use a Torx T30 socket and torque wrench to tighten the latch screws to Torque to 10 Nm (89 in-lbs).

Step 11: Reconnect Rods, Cables, and Wiring

• Use needle-nose pliers to insert the lock rods into the correct latch levers.
• Rotate each plastic retaining clip closed until it snaps into place.
• Hook the cable ends into the latch levers and snap the cable housings into their brackets.
• Plug in the latch electrical connector until it clicks.

Step 12: Test the Latch Before Reinstalling the Panel

• Use a 10mm socket to temporarily reconnect the negative battery cable.
• Use the key fob or door lock switch to lock and unlock the rear door.
• Use a screwdriver shaft to simulate the door striker by clicking the latch closed.
• Pull the inside and outside handles to confirm the latch releases correctly.
• Use a 10mm socket to disconnect the negative battery cable again before reconnecting trim panel wiring.
• Tip: Test before closing the door.

Step 13: Reinstall the Water Shield

• Press the water shield back onto the door using your hands.
• Use butyl sealing tape where the original adhesive no longer sticks.
• Make sure there are no gaps along the lower edge.

Step 14: Reinstall the Door Trim Panel

• Reconnect the inside handle cable by hooking the cable end into the handle lever and snapping the retainer closed.
• Reconnect all electrical connectors by hand until they click.
• Hang the door panel over the upper window ledge.
• Align the clips with the holes in the door.
• Press around the edges by hand to snap the clips into place.

Step 15: Install Door Panel Screws and Covers

• Use a 7mm socket and ratchet to reinstall the door panel screws.
• Use an 8mm socket if your lower fasteners use the larger size.
• Tighten trim screws snug only; do not overtighten plastic trim.
• Use your fingers to snap the small trim covers back into place.

Step 16: Reconnect the Battery

• Use a 10mm socket to reconnect the negative battery cable.
• Tighten the battery terminal nut to Torque to 5 Nm (44 in-lbs).

---

✅ After Repair

• ✅ Lock and unlock the rear door using the key fob, driver switch, and rear door switch.
• ✅ Open the door using both the inside and outside handles.
• ✅ Confirm the child safety lock works if equipped.
• ✅ Confirm the door-ajar warning turns off when the door is closed.
• ✅ Reset the auto-up window if needed: hold the window switch up for 2 seconds after the glass fully closes.
• ✅ Drive slowly over a small bump and listen for rattles from loose clips.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $120-$300 (parts only)

You Save: $230-$350 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.8 hours.

---
