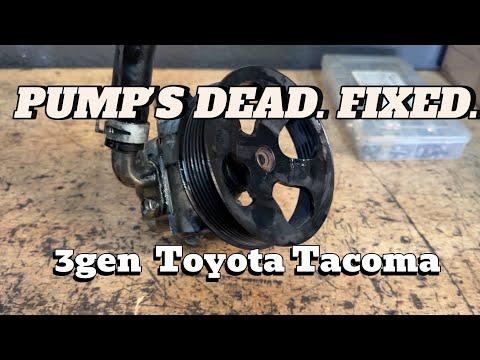

🔧 Tacoma - Power Steering Pump Replacement

This repair replaces the hydraulic power steering pump on your Tacoma. The pump supplies pressurized power steering fluid so the steering wheel turns easily, especially at low speed.

Difficulty Level: Intermediate | Estimated Time: 2.5-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Work only on a cool engine. Hot exhaust parts and fluid can burn you.
• ⚠️ Power steering fluid is slippery and flammable. Wipe spills immediately.
• ⚠️ Do not run the pump dry. Running it without fluid can ruin the new pump quickly.
• ⚠️ Disconnect the negative battery cable before working near the drive belt and pulley area.
• ⚠️ Support the front of your Tacoma securely with jack stands if you raise it. Never rely on a floor jack alone.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• 17mm socket
• 3/8-inch ratchet
• 3/8-inch extension 6-inch
• 14mm wrench
• 17mm flare nut wrench
• Serpentine belt tool 14mm adapter
• Power steering pulley puller and installer kit (specialty)
• Torque wrench 10-80 ft-lb
• Fluid drain pan 2-quart minimum
• Hose clamp pliers
• Flat blade screwdriver 6-inch
• Line cap and plug set (specialty)
• Floor jack 2-ton minimum
• Jack stands 2-ton minimum
• Wheel chocks
• Fender cover
• Nitrile gloves
• Safety glasses
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Power steering pump - Qty: 1
• Power steering pressure line sealing washers - Qty: 2
• Power steering fluid Dexron II/III ATF equivalent - Qty: 2 quarts
• Power steering return hose clamp - Qty: 1
• Serpentine drive belt - Qty: 1

---

📋 Before You Begin

• 🅿️ Park your Tacoma on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• 🧊 Let the engine cool fully before touching the belt, pulley, or fluid lines.
• 🔋 Use a 10mm socket to disconnect the negative battery cable and move it aside so it cannot spring back.
• 🛞 Raise the front wheels with a floor jack and support your Tacoma on jack stands. This makes bleeding the steering system easier.
• 📌 A flare nut wrench grips more sides of a line fitting than a normal wrench, helping prevent rounded fittings.
• 📌 A pulley puller/installer removes and installs the pressed-on pump pulley without bending it.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove Engine Splash Access If Needed

• Use a 10mm socket to remove any lower splash shield fasteners blocking access to the front of the engine.
• Use a flat blade screwdriver 6-inch to gently release any plastic clips.
• Set the fasteners in a small tray so they do not get lost.

Step 2: Remove the Serpentine Drive Belt

• Take a photo of the belt routing before removal.
• Use a serpentine belt tool 14mm adapter on the belt tensioner.
• Rotate the tensioner to release belt tension, then slide the belt off the power steering pump pulley.
• Slowly release the tensioner. Do not let it snap back.
• If the belt is cracked, glazed, or oil-soaked, replace it now.
• Photo first, belt second.

Step 3: Drain the Power Steering Reservoir

• Place a fluid drain pan 2-quart minimum under the power steering pump area.
• Use hose clamp pliers to slide the return hose clamp back from the pump or reservoir fitting.
• Use a flat blade screwdriver 6-inch to gently loosen the hose if it is stuck.
• Lower the hose into the drain pan and let the old fluid drain.
• Use line caps and plugs to cap open hoses and fittings so dirt cannot enter.

Step 4: Disconnect the Pressure Line

• Use shop towels around the pressure fitting to catch fluid.
• Use a 17mm flare nut wrench to loosen the high-pressure line fitting at the pump.
• Remove the fitting carefully and discard the old sealing washers if used on the fitting.
• Cap the open line using the line cap and plug set.
• Do not bend or twist the metal pressure line.

Step 5: Remove the Pump Pulley

• Use the power steering pulley puller and installer kit to remove the pulley from the pump shaft.
• Follow the tool’s puller setup exactly so the tool grabs the pulley hub, not the outer rim.
• Turn the puller screw slowly with the correct wrench from the kit until the pulley slides off.
• Inspect the pulley. Replace it if cracked, bent, or grooved.
• Never pry on the pulley.

Step 6: Unbolt the Power Steering Pump

• Use a 12mm socket and 14mm socket to remove the power steering pump mounting bolts.
• Use a 3/8-inch ratchet and 3/8-inch extension 6-inch where space is tight.
• Support the pump with one hand while removing the last bolt.
• Lift the pump out of the engine bay carefully so fluid does not spill on the belt path.

Step 7: Transfer Brackets or Fittings

• Compare the old and new pump side by side before installing.
• Use a 12mm socket or 14mm socket to transfer any brackets from the old pump to the new pump.
• If the new pump does not include a reservoir or fitting, transfer them using the matching socket or wrench.
• Install new sealing washers on the pressure line fitting if your replacement pump uses banjo-style sealing washers.
• Tighten transferred bracket bolts snugly unless the pump manufacturer provides a specific torque.

Step 8: Install the New Pump

• Position the new power steering pump onto the engine bracket.
• Start all mounting bolts by hand first to avoid cross-threading.
• Use a 12mm socket and 14mm socket to tighten the pump mounting bolts evenly.
• Use a torque wrench 10-80 ft-lb to tighten pump mounting bolts to Torque to 39 Nm (29 ft-lbs).

Step 9: Reinstall the Pump Pulley

• Use the power steering pulley puller and installer kit in installer mode.
• Press the pulley onto the pump shaft slowly until it aligns with the other belt pulleys.
• Use a straight visual line across the pulleys to check alignment.
• Do not hammer the pulley onto the shaft.
• Slow pressure protects the pump bearing.

Step 10: Reconnect the Fluid Lines

• Remove the line caps and plugs from the pump and hoses.
• Use a 17mm flare nut wrench to reconnect the high-pressure line fitting.
• Use a torque wrench 10-80 ft-lb with the proper adapter if available and tighten the pressure fitting to Torque to 44 Nm (32 ft-lbs).
• Use hose clamp pliers to reinstall the return hose and clamp.
• Make sure the hose is fully seated past the raised bead on the fitting.

Step 11: Reinstall the Serpentine Belt

• Route the belt using the photo you took earlier.
• Use the serpentine belt tool 14mm adapter to rotate the tensioner.
• Slide the belt over the power steering pulley last, then slowly release the tensioner.
• Check that the belt ribs sit fully inside every pulley groove.

Step 12: Fill the Power Steering System

• Use power steering fluid Dexron II/III ATF equivalent only.
• Fill the power steering reservoir to the COLD mark.
• Leave the reservoir cap loose for the first bleeding step.
• Wipe spills with shop towels.

Step 13: Bleed Air From the System

• Keep the front wheels raised on jack stands.
• With the engine OFF, turn the steering wheel slowly from full left to full right 15-20 times.
• Use safety glasses and check the fluid level often. Add fluid as needed.
• Do not hold the steering wheel hard against the stop.
• Install the reservoir cap.

Step 14: Start and Final-Bleed the System

• Reconnect the negative battery cable using a 10mm socket.
• Start the engine and let it idle.
• Turn the steering wheel slowly left and right several times.
• Watch the reservoir. Foamy fluid means air is still in the system.
• Shut the engine off, wait 2 minutes, then recheck fluid level.
• Repeat until the fluid is clear and steering is quiet.

Step 15: Reinstall Splash Shield and Lower Vehicle

• Use a 10mm socket to reinstall the lower splash shield fasteners.
• Use the floor jack 2-ton minimum to lift slightly off the jack stands.
• Remove the jack stands and lower your Tacoma slowly.
• Remove the wheel chocks after the vehicle is fully on the ground.

---

✅ After Repair

• ✅ Check for leaks at the pressure fitting, return hose, and pump body while the engine idles.
• ✅ Turn the steering wheel lock-to-lock slowly and listen for whining or groaning.
• ✅ Recheck the fluid level after a short drive and top off to the correct mark.
• ✅ Inspect the belt after the test drive to confirm it stayed centered on the pulley.
• ✅ If the steering remains noisy, let the vehicle sit 30 minutes and repeat the bleeding procedure.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,050 (parts + labor)

DIY Cost: $220-$480 (parts only)

You Save: $430-$570 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.0-3.0 hours.

---
