🔧 CX-5 - Oxygen Sensor Replacement

Replacing an oxygen sensor on your CX-5 means removing the faulty exhaust sensor and installing a new one so the engine computer can accurately adjust fuel mixture. On the turbocharged 2.5L engine, oxygen sensors thread into the exhaust system and can be tight from heat cycles, so patience and the correct sensor socket are important.

Difficulty Level: Beginner to Intermediate | Estimated Time: 1-2 hours

Assumption: This guide covers replacing either the upstream air/fuel ratio sensor before the catalytic converter or the downstream oxygen sensor after the catalytic converter.

---

⚠️ Safety & Precautions

• ⚠️ Let the exhaust cool completely before touching the sensor; exhaust parts can cause severe burns.
• ⚠️ Work on a level surface and support your CX-5 with jack stands if lifting it. Never rely on a floor jack alone.
• ⚠️ Disconnect the negative battery cable before unplugging the sensor to reduce the chance of electrical damage.
• ⚠️ Do not twist or stretch the sensor wiring harness. The wires are delicate.
• ⚠️ Use only oxygen-sensor-safe anti-seize if the new sensor does not already have compound on the threads.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 3/8-inch drive ratchet
• 3/8-inch drive extension set
• 22mm oxygen sensor socket (specialty)
• 22mm wrench
• 10mm socket
• Torque wrench 10-80 Nm range
• Flathead screwdriver
• Trim clip removal tool
• Floor jack rated 3-ton minimum
• Jack stands rated 3-ton minimum
• Wheel chocks
• Penetrating oil
• Mechanic gloves
• Safety glasses
• OBD2 scan tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Upstream air/fuel ratio sensor - Qty: 1
• Downstream oxygen sensor - Qty: 1
• Oxygen-sensor-safe anti-seize compound - Qty: 1
• Replacement underbody shield clips - Qty: As needed

---

📋 Before You Begin

• Park your CX-5 on level ground and set the parking brake.
• Place wheel chocks behind the rear wheels if lifting the front of the vehicle.
• Let the engine and exhaust cool for at least 1 hour.
• Use a 10mm socket to disconnect the negative battery cable. Move the cable aside so it cannot spring back to the battery post.
• Use an OBD2 scan tool to read the trouble code before replacing the sensor. “Bank 1 Sensor 1” is the upstream sensor before the catalytic converter. “Bank 1 Sensor 2” is the downstream sensor after the catalytic converter.
• An oxygen sensor socket is a deep 22mm socket with a slot cut in the side so the sensor wire can pass through it.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the Correct Sensor

• Use the OBD2 scan tool to identify which sensor code is stored.

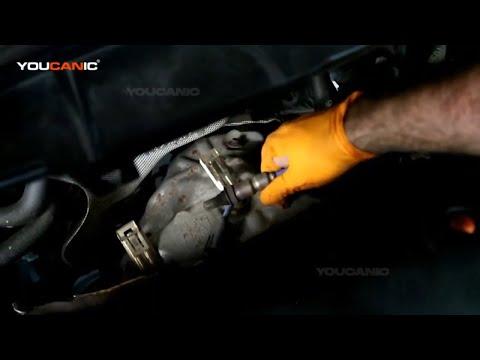

• For Bank 1 Sensor 1, locate the sensor threaded into the exhaust near the turbo/downpipe area before the catalytic converter.
• For Bank 1 Sensor 2, locate the sensor threaded into the exhaust after the catalytic converter, usually accessed from underneath.
• Use a flashlight if needed and trace the sensor wire to its electrical connector.
• Match the code before removing parts.

Step 2: Raise and Secure the Vehicle if Needed

• Use the floor jack rated 3-ton minimum at the front center jacking point if underside access is needed.
• Place jack stands rated 3-ton minimum under the proper front support points.
• Gently lower your CX-5 onto the jack stands.
• Keep the floor jack lightly touching the jacking point as backup, but do not use it as the main support.

Step 3: Remove the Underbody Shield if It Blocks Access

• Use a 10mm socket to remove the underbody shield bolts.
• Use a trim clip removal tool to remove plastic clips without breaking them.
• Use a flathead screwdriver only if a clip needs gentle help lifting.
• Set the shield and fasteners aside in order.
• Reinstallation torque for small underbody shield bolts is typically Torque to 7-9 Nm (62-80 in-lbs).

Step 4: Unplug the Oxygen Sensor Connector

• Use your fingers to press the connector lock tab and unplug the sensor harness.
• If the connector is stuck, use a flathead screwdriver to gently lift the lock tab while pulling the connector apart.
• Do not pull on the wires. Pull only on the plastic connector body.
• Note the original wire routing and clip locations before removal.

Step 5: Loosen the Old Sensor

• Spray penetrating oil on the sensor threads where it enters the exhaust pipe.
• Wait 5-10 minutes so the oil can work into the threads.
• Slide the 22mm oxygen sensor socket over the wire and onto the sensor hex.
• Use the 3/8-inch drive ratchet and 3/8-inch drive extension to turn the sensor counterclockwise.
• If there is not enough room for the socket, use a 22mm wrench instead.
• Slow pressure works better than jerking.

Step 6: Remove the Old Sensor

• Once loose, turn the sensor counterclockwise by hand until it comes out.
• Use mechanic gloves because the exhaust threads may be sharp or dirty.
• Compare the old sensor to the new sensor. The connector shape, wire length, and threaded tip should match.

Step 7: Prepare the New Sensor

• Check whether the new sensor already has anti-seize on the threads. It usually appears as a silver or gray coating.
• If it does not, apply a tiny amount of oxygen-sensor-safe anti-seize compound only to the threads.
• Do not get anti-seize on the sensor tip. The tip is the measuring end that sits inside the exhaust stream.

Step 8: Install the New Sensor

• Thread the new sensor into the exhaust by hand first to avoid cross-threading.
• Cross-threading means the threads start crooked and can damage the exhaust bung.
• Once hand-tight, use the 22mm oxygen sensor socket and torque wrench to tighten it.
• For Mazda oxygen sensors, tighten to Torque to 40-50 Nm (30-37 ft-lbs) unless the sensor manufacturer specifies otherwise.
• If using a 22mm wrench where a torque wrench will not fit, tighten snugly without over-forcing it.

Step 9: Reconnect and Route the Wiring

• Route the sensor wire exactly like the original wiring path.
• Clip the harness back into its brackets using your fingers.
• Plug the connector in until it clicks.
• Keep the wire away from the exhaust pipe, turbocharger, driveshaft, and moving suspension parts.

Step 10: Reinstall the Underbody Shield

• Position the shield back in place by hand.
• Install plastic clips using your fingers or trim clip removal tool.
• Use a 10mm socket to install the shield bolts.
• Tighten the small shield bolts to Torque to 7-9 Nm (62-80 in-lbs).

Step 11: Lower the Vehicle

• Use the floor jack rated 3-ton minimum to lift your CX-5 slightly off the jack stands.
• Remove the jack stands.
• Lower the vehicle slowly to the ground with the floor jack.
• Remove the wheel chocks.

Step 12: Reconnect the Battery

• Use a 10mm socket to reconnect the negative battery cable.
• Tighten the terminal nut snugly to Torque to 4-6 Nm (35-53 in-lbs).
• Do not overtighten the battery terminal, because it can crack or deform.

Step 13: Clear Codes and Verify Repair

• Use the OBD2 scan tool to clear the stored oxygen sensor code.
• Start the engine and let it idle.
• Check that there are no exhaust leaks around the new sensor.
• Watch for a check engine light returning during a short test drive.

---

✅ After Repair

• ✅ Drive your CX-5 for 10-20 minutes with a mix of city and steady-speed driving.
• ✅ Recheck for pending codes with the OBD2 scan tool after the test drive.
• ✅ If the check engine light returns, do not replace more parts immediately. The issue may be wiring, exhaust leak, fuel trim, or catalytic converter efficiency.
• ✅ If the battery was disconnected, the idle and transmission shift feel may relearn over the next few drives.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$650 (parts + labor)

DIY Cost: $80-$280 (parts only)

You Save: $170-$370 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.7-1.5 hours.

---
