🔧 Kicks - Oxygen Sensor Replacement

This repair replaces a faulty oxygen sensor, also called an O2 sensor. Your Kicks uses oxygen sensors in the exhaust to help the engine computer adjust fuel mixture and monitor catalytic converter performance.

For the 1.6L Kicks, there are two oxygen-related sensors: an upstream air/fuel ratio sensor before the catalytic converter and a downstream oxygen sensor after the catalytic converter. This guide covers replacing either one; match the replacement sensor to the sensor location shown by your diagnostic trouble code.

Difficulty Level: Beginner to Intermediate | Estimated Time: 1-2 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the exhaust cool completely before touching it. Exhaust parts can cause serious burns.
• ⚠️ Work on level ground with the parking brake firmly applied.
• ⚠️ Use jack stands if lifting your Kicks. Never rely on a floor jack alone.
• ⚠️ Disconnect the negative battery terminal before unplugging the sensor to reduce the chance of shorting a connector.
• ⚠️ Do not twist or pull on the new sensor wiring. The sensor can be damaged internally.
• ⚠️ Anti-seize compound is sometimes pre-applied to new sensors. Do not add extra unless the sensor instructions say to.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 3/8-inch ratchet
• 3/8-inch extension, 6-inch
• 22mm oxygen sensor socket (specialty)
• 22mm open-end wrench
• Torque wrench, 3/8-inch drive
• Flat trim clip remover
• Needle-nose pliers
• Floor jack, rated 2-ton minimum
• Jack stands, rated 2-ton minimum
• Wheel chocks
• OBD2 scan tool
• Penetrating oil
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Upstream air/fuel ratio sensor - Qty: 1, if replacing Sensor 1
• Downstream oxygen sensor - Qty: 1, if replacing Sensor 2
• Exhaust sensor anti-seize compound - Qty: 1, only if not pre-applied
• Replacement wire retaining clips - Qty: As needed

---

📋 Before You Begin

• Park your Kicks on level ground, shift to Park, and apply the parking brake.
• Place wheel chocks behind the rear wheels.
• Let the engine and exhaust cool for at least 1 hour.
• Use an OBD2 scan tool to identify the failed sensor:
  • Bank 1 Sensor 1 means the upstream air/fuel ratio sensor before the catalytic converter.
  • Bank 1 Sensor 2 means the downstream oxygen sensor after the catalytic converter.
• Disconnect the negative battery cable using a 10mm socket. Set the cable aside so it cannot spring back to the battery post.
• If you need more room under the vehicle, lift the front of your Kicks with a floor jack, rated 2-ton minimum, then support it with jack stands, rated 2-ton minimum.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the Correct Oxygen Sensor

• Put on safety glasses and nitrile gloves.
• Use the OBD2 scan tool code to choose the correct sensor location.
• For Bank 1 Sensor 1, look at the exhaust manifold/catalyst area near the engine. This is the upstream sensor.

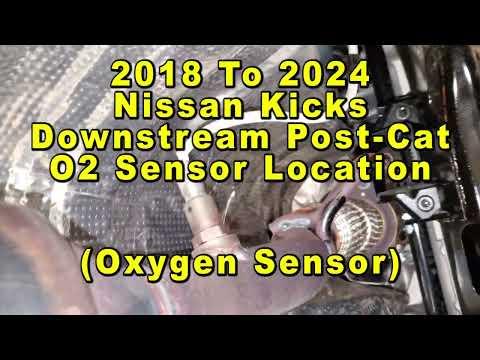

• For Bank 1 Sensor 2, look farther down the exhaust pipe after the catalytic converter. This is the downstream sensor.
• An oxygen sensor socket is a 22mm socket with a slot in the side so the sensor wire can pass through it.
• Tip: Replace only the sensor named by the code.

Step 2: Access the Sensor Connector

• Use a flat trim clip remover to gently release any plastic retainers or splash shield clips blocking access.
• Use needle-nose pliers to release wire retaining clips if needed.
• Follow the sensor wire from the exhaust sensor body to its electrical connector.
• Press the connector lock tab by hand and unplug the sensor connector.
• Do not pull on the wire. Pull on the connector body only.

Step 3: Free the Sensor Wire Harness

• Use needle-nose pliers to open the metal or plastic wire retainers.
• Note the exact wire routing before removal.
• Move the harness away from the exhaust so it does not twist while loosening the sensor.
• Tip: Take a phone photo before removal.

Step 4: Loosen the Old Sensor

• Spray a small amount of penetrating oil on the sensor threads where the sensor enters the exhaust.
• Wait 5-10 minutes for the oil to soak in.
• Slide the 22mm oxygen sensor socket over the sensor with the wire passing through the slot.
• Use a 3/8-inch ratchet and 3/8-inch extension, 6-inch to turn the sensor counterclockwise.
• If access is tight, use a 22mm open-end wrench instead.
• Break the sensor loose slowly. Avoid jerking the tool because the exhaust bung threads can be damaged.

Step 5: Remove the Old Sensor

• Once loose, spin the sensor out by hand if possible.
• If it is still tight, continue using the 22mm oxygen sensor socket until it can be removed.
• Compare the old sensor to the new one. The connector shape, wire length, and thread size should match.

Step 6: Prepare the New Sensor

• Check the new sensor threads.
• If the threads already have gray or silver coating, that is pre-applied anti-seize compound.
• If no coating is present and the sensor instructions allow it, apply a very small amount of exhaust sensor anti-seize compound to the threads only.
• Keep anti-seize away from the sensor tip. The sensor tip is the small end that sits inside the exhaust stream.

Step 7: Install the New Sensor

• Start threading the new sensor into the exhaust by hand.
• Turn it clockwise several full turns by hand to prevent cross-threading.
• Use the 22mm oxygen sensor socket and torque wrench, 3/8-inch drive to tighten it.
• Torque to 40 Nm (30 ft-lbs).
• If your replacement sensor packaging gives a different torque spec, use the sensor manufacturer’s value.

Step 8: Route and Connect the Wiring

• Route the new sensor wire exactly like the original wire.
• Use needle-nose pliers to secure the wire into its retaining clips.
• Keep the wire away from the exhaust pipe, steering components, and moving engine parts.
• Push the electrical connector together until it clicks.
• Use a flat trim clip remover to reinstall any splash shield clips removed earlier.

Step 9: Reconnect the Battery

• Place the negative battery cable back on the battery post.
• Use a 10mm socket and 3/8-inch ratchet to tighten the terminal nut snugly.
• Do not overtighten the battery terminal.

Step 10: Lower the Vehicle

• If raised, use the floor jack, rated 2-ton minimum to lift your Kicks slightly off the jack stands.
• Remove the jack stands, rated 2-ton minimum.
• Lower the vehicle slowly with the floor jack.
• Remove the wheel chocks.

Step 11: Clear the Code and Check Operation

• Connect the OBD2 scan tool to the diagnostic port under the driver side dash.
• Turn the ignition on without starting the engine.
• Use the scan tool to clear stored oxygen sensor trouble codes.
• Start the engine and let it idle.
• Listen for exhaust leaks near the sensor. A leak may sound like ticking or puffing.

---

✅ After Repair

• Drive your Kicks for 10-20 minutes with mixed city and steady-speed driving.
• Recheck for a check engine light after the test drive.
• Use the OBD2 scan tool to confirm no oxygen sensor codes return.
• If a code returns immediately, inspect the connector, wiring route, and sensor location.
• The engine computer may need several drive cycles to complete emissions readiness monitors.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$550 (parts + labor)

DIY Cost: $70-$230 (parts only)

You Save: $180-$320 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.5 hours.

---
