🔧 Traverse - Oxygen Sensor Replacement

Replacing an oxygen sensor on your Traverse means unplugging the old exhaust sensor, removing it from the exhaust pipe or manifold, and installing a new matching sensor. The oxygen sensors help the engine computer adjust fuel mixture and monitor catalytic converter performance.

Assumption: This guide covers replacing one oxygen sensor; your Traverse has multiple oxygen sensors, so match the new sensor to the exact failed sensor location from the trouble code.

Difficulty Level: Beginner to Intermediate | Estimated Time: 1-2 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the exhaust cool completely before touching it; oxygen sensors thread into very hot exhaust parts.
• ⚠️ Support your Traverse with jack stands if you raise it; never work under a vehicle supported only by a jack.
• ⚠️ Disconnect the negative battery cable before unplugging sensor wiring near the engine or exhaust.
• ⚠️ Do not twist the new sensor wiring while tightening it; damaged wiring can ruin the new sensor.
• ⚠️ Use only oxygen-sensor-safe anti-seize if the new sensor threads are not already coated.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 7/8-inch oxygen sensor socket (specialty)
• 3/8-inch drive ratchet
• 3/8-inch drive 6-inch extension
• 3/8-inch drive torque wrench
• 10mm socket
• Flat-head screwdriver
• Needle-nose pliers
• OBD-II scan tool
• Penetrating oil
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Oxygen sensor - Qty: 1
• Oxygen-sensor-safe anti-seize compound - Qty: 1
• Replacement wiring clip or retainer - Qty: As needed

---

📋 Before You Begin

• Park your Traverse on level ground and set the parking brake.
• Use the OBD-II scan tool to read the fault code and identify which sensor is failed.
• Bank 1 is the side of the V6 engine that contains cylinder 1; on the Traverse 3.6L, sensor access may be from above or below depending on location.
• Sensor 1 means upstream sensor before the catalytic converter; Sensor 2 means downstream sensor after the catalytic converter.
• Let the exhaust cool for at least 1 hour before starting.
• Disconnect the negative battery cable using a 10mm socket.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Read the Code and Identify the Sensor

• Plug the OBD-II scan tool into the diagnostic port under the driver-side dash.
• Turn the ignition on without starting the engine.
• Read the stored code and note the sensor location, such as Bank 1 Sensor 1, Bank 1 Sensor 2, Bank 2 Sensor 1, or Bank 2 Sensor 2.
• Do not replace a random sensor; oxygen sensors are location-specific.
• Write the code down first.

Step 2: Prepare the Vehicle Safely

• Place wheel chocks behind the rear wheels if lifting the front.
• If the sensor is accessed from underneath, raise the front of your Traverse with the floor jack.
• Support the vehicle with jack stands placed at the proper front support points.
• Put on safety glasses and mechanic gloves.

Step 3: Disconnect the Battery

• Use a 10mm socket to loosen the negative battery terminal clamp.
• Move the cable aside so it cannot spring back onto the battery post.
• This helps protect the wiring and engine computer while the sensor is unplugged.

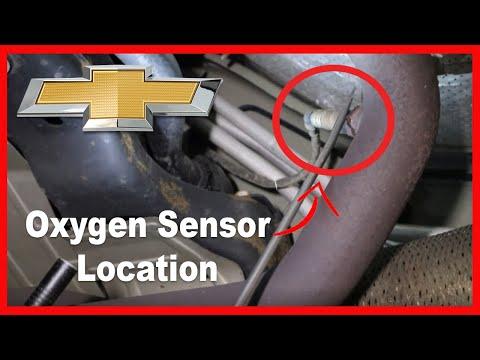

Step 4: Locate the Oxygen Sensor

• Use the fault-code location from the OBD-II scan tool to find the correct sensor.

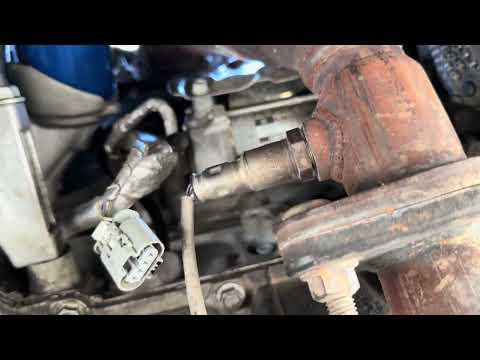

• Look for a small threaded sensor screwed into the exhaust with a wire harness attached.
• Upstream sensors are closer to the engine and catalytic converter inlet.
• Downstream sensors are farther back, after the catalytic converter.

Step 5: Unplug the Sensor Connector

• Use your fingers or a flat-head screwdriver to gently release the connector lock.
• If the harness is clipped to a bracket, use needle-nose pliers to release the retainer.
• Do not pull on the wires; pull on the connector body only.
• Take a photo before unplugging.

Step 6: Loosen the Old Oxygen Sensor

• Spray penetrating oil on the sensor threads where it enters the exhaust.
• Let the penetrating oil soak for 5-10 minutes.
• Slide the 7/8-inch oxygen sensor socket over the sensor wire and onto the sensor hex.
• Use the 3/8-inch drive ratchet and 3/8-inch drive 6-inch extension if extra reach is needed.
• Turn counterclockwise to loosen and remove the sensor.

Step 7: Compare the Old and New Sensor

• Compare the old and new oxygen sensor before installation.
• Make sure the connector shape, wire length, and threaded tip match.
• If the new sensor threads are already coated, do not add more anti-seize.
• If the threads are bare, apply a tiny amount of oxygen-sensor-safe anti-seize compound only to the threads.
• Keep anti-seize away from the sensor tip.

Step 8: Install the New Oxygen Sensor

• Start threading the new oxygen sensor by hand to avoid cross-threading.
• Once finger-tight, use the 7/8-inch oxygen sensor socket and 3/8-inch drive torque wrench.
• Tighten the sensor to Torque to 42 Nm (31 ft-lbs).
• Route the wiring the same way it was originally routed.
• Keep the wire away from the exhaust pipe, steering components, and moving parts.

Step 9: Reconnect the Wiring

• Push the connector together by hand until it clicks.
• Use needle-nose pliers to reinstall any harness clips or retainers.
• If a clip broke, install a replacement wiring clip or retainer.
• Make sure the wire has a little slack and is not stretched tight.

Step 10: Reconnect the Battery and Lower the Vehicle

• Reconnect the negative battery cable.
• Use a 10mm socket to snug the terminal clamp securely.
• If raised, use the floor jack to lift your Traverse slightly off the jack stands.
• Remove the jack stands and lower the vehicle slowly.

Step 11: Clear the Code

• Use the OBD-II scan tool to clear the stored oxygen sensor code.
• Start the engine and let it idle.
• Check that the check engine light does not immediately return.

---

✅ After Repair

• Start your Traverse and listen for an exhaust leak near the repaired sensor.
• Take a 10-15 minute test drive with both city and steady cruising speeds.
• Recheck for trouble codes with the OBD-II scan tool.
• If the same code returns, inspect wiring, connector pins, exhaust leaks, and catalytic converter performance before replacing more parts.
• Some emissions monitors may need several drive cycles before showing “ready.”

---

💰 DIY vs Shop Cost

Shop Cost: $250-$550 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $190-$370 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.7-1.5 hours.

---
