🔧 Accord - Oxygen Sensor Replacement

Your Accord uses oxygen/air-fuel sensors in the exhaust to help the engine computer control fuel mixture and emissions. Replacing a failed sensor usually involves unplugging the sensor connector, removing the sensor from the exhaust, and installing the new one without damaging the wiring.

Difficulty Level: Intermediate | Estimated Time: 1-2 hours

Assumption: This procedure covers the upstream air-fuel ratio sensor and downstream oxygen sensor locations; replace only the failed sensor identified by diagnosis or trouble code.

---

⚠️ Safety & Precautions

• ⚠️ Exhaust parts get extremely hot. Let your Accord cool for at least 1 hour before touching the exhaust.
• ⚠️ Work on level ground and support the vehicle with jack stands. Never rely on a floor jack alone.
• ⚠️ Disconnect the negative battery cable before unplugging the sensor to reduce the chance of electrical damage.
• ⚠️ Do not twist or pull on the new sensor wiring. The wiring is delicate and can be damaged internally.
• ⚠️ If working under the car, wear safety glasses because rust and debris can fall into your eyes.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 3/8-inch drive ratchet
• 3/8-inch drive extension 6-inch
• 22mm oxygen sensor socket (specialty)
• 22mm wrench
• 10mm socket
• Torque wrench 10-80 Nm
• Trim clip removal tool
• Floor jack rated 2-ton minimum
• Jack stands rated 2-ton minimum
• Wheel chocks
• Penetrating oil spray
• Mechanic gloves
• Safety glasses
• OBD2 scan tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Upstream air-fuel ratio sensor - Qty: 1, if replacing Sensor 1
• Downstream oxygen sensor - Qty: 1, if replacing Sensor 2
• Exhaust-safe anti-seize compound - Qty: 1, only if not pre-applied to sensor threads
• Replacement splash shield clips - Qty: As needed

---

📋 Before You Begin

• Park your Accord on level ground, shift to Park, and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Let the engine and exhaust cool fully before starting.
• Use an OBD2 scan tool to confirm which sensor failed. “Sensor 1” is the upstream sensor before the catalytic converter. “Sensor 2” is the downstream sensor after the catalytic converter.
• Disconnect the negative battery cable using a 10mm socket.
• If replacing the downstream sensor, raise the front of the car with a floor jack and support it with jack stands.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm the Sensor Location

• Use the OBD2 scan tool to read the stored trouble code before removing anything.
• For codes pointing to Bank 1 Sensor 1, replace the upstream air-fuel ratio sensor near the engine side of the exhaust.

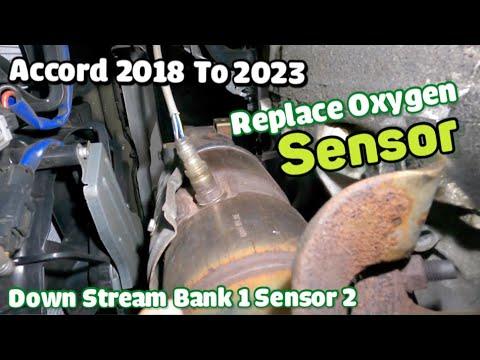

• For codes pointing to Bank 1 Sensor 2, replace the downstream oxygen sensor after the catalytic converter under the vehicle.
• Bank 1 means the only cylinder bank on your Accord’s inline-4 engine.
• Replace the coded sensor only.

Step 2: Disconnect the Battery

• Use a 10mm socket to loosen the negative battery terminal clamp.
• Lift the negative cable off the battery post and move it aside so it cannot spring back.
• This helps protect the engine computer and sensor circuit while unplugging the connector.

Step 3: Raise the Vehicle if Needed

• If replacing the downstream sensor, use a floor jack rated 2-ton minimum at the front center jacking point.
• Place jack stands rated 2-ton minimum under the front side support points.
• Gently lower the car onto the jack stands and lightly shake the vehicle to confirm it is stable.
• Keep the floor jack nearby as backup support, but do not use it as the only support.

Step 4: Remove Access Panels if Needed

• Use a trim clip removal tool to remove any plastic splash shield clips blocking access to the sensor or connector.
• Use a 10mm socket to remove any splash shield bolts if fitted.
• Set the clips and bolts aside in order so they go back in the same locations.

Step 5: Unplug the Oxygen Sensor Connector

• Follow the sensor wire from the exhaust sensor body to the electrical connector.
• Press the connector lock tab by hand and unplug the connector.
• If the connector is stubborn, use the trim clip removal tool gently to help release the lock tab.
• Do not pull on the wires. Pull only on the plastic connector body.
• Connector plastic can break easily.

Step 6: Loosen the Old Sensor

• Spray penetrating oil around the base of the sensor where it threads into the exhaust.
• Wait 5-10 minutes for the penetrating oil to soak in.
• Use a 22mm oxygen sensor socket with a 3/8-inch drive ratchet and 6-inch extension to loosen the sensor.
• An oxygen sensor socket has a slot for the wire so the socket can slide over the sensor without cutting the harness.
• If space is tight, use a 22mm wrench to break the sensor loose.

Step 7: Remove the Old Sensor

• Once loose, unscrew the sensor by hand while keeping the wiring from twisting around nearby parts.
• Compare the old sensor to the new sensor before installation.
• Make sure the connector shape, wire length, and thread size match.

Step 8: Prepare the New Sensor

• Check the new sensor threads for factory-applied anti-seize compound.
• If the threads are dry, apply a very small amount of exhaust-safe anti-seize compound to the threads only.
• Do not get anti-seize on the sensor tip. The tip is the sensing end and contamination can ruin it.
• Most quality sensors are pre-coated.

Step 9: Install the New Sensor

• Thread the new sensor into the exhaust by hand first.
• Hand-threading prevents cross-threading, which means damaging the threads by starting the sensor crooked.
• Use the 22mm oxygen sensor socket and torque wrench to tighten the sensor.
• Torque to 44 Nm (33 ft-lbs)
• Route the wiring the same way as the original so it stays away from the exhaust pipe and moving parts.

Step 10: Reconnect the Sensor Connector

• Push the sensor connector together by hand until the lock tab clicks.
• Use the trim clip removal tool to reinstall any wire retainers or harness clips.
• Make sure the wire has a little slack and is not stretched tight.

Step 11: Reinstall Shields and Lower the Vehicle

• Use a 10mm socket to reinstall any splash shield bolts removed earlier.
• Torque splash shield bolts to 9 Nm (80 in-lbs)
• Use the trim clip removal tool by hand to reinstall the plastic clips.
• If the vehicle was raised, use the floor jack to lift slightly, remove the jack stands, and lower the vehicle slowly.

Step 12: Reconnect the Battery

• Place the negative battery cable back on the battery post.
• Use a 10mm socket to tighten the terminal clamp.
• Torque to 5 Nm (44 in-lbs)

Step 13: Clear Codes and Check Operation

• Use the OBD2 scan tool to clear the diagnostic trouble codes.
• Start the engine and let it idle.
• Check around the sensor area for exhaust leaks, ticking sounds, or loose wiring.
• Take a short test drive and recheck for warning lights.

---

✅ After Repair

• Drive your Accord through several normal trips so the engine computer can complete emissions readiness checks.
• If the check engine light returns, use the OBD2 scan tool to read the new code before replacing more parts.
• Make sure no sensor wiring is touching the exhaust after the test drive.
• If the battery was disconnected, reset the clock, radio presets, and any auto window functions if needed.

---

💰 DIY vs Shop Cost

Shop Cost: $275-$650 (parts + labor)

DIY Cost: $80-$250 (parts only)

You Save: $195-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.7-1.5 hours.

---
