🔧 Fusion - Oxygen Sensor Replacement

Replacing an oxygen sensor on your Fusion means unplugging the old exhaust sensor, unscrewing it from the exhaust pipe or manifold, and installing a new matching sensor. The oxygen sensors help the engine computer adjust fuel mixture and monitor catalytic converter performance.

Difficulty Level: Beginner to Intermediate | Estimated Time: 1-2 hours

Assumption: This guide covers both upstream and downstream oxygen sensors because replacement steps are similar, but sensor location matters.

---

⚠️ Safety & Precautions

• ⚠️ Work only on a completely cool exhaust system; exhaust parts can burn skin badly.
• ⚠️ Park on level ground, shift to Park, and set the parking brake before lifting your Fusion.
• ⚠️ Support the vehicle with jack stands; never work under a car held only by a floor jack.
• ⚠️ Disconnect the negative battery cable before unplugging oxygen sensor wiring.
• ⚠️ Do not pull on the sensor wires; unplug the connector body instead.
• ⚠️ Avoid spraying penetrating oil directly into electrical connectors.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 7/8 inch oxygen sensor socket
• 3/8 inch drive ratchet
• 3/8 inch drive 6 inch extension
• 10mm socket
• Torque wrench 3/8 inch drive
• Flat-blade screwdriver
• Trim clip removal tool
• Penetrating oil spray
• Floor jack rated 2-ton minimum
• Jack stands rated 2-ton minimum
• Wheel chocks
• Nitrile gloves
• Safety glasses
• OBD-II scan tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Upstream oxygen sensor - Qty: 1
• Downstream oxygen sensor - Qty: 1
• Nickel anti-seize compound - Qty: 1

Note: Replace only the failed sensor unless you are doing preventive replacement. Your Fusion uses one upstream sensor before the catalytic converter and one downstream sensor after the catalytic converter.

---

📋 Before You Begin

• 🅿️ Park your Fusion on level ground and let the exhaust cool for at least 1 hour.
• 🧱 Place wheel chocks behind the rear wheels.
• 🔋 Use a 10mm socket to disconnect the negative battery cable.
• 🔍 Use an OBD-II scan tool to read the trouble code before removing anything. “Bank 1 Sensor 1” is the upstream sensor. “Bank 1 Sensor 2” is the downstream sensor.
• 🛠️ An oxygen sensor socket is a slotted socket that fits over the sensor wire while gripping the hex part of the sensor.
• 🛠️ A torque wrench tightens a part to a measured amount so it is not too loose or too tight.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and Support the Front

• Use the floor jack rated 2-ton minimum to lift the front of your Fusion at the proper front jacking point.
• Place jack stands rated 2-ton minimum under the front support points.
• Gently lower the vehicle onto the jack stands.
• Keep the floor jack lightly touching the lift point as extra backup.
• Shake gently to confirm stability.

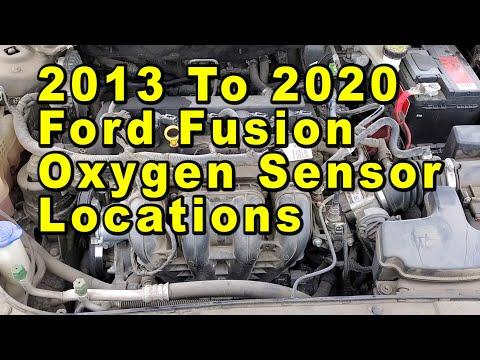

Step 2: Locate the Correct Oxygen Sensor

• Use safety glasses and a flashlight if needed.
• Find the exhaust manifold and catalytic converter at the front/lower engine area.
• The upstream oxygen sensor is installed before the catalytic converter.
• The downstream oxygen sensor is installed after the catalytic converter.
• Use the OBD-II scan tool code result to confirm which one you are replacing.

Step 3: Access the Sensor Wiring

• Use the trim clip removal tool to move any splash shield clips if access is blocked.
• Use the 10mm socket to remove any small splash shield bolts if needed.
• Use the flat-blade screwdriver to gently release wiring retainers from brackets.
• Do not pry on the wires themselves.

Step 4: Unplug the Oxygen Sensor

• Press the connector lock tab by hand.
• If the lock tab is tight, use the flat-blade screwdriver carefully to help release it.
• Pull the connector halves apart by the plastic bodies only.
• Do not yank the wire.

Step 5: Loosen the Old Sensor

• Spray a small amount of penetrating oil around the oxygen sensor threads.
• Let it soak for 5-10 minutes.
• Slide the 7/8 inch oxygen sensor socket over the sensor wire and onto the sensor hex.
• Use the 3/8 inch drive ratchet and 3/8 inch drive 6 inch extension to turn the sensor counterclockwise.
• If it feels stuck, apply steady pressure instead of jerking the ratchet.

Step 6: Remove the Old Sensor

• Once loose, keep using the 7/8 inch oxygen sensor socket until the sensor is free.
• Remove the sensor from the exhaust by hand when it spins easily.
• Compare the old sensor connector and wire length to the new sensor before installing.

Step 7: Prepare the New Sensor

• Check whether the new oxygen sensor already has anti-seize on the threads.
• If it does not, apply a very small amount of nickel anti-seize compound to the threads only.
• Keep anti-seize away from the sensor tip and connector.
• A tiny amount is enough.

Step 8: Install the New Sensor

• Thread the new oxygen sensor into the exhaust by hand first.
• Make at least 3 full turns by hand to avoid cross-threading.
• Use the 7/8 inch oxygen sensor socket with the torque wrench 3/8 inch drive to tighten it.
• Torque to 48 Nm (35 ft-lbs)

Step 9: Reconnect the Wiring

• Route the sensor wire the same way as the original.
• Use the flat-blade screwdriver only if needed to seat wiring retainers.
• Plug the connector together until it clicks.
• Make sure the wire is away from the exhaust pipe, axle, and moving parts.

Step 10: Reinstall Any Removed Shields

• Use the trim clip removal tool to reinstall any plastic clips.
• Use the 10mm socket to reinstall any splash shield bolts.
• Tighten small splash shield bolts snug only; do not overtighten plastic shields.

Step 11: Lower the Vehicle

• Use the floor jack rated 2-ton minimum to raise the front slightly off the jack stands.
• Remove the jack stands rated 2-ton minimum.
• Lower your Fusion slowly to the ground.
• Remove the wheel chocks after the vehicle is fully down.

Step 12: Reconnect the Battery

• Use the 10mm socket to reconnect the negative battery cable.
• Tighten the terminal clamp until secure.
• Do not overtighten the battery terminal.

---

✅ After Repair

• ✅ Start the engine and listen for an exhaust leak near the sensor.
• ✅ Use the OBD-II scan tool to clear the stored oxygen sensor fault code.
• ✅ Let the engine idle for a few minutes and confirm the check engine light stays off.
• ✅ Test drive your Fusion for 10-15 minutes with some steady cruising.
• ✅ Recheck that the sensor wire is not touching hot exhaust parts.
• ✅ Some emissions monitors may need a few drive cycles before they show “ready.”

---

💰 DIY vs Shop Cost

Shop Cost: $220-$450 per sensor (parts + labor)

DIY Cost: $55-$180 per sensor (parts only)

You Save: $165-$270 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.7-1.2 hours.

---
