🔧 Pilot - Oxygen Sensor Replacement

This repair replaces a faulty oxygen sensor, also called an O2 sensor. The O2 sensor measures oxygen in the exhaust so the engine computer can adjust fuel mixture and keep emissions under control.

Assumption: This guide covers replacement of a threaded exhaust oxygen/fuel-ratio sensor on your Pilot. Sensor location may be Bank 1 or Bank 2, upstream or downstream, depending on the trouble code.

Difficulty Level: Intermediate | Estimated Time: 1-2 hours

---

⚠️ Safety & Precautions

• ⚠️ Exhaust parts get extremely hot. Let your Pilot cool completely before touching the exhaust.
• ⚠️ Work on level ground and support the vehicle with jack stands. Never rely on a floor jack alone.
• ⚠️ Wear safety glasses. Rust and dirt can fall when working under the vehicle.
• ⚠️ Disconnect the negative battery cable before unplugging the sensor connector to reduce the chance of electrical damage.
• ⚠️ Do not twist the vehicle wiring harness. Turn the sensor, not the harness.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 7/8-inch oxygen sensor socket (specialty)
• 3/8-inch drive ratchet
• 3/8-inch drive 6-inch extension
• 10mm socket
• Torque wrench rated 10-80 Nm
• Flat-blade screwdriver
• Trim clip removal tool
• Floor jack rated 3-ton minimum
• Jack stands rated 3-ton minimum
• Wheel chocks
• Penetrating oil
• Mechanic gloves
• Safety glasses
• OBD2 scan tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Oxygen sensor or air/fuel ratio sensor - Qty: 1
• Exhaust sensor anti-seize compound - Qty: 1 small packet

---

📋 Before You Begin

• Park your Pilot on a flat, solid surface.
• Set the parking brake and place wheel chocks behind the rear wheels.
• Let the exhaust cool for at least 1 hour if the engine was recently running.
• Use an OBD2 scan tool to read the fault code before removal. The code tells you which sensor is bad.
• Common labels: Bank 1 is the cylinder bank that contains cylinder 1, and Sensor 1 is before the catalytic converter while Sensor 2 is after it.
• Disconnect the negative battery cable using a 10mm socket.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Identify the Correct Sensor

• Use the OBD2 scan tool to confirm the code and sensor position.
• Typical code meanings include:
  • P013x codes usually point to Bank 1 Sensor 1 or Bank 1 Sensor 2.
  • P015x codes usually point to Bank 2 Sensor 1 or Bank 2 Sensor 2.
• Sensor 1 is upstream, mounted before the catalytic converter. Sensor 2 is downstream, mounted after the catalytic converter.
• Replace the coded sensor only.

Step 2: Raise and Support the Vehicle

• Use the floor jack rated 3-ton minimum to lift the front of your Pilot at the approved front jacking point.
• Place jack stands rated 3-ton minimum under the approved support points.
• Gently lower the vehicle onto the jack stands.
• Shake the vehicle lightly by hand to confirm it is stable before going underneath.

Step 3: Remove Underbody Access Panels if Needed

• Use a trim clip removal tool to remove plastic push clips from the lower splash shield if it blocks access.
• Use a 10mm socket to remove any splash shield bolts.
• Set the clips and bolts aside in a cup or tray.
• Take a photo before removing panels.

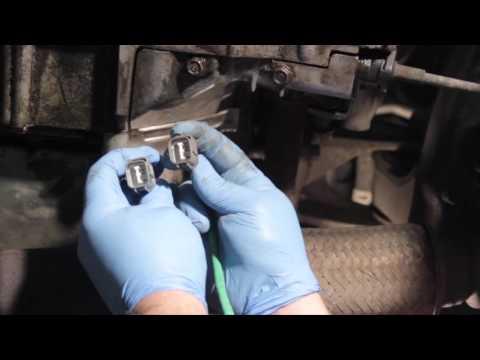

Step 4: Locate and Unplug the Sensor Connector

• Follow the oxygen sensor wire from the exhaust pipe up to its electrical connector.
• Use a flat-blade screwdriver to gently release any connector lock tab.
• Unplug the connector by pulling on the connector body, not the wires.
• If the harness is clipped to a bracket, use the trim clip removal tool to release the clip.

Step 5: Loosen the Old Sensor

• Spray penetrating oil where the sensor threads into the exhaust bung. The bung is the threaded metal fitting welded to the exhaust pipe.
• Wait 5-10 minutes for the penetrating oil to soak in.
• Slide the 7/8-inch oxygen sensor socket over the sensor wire and onto the sensor hex.
• Use the 3/8-inch drive ratchet and 3/8-inch drive 6-inch extension to turn the sensor counterclockwise.
• If it is very tight, apply steady pressure. Do not yank hard enough to damage the exhaust pipe.

Step 6: Remove the Old Sensor

• Once loose, continue turning the sensor counterclockwise by hand or with the 7/8-inch oxygen sensor socket.
• Remove the sensor from the exhaust.
• Compare the old sensor to the new part. The connector shape, wire length, and mounting threads should match.

Step 7: Prepare the New Sensor

• Check the new sensor threads. Many replacement sensors already have anti-seize applied.
• If the threads are bare, apply a tiny amount of exhaust sensor anti-seize compound only to the threads.
• Do not get anti-seize on the sensor tip. The tip is the sensing end that sits inside the exhaust stream.
• A little anti-seize goes a long way.

Step 8: Install the New Sensor

• Thread the new sensor into the exhaust by hand first.
• Turn it clockwise several full turns by hand to avoid cross-threading. Cross-threading means the threads are going in crooked and can damage the exhaust bung.
• Use the 7/8-inch oxygen sensor socket and torque wrench rated 10-80 Nm to tighten the sensor.
• Torque to 44 Nm (33 ft-lbs)

Step 9: Reconnect the Wiring

• Route the sensor wire the same way as the original.
• Use your hands to clip the harness back into its brackets.
• Plug the connector in until it clicks.
• Make sure the wire is not touching the exhaust pipe, heat shields, steering parts, or suspension parts.

Step 10: Reinstall Shields and Lower the Vehicle

• Use the trim clip removal tool to reinstall any plastic clips.
• Use the 10mm socket to reinstall splash shield bolts.
• Tighten splash shield bolts snug only. Do not overtighten plastic shield hardware.
• Use the floor jack rated 3-ton minimum to raise the vehicle slightly off the jack stands.
• Remove the jack stands rated 3-ton minimum.
• Lower your Pilot slowly to the ground.

Step 11: Reconnect Battery and Clear Codes

• Reconnect the negative battery cable using the 10mm socket.
• Torque to 5 Nm (44 in-lbs)
• Use the OBD2 scan tool to clear the stored trouble code.
• Start the engine and let it idle for a few minutes.

---

✅ After Repair

• Listen for exhaust leaks near the sensor. A ticking sound may mean the sensor is loose.
• Check that the Check Engine light stays off after clearing codes.
• Drive your Pilot through a normal warm-up cycle so the computer can recheck the sensor.
• If the same code returns, inspect for damaged wiring, exhaust leaks, or fuel/air mixture issues before replacing more parts.
• Some emissions readiness monitors may need several drive cycles before showing “ready” on an OBD2 scan tool.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$550 (parts + labor)

DIY Cost: $80-$250 (parts only)

You Save: $170-$300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.5 hours.

---
