🔧 Oxygen Sensor - Replacement

Assumption: this covers a single oxygen sensor on your Silverado, either upstream or downstream. The basic removal and installation process is the same, but the exact sensor location and access can vary by bank and position.

Difficulty Level: Beginner | Estimated Time: 1-2 hours

---

⚠️ Safety & Precautions

• The exhaust gets extremely hot. Let the truck cool completely before starting.
• Work on level ground with the parking brake set and the transmission in Park.
• If the sensor wiring is routed near the exhaust, do not let it touch hot parts.
• If you raise the truck, support it with jack stands. Never rely on the jack alone.
• Disconnect the negative battery cable only if your scan tool or repair method requires it.
• Do not spray penetrating oil directly into the sensor opening.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Oxygen sensor socket, 7/8 inch
• 3/8-inch ratchet
• 3/8-inch breaker bar
• 3/8-inch extension set
• Penetrating oil
• Torque wrench, 3/8-inch drive
• Floor jack (rated 3-ton minimum)
• Jack stands (rated for vehicle weight)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Scan tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Upstream oxygen sensor - Qty: 1
• Downstream oxygen sensor - Qty: 1
• Anti-seize compound - Qty: 1

---

📋 Before You Begin

• Let the exhaust cool fully before touching any sensor or pipe.
• Raise the truck only if needed for access to the sensor.
• Use your scan tool to read the code first so you know which sensor is being replaced.
• Label the sensor before unplugging it.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the sensor

• Find the oxygen sensor on the exhaust system.
• On this truck, upstream sensors are before the catalytic converter and downstream sensors are after it.
• If needed, use a flashlight to trace the sensor wire to its connector.

Step 2: Disconnect the sensor connector

• Use your hands to release the connector lock.
• If the connector is clipped to the frame or bracket, gently release it without pulling on the wire.
• Pull the plug, not the wire.

Step 3: Loosen the sensor

• Spray a small amount of penetrating oil on the sensor threads if it is rusted.
• Use the oxygen sensor socket, 7/8 inch with a 3/8-inch ratchet or breaker bar to loosen the sensor.
• If access is tight, add a 3/8-inch extension.
• Turn counterclockwise to remove.

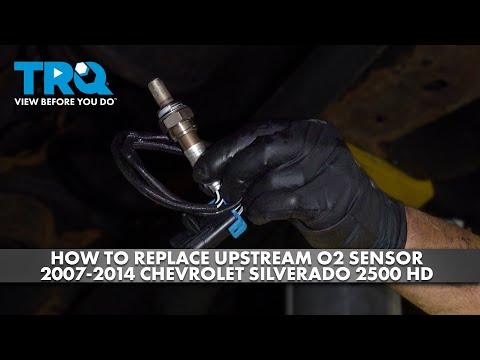

Step 4: Remove the old sensor

• Unscrew the sensor by hand once it is loose.
• Carefully pull the sensor and wire out of the vehicle.
• Check the threads in the exhaust bung for damage or heavy rust.

Step 5: Prepare the new sensor

• Compare the new sensor to the old one to make sure the connector and wire length match.
• If the new sensor threads do not already have coating, apply a small amount of anti-seize compound to the threads only.
• Do not get anti-seize on the sensing tip.

Step 6: Install the new sensor

• Thread the new sensor in by hand first to avoid cross-threading.
• Use the oxygen sensor socket, 7/8 inch to snug it down.
• Torque to 41 Nm (30 ft-lbs).
• Route the wire exactly like the original so it stays away from the exhaust.

Step 7: Reconnect and secure the wiring

• Reconnect the electrical plug until it clicks.
• Reinstall any wire clips or retainers removed earlier.
• Make sure the harness is not touching the exhaust or steering parts.

Step 8: Clear codes and verify repair

• Use the scan tool to clear the stored code.
• Start the engine and let it idle.
• Check for exhaust leaks, warning lights, and scan tool data.

---

✅ After Repair

• Drive the truck for a short test drive and confirm the check engine light stays off.
• Recheck the sensor wire routing after the engine reaches operating temperature.
• If the code returns, inspect for exhaust leaks, damaged wiring, or the wrong sensor location.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$380 (parts + labor)

DIY Cost: $45-$140 (parts only)

You Save: $135-$240 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.5 hours.

---
