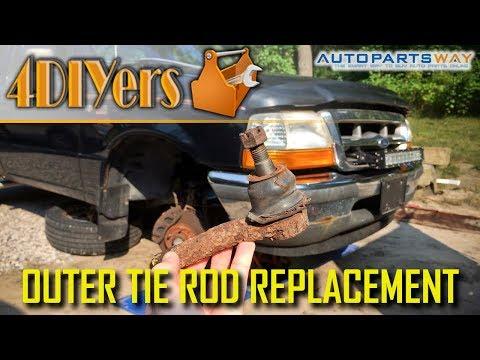

🔧 Ranger - Outer Tie Rod End Replacement

This repair replaces a worn outer tie rod end, which connects the steering rack to the front wheel knuckle and lets the wheels turn. A loose tie rod end can cause clunking, wandering steering, uneven tire wear, or unsafe handling.

Difficulty Level: Intermediate | Estimated Time: 1-2 hours per side

---

⚠️ Safety & Precautions

• ⚠️ Work on a flat, solid surface and support your Ranger with jack stands before going under or beside the wheel area.
• ⚠️ Do not rely on a floor jack alone; a floor jack lifts the truck, but jack stands hold it safely.
• ⚠️ Keep your hands clear when separating the tie rod end from the steering knuckle because it can pop loose suddenly.
• ⚠️ Do not hammer directly on the threaded stud if you plan to compare or reuse the hardware.
• ⚠️ Battery disconnect is not required for this repair.
• ⚠️ A professional wheel alignment is required after replacement to prevent tire wear and steering pull.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm lug nut socket
• 1/2-inch drive breaker bar
• 1/2-inch drive torque wrench
• Metric socket set 10mm-24mm
• Metric wrench set 10mm-24mm
• Adjustable wrench
• Tie rod end puller (specialty)
• Ball joint separator fork (specialty)
• Needle-nose pliers
• Paint marker
• Tape measure
• Wire brush
• Penetrating oil
• Hammer 16 oz
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1 per side
• Outer tie rod end castle nut - Qty: 1 per side
• Cotter pin - Qty: 1 per side
• Anti-seize compound - Qty: 1

---

📋 Before You Begin

• 🚗 Park your Ranger on level ground with the steering wheel centered.
• 🧱 Place wheel chocks behind the rear wheels.
• 🛞 Loosen the front wheel lug nuts slightly before lifting the truck.
• 📏 Count the turns when removing the old tie rod end; this helps keep the alignment close enough to drive carefully to an alignment shop.
• 🧰 A castle nut is a nut with slots in the top; a cotter pin passes through it to keep it from loosening.
• 🧰 A tie rod end puller is a small press tool that separates the tapered stud without damaging the steering knuckle.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Front Wheel

• Use a 21mm lug nut socket and 1/2-inch drive breaker bar to loosen the front wheel lug nuts about half a turn.
• Do not remove the lug nuts yet.
• Loosen before lifting for stability.

Step 2: Lift and Support the Truck

• Use a floor jack rated 3-ton minimum to lift the front of your Ranger at a proper front frame or crossmember lift point.
• Place jack stands rated 3-ton minimum under the frame.
• Slowly lower the truck onto the jack stands.
• Gently shake the truck by hand to make sure it is stable before removing the wheel.

Step 3: Remove the Wheel

• Use the 21mm lug nut socket to remove the loosened lug nuts.
• Remove the wheel and set it flat under the side of the truck as an extra safety backup.

Step 4: Clean and Mark the Tie Rod Position

• Use a wire brush to clean the threads where the outer tie rod end meets the inner tie rod.
• Spray the jam nut and threads with penetrating oil.
• Use a paint marker to mark the position of the old tie rod end on the threads.
• Use a tape measure to measure from a fixed point on the inner tie rod to the center of the tie rod stud, if accessible.
• This helps preserve toe alignment.

Step 5: Loosen the Jam Nut

• The jam nut locks the outer tie rod end in place on the threaded inner tie rod.
• Use the correct-size metric wrench from 10mm-24mm set on the jam nut.
• Use an adjustable wrench on the outer tie rod body if it tries to turn.
• Loosen the jam nut only about 1/4 to 1/2 turn.
• Do not spin it far away from the original position.

Step 6: Remove the Cotter Pin

• Use needle-nose pliers to straighten the bent ends of the cotter pin at the tie rod stud.
• Pull the cotter pin out of the castle nut.
• If the cotter pin breaks, use the needle-nose pliers to remove all loose pieces before removing the nut.

Step 7: Remove the Castle Nut

• Use the correct-size metric socket from 10mm-24mm set and a ratchet to remove the castle nut from the tie rod stud.
• If the stud spins, press down on the tie rod end by hand while loosening the nut with the metric socket.
• Keep the old nut nearby only for comparison; install the new nut during reassembly.

Step 8: Separate the Tie Rod End from the Steering Knuckle

• Install the tie rod end puller over the steering knuckle and tie rod stud.
• Tighten the puller screw using the correct-size metric socket from 10mm-24mm set until the stud pops free.
• If using a ball joint separator fork, place it between the tie rod end and knuckle, then tap it with a 16 oz hammer.
• Do not strike the aluminum or machined steering knuckle directly with the hammer.

Step 9: Count Turns and Remove the Old Tie Rod End

• Turn the outer tie rod end counterclockwise by hand to remove it from the inner tie rod.
• Count every full turn and half turn as it comes off.
• Write down the number of turns.
• Example: “18 and 1/2 turns.”

Step 10: Install the New Tie Rod End

• Apply a light coat of anti-seize compound to the inner tie rod threads.
• Thread the new outer tie rod end on by hand the same number of turns you counted during removal.
• Align it close to the paint mark made earlier.
• Do not fully tighten the jam nut yet.

Step 11: Attach the Tie Rod End to the Steering Knuckle

• Insert the new tie rod stud into the steering knuckle by hand.
• Install the new castle nut by hand first to avoid cross-threading.
• Use the correct-size metric socket from 10mm-24mm set and 1/2-inch drive torque wrench to tighten the castle nut.
• Torque to 80 Nm (59 ft-lbs).
• If the cotter pin hole does not line up, tighten the castle nut slightly more until the slot lines up with the hole.
• Never loosen the castle nut to line up the cotter pin.

Step 12: Install the New Cotter Pin

• Slide the new cotter pin through the hole in the tie rod stud.
• Use needle-nose pliers to bend the cotter pin ends around the castle nut.
• Make sure the cotter pin cannot fall out.

Step 13: Tighten the Jam Nut

• Hold the outer tie rod end steady with an adjustable wrench.
• Use the correct-size metric wrench from 10mm-24mm set to tighten the jam nut against the outer tie rod end.
• Torque to 70 Nm (52 ft-lbs).
• Make sure the tie rod end boot is not twisted.

Step 14: Reinstall the Wheel

• Place the wheel back onto the hub.
• Install the lug nuts by hand first.
• Use the 21mm lug nut socket to snug the lug nuts in a star pattern.

Step 15: Lower the Truck and Torque the Lug Nuts

• Use the floor jack rated 3-ton minimum to lift the truck slightly off the jack stands.
• Remove the jack stands rated 3-ton minimum.
• Lower the truck fully to the ground.
• Use the 21mm lug nut socket and 1/2-inch drive torque wrench to tighten the lug nuts in a star pattern.
• Torque to 135 Nm (100 ft-lbs).

---

✅ After Repair

• ✅ Turn the steering wheel slowly from lock to lock while parked and listen for binding, popping, or rubbing.
• ✅ Test drive slowly in a safe area and confirm the steering feels normal.
• ✅ If the steering wheel is off-center or the truck pulls, drive carefully and schedule alignment immediately.
• ✅ Get a professional front-end alignment as soon as possible after replacing any tie rod end.
• ✅ Recheck the lug nut torque after 25-50 miles using a 21mm lug nut socket and 1/2-inch drive torque wrench.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 per side including parts, labor, and alignment-related handling

DIY Cost: $35-$120 per side for parts only

You Save: $150-$300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.5 hours, plus alignment time.

---
