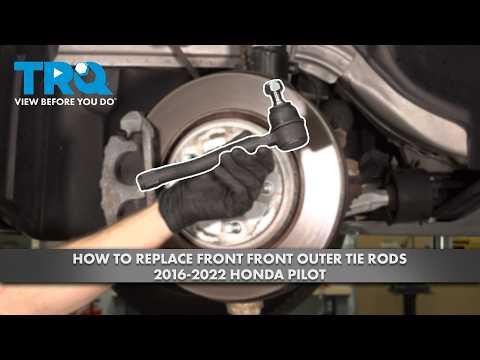

🔧 Pilot - Outer Tie Rod End Replacement

This repair replaces a worn outer tie rod end, which connects the steering rack to the steering knuckle and helps turn the front wheels. A bad tie rod end can cause loose steering, clunking, uneven tire wear, or poor alignment.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours per side

---

⚠️ Safety & Precautions

• ⚠️ Support your Pilot with jack stands only. Never work under a vehicle held by a jack alone.
• ⚠️ The tie rod affects steering. If anything feels loose after repair, do not drive until corrected.
• ⚠️ Replace tie rod ends in pairs if both sides show wear, but you can replace one failed side if the other is tight.
• ⚠️ A wheel alignment is required after replacement to prevent tire wear and steering pull.
• ⚠️ Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 19mm socket
• 1/2-inch drive breaker bar
• 1/2-inch drive ratchet
• Torque wrench (10-150 ft-lbs)
• 17mm open-end wrench
• 19mm open-end wrench
• Needle-nose pliers
• Side cutters
• Tie rod end puller (specialty)
• Ball-peen hammer
• Paint marker
• Tape measure
• Wire brush
• Penetrating oil
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1 per side
• New cotter pin - Qty: 1 per side
• New tie rod end castle nut - Qty: 1 per side

---

📋 Before You Begin

• 🅿️ Park your Pilot on level ground and set the parking brake.
• 🧱 Place wheel chocks behind the rear wheels.
• 📏 Before removing the tie rod end, measure and mark its position. This helps keep the alignment close enough to drive carefully to an alignment shop.
• 🔩 Spray penetrating oil on the tie rod jam nut and the tie rod stud nut. Let it soak for several minutes.
• 🧰 A jam nut is the lock nut on the inner tie rod threads that holds the outer tie rod end in position.
• 🧰 A tie rod end puller is a tool that presses the tie rod stud out of the steering knuckle without damaging nearby parts.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Front Wheel Lug Nuts

• Use a 19mm socket and 1/2-inch drive breaker bar to loosen the front wheel lug nuts about 1/2 turn.
• Do not remove the lug nuts yet.
• Loosen while tire is on ground.

Step 2: Raise and Support the Front of the Pilot

• Use a floor jack (rated 3-ton minimum) to lift the front of your Pilot at the front center jacking point.
• Place jack stands (rated 3-ton minimum) under the proper front support points.
• Lower the vehicle gently onto the jack stands.
• Keep the floor jack lightly touching the lift point as a backup.

Step 3: Remove the Front Wheel

• Use a 19mm socket and 1/2-inch drive ratchet to remove the loosened lug nuts.
• Remove the wheel and set it flat under the side of the vehicle as an extra safety backup.

Step 4: Mark and Measure the Existing Tie Rod Position

• Use a paint marker to mark the inner tie rod threads where the outer tie rod end meets the jam nut.
• Use a tape measure to measure from the center of the tie rod stud to a fixed point on the inner tie rod or jam nut.
• Write this measurement down before removal.
• This helps preserve steering alignment temporarily.

Step 5: Loosen the Tie Rod Jam Nut

• Use a wire brush to clean the exposed threads.
• Apply penetrating oil to the jam nut area.
• Use a 19mm open-end wrench on the jam nut and a 17mm open-end wrench on the tie rod end flats if needed.
• Loosen the jam nut about 1/4 turn only. Do not move it far from its original position.
• If tight, use controlled pressure. Do not round the nut.

Step 6: Remove the Cotter Pin and Castle Nut

• Use needle-nose pliers to straighten the bent ends of the cotter pin.
• Use side cutters or needle-nose pliers to pull the cotter pin out of the tie rod stud.
• Use a 19mm socket and 1/2-inch drive ratchet to remove the castle nut from the tie rod end stud.
• A castle nut has slots on top so a cotter pin can lock it in place.

Step 7: Separate the Tie Rod End from the Steering Knuckle

• Install the tie rod end puller (specialty) over the tie rod end stud and steering knuckle.
• Tighten the puller with the correct drive tool from the puller kit until the stud pops free.
• If needed, use a ball-peen hammer to tap the side of the steering knuckle while tension is applied by the puller.
• Do not hammer directly on the tie rod stud if you plan to compare it or return it as a core.
• The pop sound is normal.

Step 8: Count Turns and Remove the Old Tie Rod End

• Turn the outer tie rod end counterclockwise by hand to remove it from the inner tie rod.
• Count the exact number of full turns as it comes off.
• Write the number down.
• Leave the jam nut close to its original marked position.

Step 9: Install the New Outer Tie Rod End

• Thread the new outer tie rod end onto the inner tie rod by hand.
• Turn it clockwise the same number of turns counted during removal.
• Use the tape measure to compare your original measurement.
• Use the paint marker reference mark to get the position as close as possible.
• Do not fully tighten the jam nut yet.

Step 10: Seat the Tie Rod Stud in the Steering Knuckle

• Insert the new tie rod end stud into the steering knuckle by hand.
• Install the new castle nut by hand to avoid cross-threading.
• Use a 19mm socket and torque wrench to tighten the castle nut to Torque to 49 Nm (36 ft-lbs).
• If the cotter pin hole does not line up, tighten the castle nut slightly more until the next slot lines up. Never loosen it to align the hole.

Step 11: Install the New Cotter Pin

• Slide the new cotter pin through the tie rod stud hole.
• Use needle-nose pliers to bend both cotter pin legs around the castle nut.
• Make sure the cotter pin cannot slide back out.

Step 12: Tighten the Jam Nut

• Hold the tie rod end steady with a 17mm open-end wrench.
• Use a 19mm open-end wrench to tighten the jam nut against the outer tie rod end.
• Tighten the jam nut firmly while keeping the tie rod end straight.
• If using a crowfoot attachment with a torque wrench, tighten the jam nut to Torque to 55 Nm (41 ft-lbs).

Step 13: Reinstall the Wheel

• Place the wheel back on the hub by hand.
• Install the lug nuts by hand first.
• Use a 19mm socket and 1/2-inch drive ratchet to snug the lug nuts in a star pattern.

Step 14: Lower the Vehicle and Torque the Lug Nuts

• Use the floor jack (rated 3-ton minimum) to raise your Pilot slightly off the jack stands.
• Remove the jack stands (rated 3-ton minimum).
• Lower the vehicle until the tire touches the ground.
• Use a 19mm socket and torque wrench to tighten the lug nuts in a star pattern to Torque to 127 Nm (94 ft-lbs).

Step 15: Basic Steering Check

• Start your Pilot and turn the steering wheel slowly left and right.
• Listen for clunks and make sure the wheel turns smoothly.
• Use safety glasses and visually check that the cotter pin, castle nut, and jam nut are secure.

---

✅ After Repair

• ✅ Drive slowly at first in a safe area and confirm the steering wheel returns normally after turns.
• ✅ Schedule a professional front wheel alignment as soon as possible. This repair changes toe angle, which is the inward or outward pointing direction of the tires.
• ✅ Recheck the lug nut torque after 25-50 miles using a 19mm socket and torque wrench: Torque to 127 Nm (94 ft-lbs).
• ✅ If the steering wheel is badly off-center, the vehicle pulls hard, or tires squeal, do not continue driving except directly to alignment service.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 per side (parts + labor + alignment)

DIY Cost: $35-$100 per side, plus $100-$180 for alignment

You Save: $100-$250 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours, plus alignment time.

---
