🔧 Civic - Outer Tie Rod End Replacement

This repair replaces a worn outer tie rod end, which connects the steering rack to the front wheel knuckle. A bad tie rod end can cause loose steering, clunking, uneven tire wear, or poor alignment.

Difficulty Level: Beginner to Intermediate | Estimated Time: 1-2 hours per side

Assumption: This procedure covers the outer tie rod end on the front suspension of your Civic.

---

⚠️ Safety & Precautions

• ⚠️ Always support your Civic with jack stands before working underneath or near the wheel area.
• ⚠️ Never rely on a floor jack alone. A floor jack lifts the vehicle; jack stands hold it safely.
• ⚠️ Do not hammer directly on the steering knuckle threads or tie rod threads.
• ⚠️ Replace the cotter pin with a new one. A cotter pin is a small bent metal safety pin that keeps the castle nut from loosening.
• ⚠️ Your Civic will need a professional wheel alignment after this repair.
• ⚠️ Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 19mm lug nut socket
• 1/2-inch drive breaker bar
• 1/2-inch drive torque wrench
• 17mm wrench
• 19mm wrench
• 17mm socket
• Ratchet wrench
• Needle-nose pliers
• Tie rod end puller (specialty)
• Paint marker
• Tape measure
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1 per side
• New cotter pin - Qty: 1 per side
• New tie rod end castle nut - Qty: 1 per side

---

📋 Before You Begin

• Park your Civic on level ground.
• Set the parking brake and place wheel chocks behind the rear wheels.
• Loosen the front wheel lug nuts slightly before lifting the car.
• Turn the steering wheel so the tie rod end you are replacing is easier to reach.
• Take a photo of the original tie rod end position before removal.
• Plan for a wheel alignment immediately after the repair.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Front Wheel

• Use a 19mm lug nut socket and 1/2-inch drive breaker bar to loosen the front wheel lug nuts about half a turn.
• Do not remove the lug nuts yet.
• Loosen wheels before lifting.

Step 2: Lift and Support the Vehicle

• Use a floor jack rated 2-ton minimum to lift the front of your Civic at the front center jacking point.
• Place jack stands rated 2-ton minimum under the proper front side pinch weld support points.
• Slowly lower the vehicle onto the jack stands.
• Gently shake the vehicle by hand to confirm it is stable before working.

Step 3: Remove the Front Wheel

• Use the 19mm lug nut socket to remove the loosened lug nuts.
• Remove the wheel and place it flat under the side of the vehicle as an extra safety backup.

Step 4: Mark the Tie Rod Position

• Use a paint marker to mark where the outer tie rod end meets the inner tie rod threads.
• Use a tape measure to measure from the center of the tie rod end stud to a fixed point on the inner tie rod.
• Write down the measurement.
• This helps keep the steering close enough to drive carefully to an alignment shop.
• Marking helps preserve alignment.

Step 5: Loosen the Jam Nut

• The jam nut is the lock nut behind the outer tie rod end.
• Use a 19mm wrench on the jam nut.
• Use a 17mm wrench on the tie rod end flats if needed to hold it steady.
• Loosen the jam nut about one turn only.
• Do not move the jam nut far from your paint mark.

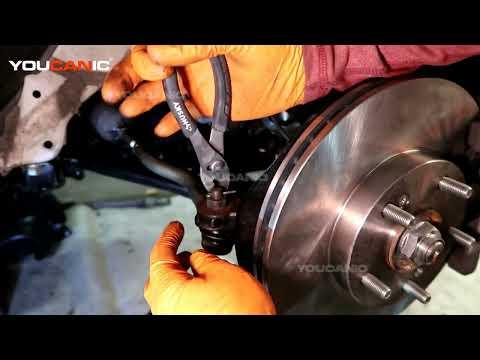

Step 6: Remove the Cotter Pin

• Use needle-nose pliers to straighten the bent ends of the cotter pin.
• Pull the cotter pin out of the tie rod end stud.
• Discard the old cotter pin. Do not reuse it.

Step 7: Remove the Castle Nut

• The castle nut is the slotted nut on top of the tie rod end stud.
• Use a 17mm socket and ratchet wrench to remove the castle nut.
• If the stud spins, apply light upward pressure under the tie rod end while loosening the nut.

Step 8: Separate the Tie Rod End from the Knuckle

• Use a tie rod end puller (specialty) to press the tie rod end stud out of the steering knuckle.
• A tie rod end puller is a small press tool that safely separates the tapered stud without damaging the steering knuckle.
• Do not strike the threaded stud with a hammer.

Step 9: Count Turns While Removing the Old Tie Rod End

• Turn the old outer tie rod end counterclockwise by hand to remove it from the inner tie rod.
• Count the exact number of turns until it comes off.
• Write down the turn count.
• This helps install the new part in nearly the same position.

Step 10: Install the New Outer Tie Rod End

• Thread the new outer tie rod end onto the inner tie rod by hand.
• Use the same number of turns you counted during removal.
• Align it with your paint marker reference mark and measurement.
• Do not fully tighten the jam nut yet.

Step 11: Attach the Tie Rod End to the Steering Knuckle

• Insert the new tie rod end stud into the steering knuckle by hand.
• Install the new castle nut by hand first to avoid cross-threading.
• Use a 17mm socket and 1/2-inch drive torque wrench to tighten the castle nut to Torque to 49 Nm (36 ft-lbs).
• If the cotter pin hole does not line up, tighten the castle nut slightly more until it lines up. Do not loosen the nut to align the hole.

Step 12: Install the New Cotter Pin

• Slide the new cotter pin through the hole in the tie rod end stud.
• Use needle-nose pliers to bend the cotter pin ends around the castle nut.
• Make sure the cotter pin cannot fall out.

Step 13: Tighten the Jam Nut

• Hold the outer tie rod end steady with a 17mm wrench.
• Use a 19mm wrench to tighten the jam nut against the outer tie rod end.
• Tighten the jam nut firmly to Torque to 44 Nm (33 ft-lbs) if using a compatible torque wrench setup.
• If you cannot torque it with your tools, tighten it snugly and have the alignment shop verify final torque.

Step 14: Reinstall the Wheel

• Place the wheel back onto the hub.
• Install the lug nuts by hand first.
• Use the 19mm lug nut socket and ratchet wrench to snug the lug nuts in a star pattern.

Step 15: Lower the Vehicle and Torque the Lug Nuts

• Use the floor jack rated 2-ton minimum to lift the vehicle slightly off the jack stands.
• Remove the jack stands rated 2-ton minimum.
• Lower your Civic fully to the ground.
• Use the 19mm lug nut socket and 1/2-inch drive torque wrench to tighten the wheel lug nuts in a star pattern to Torque to 108 Nm (80 ft-lbs).

---

✅ After Repair

• Turn the steering wheel left and right while parked to check for smooth movement.
• Drive slowly at first and listen for clunks or rubbing noises.
• If the steering wheel is off-center or the vehicle pulls, stop driving except to reach an alignment shop.
• Get a professional front wheel alignment as soon as possible.
• After 25-50 miles, recheck the wheel lug nut torque to 108 Nm (80 ft-lbs).

---

💰 DIY vs Shop Cost

Shop Cost: $220-$450 per side, including parts, labor, and basic alignment-related labor

DIY Cost: $35-$120 per side for parts only, plus alignment afterward

You Save: $120-$300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1-1.5 hours per side.

---
