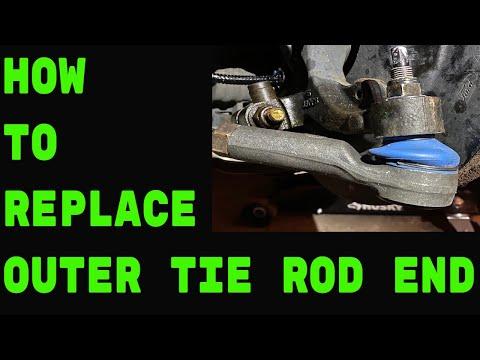

🔧 Mustang - Outer Tie Rod End Replacement

This repair replaces the outer tie rod end, which connects the steering rack to the front wheel knuckle and helps steer your Mustang. A worn tie rod end can cause loose steering, clunking, uneven tire wear, or poor alignment.

Difficulty Level: Beginner-Intermediate | Estimated Time: 1-2 hours per side

---

⚠️ Safety & Precautions

• ⚠️ Work on a flat, solid surface and never rely on a jack alone.
• ⚠️ Use jack stands under the proper front support points before putting any part of your body near the wheel area.
• ⚠️ Replace tie rod ends in pairs if both sides show wear, but only remove one side at a time so you can compare positions.
• ⚠️ Your Mustang will need a professional wheel alignment after this repair, even if you count the turns carefully.
• ⚠️ Do not disconnect the battery for this repair; it is not required.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 1/2-inch drive breaker bar
• 21mm socket
• 19mm wrench
• 22mm wrench
• 18mm socket
• 3/8-inch drive ratchet
• Torque wrench (10-150 ft-lbs)
• Tie rod end separator (specialty)
• Needle-nose pliers
• Paint marker
• Tape measure
• Penetrating oil
• Shop rags
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front outer tie rod end - Qty: 1 per side
• Outer tie rod end retaining nut - Qty: 1 per side
• Cotter pin - Qty: 1 per side, if supplied with replacement tie rod

---

📋 Before You Begin

• Park your Mustang on level ground with the steering wheel straight.
• Set the parking brake and place wheel chocks behind the rear tires.
• Use a paint marker to mark the steering wheel centered position if needed.
• Spray penetrating oil on the tie rod jam nut and outer tie rod stud nut, then let it soak for several minutes.
• A jam nut is the locking nut on the threaded steering rod that keeps the tie rod end from turning out of adjustment.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Front Wheel Lug Nuts

• Use a 21mm socket and 1/2-inch drive breaker bar to loosen the front wheel lug nuts about half a turn.
• Do this while the tire is still touching the ground so the wheel does not spin.
• Do not fully remove them yet.

Step 2: Raise and Support the Front of the Car

• Use a floor jack to lift the front of your Mustang at the proper front jacking point.
• Place jack stands under the front support points.
• Gently lower the car onto the jack stands.
• Lightly shake the car by hand to confirm it is stable before working.

Step 3: Remove the Front Wheel

• Use a 21mm socket and 3/8-inch drive ratchet to remove the loosened lug nuts.
• Remove the wheel and set it flat under the car as an extra safety backup.

Step 4: Mark the Current Tie Rod Position

• Use a paint marker to mark where the outer tie rod end meets the threaded inner tie rod.
• Use a tape measure to measure from the jam nut to the center of the tie rod ball stud.
• Write down the measurement before removing anything.
• This helps get alignment close enough to drive.

Step 5: Loosen the Jam Nut

• Hold the outer tie rod end steady with a 22mm wrench if needed.
• Use a 19mm wrench to loosen the jam nut by turning it counterclockwise.
• Only break it loose; do not spin it far down the threads yet.

Step 6: Remove the Tie Rod End Retaining Nut

• If your replacement style uses a cotter pin, use needle-nose pliers to straighten and remove the cotter pin from the tie rod stud.
• Use an 18mm socket and 3/8-inch drive ratchet to remove the tie rod end retaining nut from the steering knuckle.
• The steering knuckle is the metal part behind the brake rotor that the wheel hub and steering parts attach to.

Step 7: Separate the Tie Rod End from the Steering Knuckle

• Install the tie rod end separator between the tie rod end and steering knuckle.
• Use the separator tool to press the tie rod stud out of the knuckle.
• Do not hammer directly on the threaded stud if you plan to compare the old part.
• Keep your fingers clear when it pops loose.

Step 8: Count Turns While Removing the Old Tie Rod End

• Turn the old outer tie rod end counterclockwise by hand to remove it from the inner tie rod.
• Count the exact number of full turns as it comes off.
• Write the number down.
• This is not a substitute for alignment, but it helps keep the toe setting close.

Step 9: Install the New Outer Tie Rod End

• Thread the new outer tie rod end onto the inner tie rod by hand.
• Use the same number of turns counted during removal.
• Line it up with the paint mark and measurement you recorded earlier.
• Make sure the ball stud points down into the steering knuckle.

Step 10: Attach the Tie Rod End to the Steering Knuckle

• Insert the new tie rod end stud into the steering knuckle by hand.
• Install the new retaining nut by hand first to avoid cross-threading.
• Use an 18mm socket and torque wrench to tighten the tie rod end retaining nut to Torque to 80 Nm (59 ft-lbs).
• If the replacement tie rod uses a cotter pin, use needle-nose pliers to install and bend the new cotter pin after torquing.

Step 11: Tighten the Jam Nut

• Hold the tie rod end with a 22mm wrench so it does not twist.
• Use a 19mm wrench to tighten the jam nut against the new tie rod end.
• Use a torque wrench with the correct wrench adapter if available and tighten the jam nut to Torque to 63 Nm (46 ft-lbs).
• If using hand wrenches only, make it snug and secure, then have the alignment shop verify final torque.

Step 12: Reinstall the Wheel

• Place the wheel back on the hub.
• Install the lug nuts by hand first.
• Use a 21mm socket and 3/8-inch drive ratchet to snug the lug nuts in a star pattern.

Step 13: Lower the Car and Torque the Lug Nuts

• Use the floor jack to raise the car slightly off the jack stands.
• Remove the jack stands.
• Lower your Mustang until the tire touches the ground.
• Use a 21mm socket and torque wrench to tighten the lug nuts in a star pattern to Torque to 204 Nm (150 ft-lbs).

---

✅ After Repair

• Turn the steering wheel slowly left and right to confirm there is no binding or popping.
• Test drive slowly in a safe area and check that the steering feels normal.
• If the steering wheel is off-center or the car pulls, do not continue driving except to an alignment shop.
• Schedule a professional front-end alignment as soon as possible.
• Recheck the lug nut torque after 25-50 miles using a 21mm socket and torque wrench.

---

💰 DIY vs Shop Cost

Shop Cost: $220-$420 per side including parts, labor, and alignment-related labor

DIY Cost: $35-$95 per side for parts only

You Save: $125-$325 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.5 hours, plus alignment time.

---
