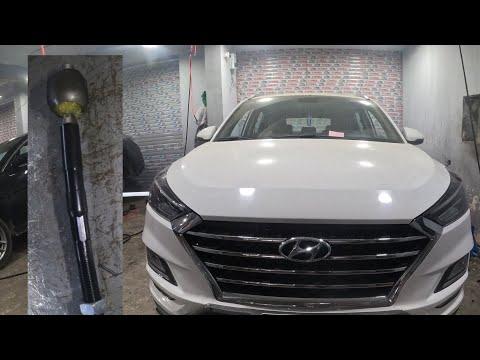

🔧 Tucson - Outer Tie Rod End Replacement

This repair replaces a worn outer tie rod end, which connects the steering rack to the front wheel knuckle and helps steer your Tucson. A bad tie rod end can cause looseness, clunking, wandering, uneven tire wear, or a failed alignment check.

Difficulty Level: Beginner to Intermediate | Estimated Time: 1-2 hours per side

Assumption: This procedure covers one front outer tie rod end; repeat the same steps on the other side if replacing both.

---

⚠️ Safety & Precautions

• ⚠️ Work on level ground only and support your Tucson with jack stands. Never rely on a floor jack alone.
• ⚠️ Tie rod ends affect steering. If anything feels loose or damaged after installation, do not drive until corrected.
• ⚠️ A wheel alignment is required after replacement to prevent tire wear and poor handling.
• ⚠️ Do not heat steering parts with a torch. Heat can damage nearby boots, seals, and steering components.
• ⚠️ Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 21mm lug nut socket
• 1/2-inch drive breaker bar
• 1/2-inch drive ratchet
• Torque wrench (10-150 ft-lbs)
• 17mm wrench
• 19mm wrench
• 19mm socket
• Needle-nose pliers
• Outer tie rod end puller (specialty)
• Paint marker
• Tape measure
• Wire brush
• Penetrating oil
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1 per side
• New cotter pin - Qty: 1 per side
• New castle nut - Qty: 1 per side
• Anti-seize compound - Qty: 1 small packet

---

📋 Before You Begin

• 🅿️ Park your Tucson on level ground, shift to Park, and set the parking brake.
• 🧱 Place wheel chocks behind the rear wheels.
• 📏 Keep the steering wheel centered before starting.
• 🛞 Loosen the front lug nuts slightly before lifting the vehicle.
• 🧰 A tie rod end puller is a tool that safely presses the tapered stud out of the steering knuckle without hammering on steering parts.
• 🧰 A cotter pin is a small bendable metal pin that locks the nut so it cannot loosen.
• 🧰 A castle nut is a nut with slots in the top so a cotter pin can pass through it.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Front Wheel

• Use a 21mm lug nut socket and 1/2-inch drive breaker bar to loosen the lug nuts about 1/2 turn.
• Do not fully remove the lug nuts while the tire is still on the ground.
• Loose first, lift second.

Step 2: Lift and Support the Vehicle

• Use a floor jack to lift the front of your Tucson at the front subframe lift point.
• Place jack stands under the proper front pinch weld or subframe support points.
• Gently lower the vehicle onto the jack stands.
• Use your hands to lightly shake the vehicle to confirm it is stable before working near the wheel area.

Step 3: Remove the Wheel

• Use a 21mm lug nut socket and 1/2-inch drive ratchet to remove the loosened lug nuts.
• Remove the wheel and set it flat under the side of the vehicle as an extra safety backup.

Step 4: Clean and Mark the Tie Rod Threads

• Use a wire brush to clean the exposed threads on the inner tie rod.
• Spray the jam nut and tie rod threads with penetrating oil.
• Use a paint marker to mark where the outer tie rod end sits on the inner tie rod threads.
• Use a tape measure to measure from the center of the tie rod stud to a fixed point on the inner tie rod, then write that measurement down.
• This helps get close before alignment.

Step 5: Loosen the Jam Nut

• The jam nut locks the outer tie rod end in place on the threaded inner tie rod.
• Use a 19mm wrench on the jam nut and a 17mm wrench on the flats of the tie rod end if needed.
• Turn the jam nut loose about 1/4 turn only.
• Do not move the jam nut far from its original position yet.

Step 6: Remove the Cotter Pin

• Use needle-nose pliers to straighten the bent ends of the cotter pin at the tie rod stud.
• Pull the cotter pin out of the castle nut.
• If the cotter pin breaks, remove all pieces with needle-nose pliers.

Step 7: Remove the Castle Nut

• Use a 19mm socket and 1/2-inch drive ratchet to loosen and remove the castle nut from the tie rod stud.
• If the stud spins, apply downward pressure on the tie rod end by hand while loosening the nut.

Step 8: Separate the Tie Rod End from the Steering Knuckle

• Install the outer tie rod end puller over the steering knuckle and tie rod stud.
• Use the tool screw to press the stud out of the knuckle until it pops free.
• Do not hammer directly on the threaded stud.
• Remove the old outer tie rod end from the steering knuckle.

Step 9: Count the Turns While Removing the Old Tie Rod End

• Turn the old outer tie rod end counterclockwise by hand to remove it from the inner tie rod.
• Count every full turn as it comes off.
• Write down the exact number of turns.
• This helps keep the alignment close enough to drive slowly to an alignment shop.

Step 10: Install the New Outer Tie Rod End

• Apply a light coat of anti-seize compound to the inner tie rod threads.
• Thread the new outer tie rod end onto the inner tie rod by hand using the same number of turns counted during removal.
• Use the paint marker mark and tape measure measurement to compare the new tie rod position to the old position.
• Do not fully tighten the jam nut yet.

Step 11: Install the Tie Rod Stud into the Steering Knuckle

• Insert the new tie rod stud into the steering knuckle by hand.
• Install the new castle nut by hand first to avoid cross-threading.
• Use a 19mm socket and torque wrench to tighten the castle nut to Torque to 24-34 Nm (18-25 ft-lbs).
• If the cotter pin hole does not line up, tighten the castle nut slightly more until the hole aligns with the next slot.
• Never loosen the castle nut to align the cotter pin hole.

Step 12: Install the New Cotter Pin

• Slide the new cotter pin through the castle nut and tie rod stud hole.
• Use needle-nose pliers to bend the cotter pin ends around the nut.
• Make sure the cotter pin cannot fall out.

Step 13: Tighten the Jam Nut

• Hold the outer tie rod end steady with a 17mm wrench.
• Use a 19mm wrench to tighten the jam nut against the outer tie rod end.
• Tighten the jam nut firmly to Torque to 50-60 Nm (37-44 ft-lbs).
• Do not twist the rubber boot while tightening.

Step 14: Reinstall the Wheel

• Place the wheel back onto the hub.
• Install the lug nuts by hand first.
• Use a 21mm lug nut socket and 1/2-inch drive ratchet to snug the lug nuts in a star pattern.

Step 15: Lower the Vehicle and Torque the Lug Nuts

• Use the floor jack to lift the vehicle slightly off the jack stands.
• Remove the jack stands.
• Lower the vehicle fully to the ground with the floor jack.
• Use a 21mm lug nut socket and torque wrench to tighten the lug nuts in a star pattern to Torque to 88-107 Nm (65-79 ft-lbs).

---

✅ After Repair

• ✅ Turn the steering wheel left and right while parked. Listen for binding, popping, or rubbing.
• ✅ Test drive slowly at first. If the steering wheel is badly off-center or the vehicle pulls hard, stop driving and recheck the installation.
• ✅ Schedule a front-end alignment as soon as possible. Counting turns is only a temporary setup method.
• ✅ Recheck the jam nut, cotter pin, and lug nut torque after the first short drive.
• ✅ If replacing one tie rod end due to wear, inspect the opposite side because steering parts often wear in pairs.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 per side, including parts, labor, and alignment-related labor before the final alignment

DIY Cost: $30-$90 per side for parts only, plus alignment afterward

You Save: $100-$220 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.3 hours per side.

---
