🔧 Focus - Mass Air Flow (MAF) Sensor Replacement

The MAF sensor measures how much air enters your Focus so the engine computer can add the right amount of fuel. A bad or dirty MAF can cause rough idle, hesitation, poor mileage, or a check-engine light.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

Assumption: Your Focus uses a MAF held by two Torx screws in the intake tube near the air box.

---

⚠️ Safety & Precautions

• 🧤 Let the engine cool before working near the intake and radiator fan.
• 🧯 Keep sparks/flames away (MAF cleaner is flammable).
• 🔌 Disconnect the negative battery cable to prevent faults and accidental shorting.
• 🧼 Never touch the sensor element inside the MAF (it’s fragile).

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• 10mm socket
• 1/4" ratchet
• 3" extension (1/4")
• Torx T20 security bit
• Flathead screwdriver (medium)
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow (MAF) sensor - Qty: 1
• MAF sensor O-ring/seal - Qty: 1
• Mass air flow sensor cleaner spray - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, shift to neutral, and set the parking brake.
• 🔑 Key off and remove the key.
• 🔌 Open the hood and disconnect the negative battery cable using a 10mm socket.
• 💡 Use a flashlight to locate the MAF on the air intake tube near the air box.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

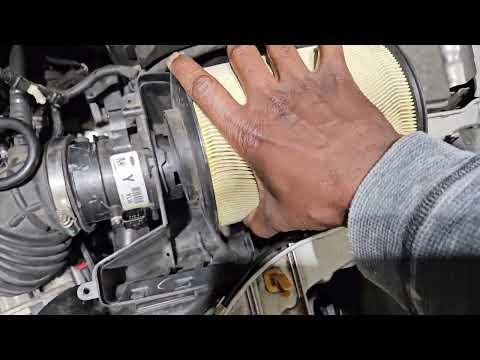

Step 1: Locate the MAF sensor

• Find the air box and the large plastic/rubber intake tube going toward the engine.
• Look for a small electrical connector going into a sensor body mounted in the tube/air box outlet.

Step 2: Unplug the MAF electrical connector

• Press the connector lock tab and pull the connector straight back by hand.
• If it’s stuck, use a flathead screwdriver (medium) gently to help the tab release.

Step 3: Remove the MAF sensor screws

• Use a Torx T20 security bit with a 1/4" ratchet and 3" extension (1/4") to remove the two screws.
• A Torx security bit has a small hole in the center so it fits “tamper-proof” screws.

Step 4: Remove the MAF sensor from the housing

• Pull the sensor straight out. If it resists, wiggle it gently—do not pry on the plastic body.
• Remove the old MAF sensor O-ring/seal if it stayed in the housing.

Step 5: Clean the housing and (optional) compare parts

• Wipe the sealing surface with a clean, dry cloth (no dirt should fall into the intake).
• Compare the new sensor to the old one to ensure the mounting and connector match.

Step 6: Install the new MAF sensor

• Install a new MAF sensor O-ring/seal (lightly seat it so it won’t pinch).
• Slide the new MAF sensor straight into place without forcing it.
• Install the screws by hand first to avoid cross-threading.
• Tighten using the Torx T20 security bit and 1/4" ratchet: Torque to 2 Nm (18 in-lb).
• Snug only—these strip easily.

Step 7: Reconnect the electrical connector

• Push the connector on until you feel/hear it click.
• Give it a gentle tug to confirm it’s locked.

Step 8: Reconnect the battery

• Reconnect the negative battery cable using a 10mm socket.
• Tighten until secure (do not overtighten on the battery post).

---

✅ After Repair

• 🔍 Start the engine and let it idle for 2-3 minutes. Listen for air leaks (hissing) around the intake tube.
• 🛣️ Test drive for 10-15 minutes with a mix of steady cruising and gentle acceleration.
• 💡 If the check-engine light was on, it may clear after a few drive cycles; if it stays on, the codes should be scanned.
• 🧼 If you reused the old sensor (cleaning only), use mass air flow sensor cleaner spray (made for MAFs) and let it fully dry before reinstalling.

---

💰 DIY vs Shop Cost

Shop Cost: $150-$320 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $90-$140 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
