🔧 Optima - MAP Sensor Replacement

Your Optima’s 2.4L engine does not use a mass air flow (MAF) sensor. It calculates airflow using a manifold absolute pressure (MAP) sensor mounted on the intake manifold, so this is the sensor to replace when diagnosing the equivalent airflow-related problem.

Difficulty Level: Beginner | Estimated Time: 20-30 minutes

Assumption: The intended repair is replacement of the factory MAP sensor.

---

⚠️ Safety & Precautions

• ⚠️ Switch the ignition off and keep the key away from the vehicle.
• 🧊 Allow the engine to cool before working near the intake manifold.
• 🔌 Disconnect the negative battery terminal to prevent an electrical short.
• 🧹 Do not allow dirt, tools, or cleaning fluid to enter the sensor opening.
• 🚫 Never probe the connector terminals with an oversized test lead.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4-inch-drive ratchet
• 1/4-inch-drive torque wrench rated 2-20 Nm
• Plastic trim pick
• OBD-II scan tool (specialty)
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Manifold absolute pressure sensor - Qty: 1
• MAP sensor seal - Qty: 1 if not supplied with sensor

---

📋 Before You Begin

• 🅿️ Park your Optima on level ground, select Park, and apply the parking brake.
• ⏳ Wait at least two minutes after switching the ignition off.
• 🔍 If available, use an OBD-II scan tool to record diagnostic codes before clearing anything.
• 🔋 Disconnecting the battery may reset the clock and learned idle settings. No battery registration or programming is required.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the Battery

• Put on the safety glasses and nitrile gloves.
• Open the hood and use the 10mm socket with the 1/4-inch-drive ratchet to loosen the negative battery-terminal clamp.
• Lift the clamp from the negative post and position it where it cannot spring back into contact.

Step 2: Locate the MAP Sensor

• Stand at the front of your Optima and locate the plastic intake manifold behind the throttle body.

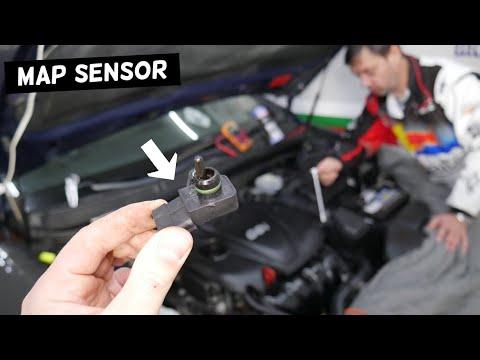

• Find the small electrical sensor inserted directly into the intake manifold. It has one electrical connector and one retaining bolt.
• The MAP sensor measures intake-manifold pressure so the engine computer can calculate airflow.

Step 3: Disconnect the Electrical Connector

• Press the connector’s locking tab with your finger and pull the connector straight away from the sensor.
• If the tab is difficult to release, use the plastic trim pick gently. Do not pry against the wires.
• Inspect the connector for bent terminals, moisture, oil, or damaged wiring.

Step 4: Remove the Old MAP Sensor

• Use the 10mm socket and 1/4-inch-drive ratchet to remove the sensor retaining bolt.
• Hold the sensor body and gently twist while pulling it straight out of the intake manifold.
• Confirm that the old rubber seal came out with the sensor.
• Do not scrape or push debris into the open sensor port.

Step 5: Install the New MAP Sensor

• Confirm the new MAP sensor has an undamaged seal fitted in the correct groove.
• Insert the sensor straight into the intake manifold. Press only on its plastic body.
• Install the retaining bolt by hand first to prevent crossed threads.
• Use the 10mm socket and torque wrench to tighten the bolt to 7.8-9.8 Nm (69-87 in-lbs).
• Do not overtighten the plastic sensor.

Step 6: Reconnect the Sensor and Battery

• Push the electrical connector onto the sensor until its locking tab clicks.
• Gently pull on the connector body to confirm it is locked. Do not pull the wires.
• Place the negative battery clamp back onto the battery post.
• Use the 10mm socket and 1/4-inch-drive ratchet to tighten the clamp securely without crushing it.

Step 7: Clear Codes and Check Operation

• Connect the OBD-II scan tool to the diagnostic port beneath the driver’s side dashboard.
• Switch the ignition on without starting the engine and use the scan tool’s Diagnostics > Engine > Clear Trouble Codes command.
• Start the engine and let it idle without pressing the accelerator for five minutes.
• Use the scan tool to verify that the MAP reading changes smoothly when the engine is gently accelerated.

---

✅ After Repair

• ✅ Confirm that the engine idles smoothly and the check-engine light remains off.
• 👂 Listen for a hissing sound around the sensor, which could indicate a pinched or missing seal.
• 🚗 Take a 10-15 minute drive using light and moderate acceleration.
• 🔍 Scan again for pending trouble codes after the drive.
• ⚠️ If the original code returns, inspect the connector, wiring, intake leaks, and throttle body before replacing additional parts.

---

💰 DIY vs Shop Cost

Shop Cost: ₹5,000-₹12,000 (parts + labor)

DIY Cost: ₹2,500-₹8,000 (parts only)

You Save: ₹2,500-₹4,000 by doing it yourself!

Local labor rates and imported sensor prices vary. This repair takes a shop approximately 0.3-0.5 hour.

---
