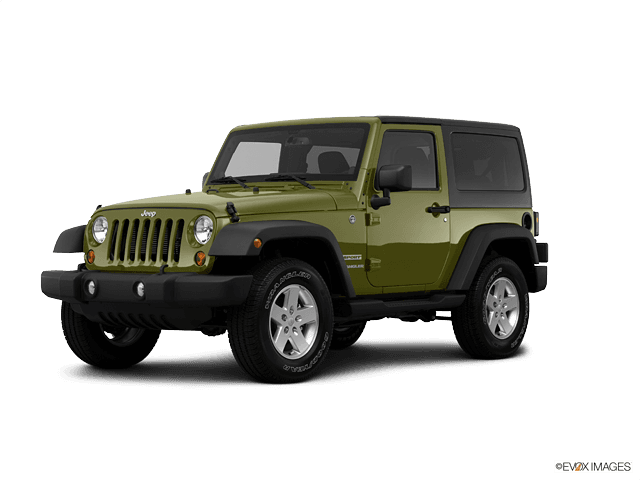

🔧 Wrangler - Mass Air Flow Sensor Replacement

Your Wrangler’s 3.6L Pentastar engine does not use a traditional Mass Air Flow (MAF) sensor. It uses a MAP sensor instead, which measures intake manifold air pressure so the engine computer can calculate airflow.

This guide covers replacing the MAP sensor, which is the correct airflow-related sensor on your Wrangler.

Difficulty Level: Beginner | Estimated Time: 15-30 minutes

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool before working near the intake manifold.
• ⚠️ Disconnect the negative battery cable to protect the engine computer and avoid accidental shorts.
• ⚠️ Do not pull on wiring. Always release the electrical connector tab first.
• ⚠️ Keep dirt and debris out of the intake opening when the sensor is removed.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm wrench
• Torx T20 screwdriver
• Small flathead screwdriver
• Clean shop towel
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• MAP sensor - Qty: 1
• MAP sensor O-ring seal - Qty: 1

---

📋 Before You Begin

• 🅿️ Park your Wrangler on level ground and set the parking brake.
• 🔑 Turn the ignition off and remove the key.
• 🧊 Let the engine cool for at least 15 minutes if it was recently running.
• 🔋 Use a 10mm wrench to disconnect the negative battery cable.
• 🧰 A MAP sensor means “Manifold Absolute Pressure sensor.” It helps the engine computer calculate how much air is entering the engine.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Open the hood and locate the sensor

• Use the hood prop rod to safely support the hood.
• Stand at the front of your Wrangler and look at the upper intake manifold on the engine.
• The MAP sensor is a small plastic sensor mounted into the intake manifold with an electrical connector attached.
• Take a photo first.

Step 2: Disconnect the electrical connector

• Put on safety glasses and nitrile gloves.
• Use your fingers to press the connector release tab.
• If the tab is tight, use a small flathead screwdriver gently to help lift the lock tab.
• Pull the connector straight back from the sensor.
• Do not pry hard. The plastic can break with age.

Step 3: Remove the MAP sensor retaining screw

• Use a Torx T20 screwdriver to remove the sensor retaining screw.
• Place the screw somewhere safe so it does not fall into the engine bay.
• The screw is small, so work slowly.

Step 4: Remove the old sensor

• Hold the sensor body by hand.
• Gently twist it side to side while pulling it straight out of the intake manifold.
• Use a clean shop towel to wipe the area around the sensor hole.
• Do not push dirt into the opening.

Step 5: Prepare the new sensor

• Check that the new MAP sensor has a clean O-ring seal installed.
• If the O-ring is separate, install it onto the new sensor by hand.
• Lightly moisten the O-ring with clean engine oil using a gloved fingertip.
• A light film is enough.

Step 6: Install the new sensor

• Push the new MAP sensor straight into the intake manifold by hand.
• Make sure it seats fully and sits flat against the mounting surface.
• Install the retaining screw using the Torx T20 screwdriver.
• Tighten the screw snugly. Do not overtighten it because the intake manifold is plastic.
• Torque to 3 Nm (27 in-lbs)

Step 7: Reconnect the electrical connector

• Push the electrical connector onto the new MAP sensor by hand until it clicks.
• Lightly tug the connector to confirm it is locked in place.

Step 8: Reconnect the battery

• Use the 10mm wrench to reconnect the negative battery cable.
• Tighten the battery terminal until it does not move by hand.
• Torque to 5 Nm (44 in-lbs)

Step 9: Start and check the engine

• Start your Wrangler and let it idle for 1-2 minutes.
• Listen for rough idle, hissing, or air leaks around the sensor area.
• If the engine runs smoothly, take a short test drive.

---

✅ After Repair

• ✅ If the check engine light was on, it may turn off after several drive cycles if the MAP sensor was the cause.
• ✅ If you have a scan tool, clear stored diagnostic trouble codes after installation.
• ✅ Recheck the connector after the test drive to make sure it stayed fully locked.
• ✅ If symptoms continue, inspect the intake tube, vacuum hoses, throttle body area, and wiring before replacing more parts.

---

💰 DIY vs Shop Cost

Shop Cost: $120-$250 USD equivalent (parts + labor)

DIY Cost: $35-$90 USD equivalent (parts only)

You Save: $85-$160 USD equivalent by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.3-0.6 hours.

---
