🔧 Mustang - Mass Air Flow Sensor Replacement

The mass air flow sensor measures how much air enters your Mustang so the engine computer can calculate fuel delivery. Replacing it is a beginner-friendly repair because the sensor is mounted in the air intake tube and is easy to access.

Difficulty Level: Beginner | Estimated Time: 15-30 minutes

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool before working near the intake tubing and turbocharger area.
• 🔋 Disconnect the negative battery cable to protect the engine electronics while unplugging the sensor.
• 🧤 Do not touch the sensing element inside the MAF sensor. Oils from your fingers can damage it.
• 🧼 Keep dirt out of the intake tube. Dirt entering the engine can cause damage.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 8mm socket
• 1/4-inch drive ratchet
• Torx T20 screwdriver
• Flat-head screwdriver
• Clean microfiber towel
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow sensor - Qty: 1

---

📋 Before You Begin

• 🅿️ Park your Mustang on level ground and set the parking brake.
• 🔥 Make sure the ignition is OFF and the key is away from the vehicle.
• 🔋 Open the hood and disconnect the negative battery cable using an 8mm socket. A negative battery cable is the black cable marked with a minus symbol.
• ⏱️ Wait at least 2 minutes after disconnecting the battery before unplugging the MAF sensor.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the MAF Sensor

• Open the hood and stand at the front of your Mustang.
• Find the air filter box on the driver-side front area of the engine bay.
• The MAF sensor is installed in the air intake tube near the air filter box and has an electrical connector plugged into it.
• Tip: Follow the air tube from the filter box.

Step 2: Disconnect the Negative Battery Cable

• Use an 8mm socket and 1/4-inch drive ratchet to loosen the negative battery terminal clamp.
• Lift the cable off the battery post and move it aside so it cannot spring back.
• Do not let your tool touch both battery terminals at the same time.

Step 3: Unplug the MAF Sensor Connector

• Put on nitrile gloves and safety glasses.
• Press the locking tab on the MAF sensor electrical connector.
• Pull the connector straight off the sensor by the plastic plug, not by the wires.
• If the connector is stuck, use a flat-head screwdriver gently under the lock tab while pulling the connector back.
• Tip: Be gentle with old plastic clips.

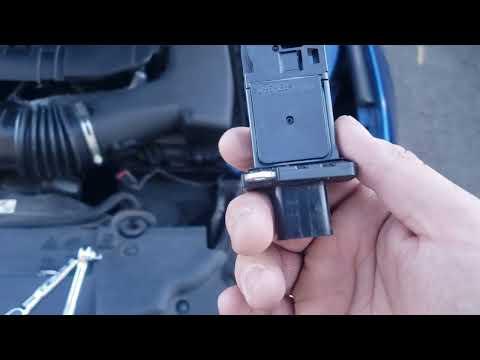

Step 4: Remove the Old MAF Sensor

• Use a Torx T20 screwdriver to remove the two small screws holding the MAF sensor to the intake tube.
• Keep the screws in a safe place if the new sensor does not include new screws.
• Pull the MAF sensor straight out of the intake tube.
• Cover the opening with a clean microfiber towel if you need to pause. This keeps dust out.

Step 5: Install the New MAF Sensor

• Remove the clean microfiber towel from the intake opening if used.
• Slide the new MAF sensor into the intake tube in the same orientation as the old one.
• Use a Torx T20 screwdriver to install the two screws by hand first so they do not cross-thread.
• Tighten the screws evenly until snug. Torque to 2 Nm (18 in-lbs).
• Tip: Small screws strip easily. Do not overtighten.

Step 6: Reconnect the Electrical Connector

• Push the electrical connector straight onto the new MAF sensor until it clicks.
• Lightly tug the connector by the plastic body to confirm it is locked in place.

Step 7: Reconnect the Battery

• Place the negative battery cable back onto the battery post.
• Use an 8mm socket and 1/4-inch drive ratchet to tighten the terminal clamp.
• Torque to 5 Nm (44 in-lbs).
• Make sure the terminal does not twist by hand after tightening.

Step 8: Start the Engine and Check Operation

• Start your Mustang and let it idle for 2-3 minutes.
• Listen for smooth idle and check that the intake tube is fully seated around the sensor area.
• If the engine idle is rough at first, let it run briefly while the engine computer relearns airflow readings.

---

✅ After Repair

• ✅ Take a short test drive with gentle acceleration first.
• 🔎 Recheck the MAF connector after the test drive to make sure it stayed locked.
• ⚠️ If the check engine light remains on, the stored fault code may need to be cleared with a scan tool.
• 🔁 Some idle relearn may happen automatically after a few drive cycles.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $70-$180 (parts only)

You Save: $110-$170 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.3-0.7 hours.

---
